Signal Direction is described from the BlueBox perspective.
Be aware that debug and trace signals from the Emulation adapter superset device are not
connected to the target board. They are exposed only to the connectors on the Emulation
adapter.
P3–P6: Emulation device pinout
Connectors P3, P4, P5 and P6 on the bottom side of the Emulation Adapter expose all emulation
device signals toward the Conversion board, through which the Emulation Adapter adapts to
different pin count packages.

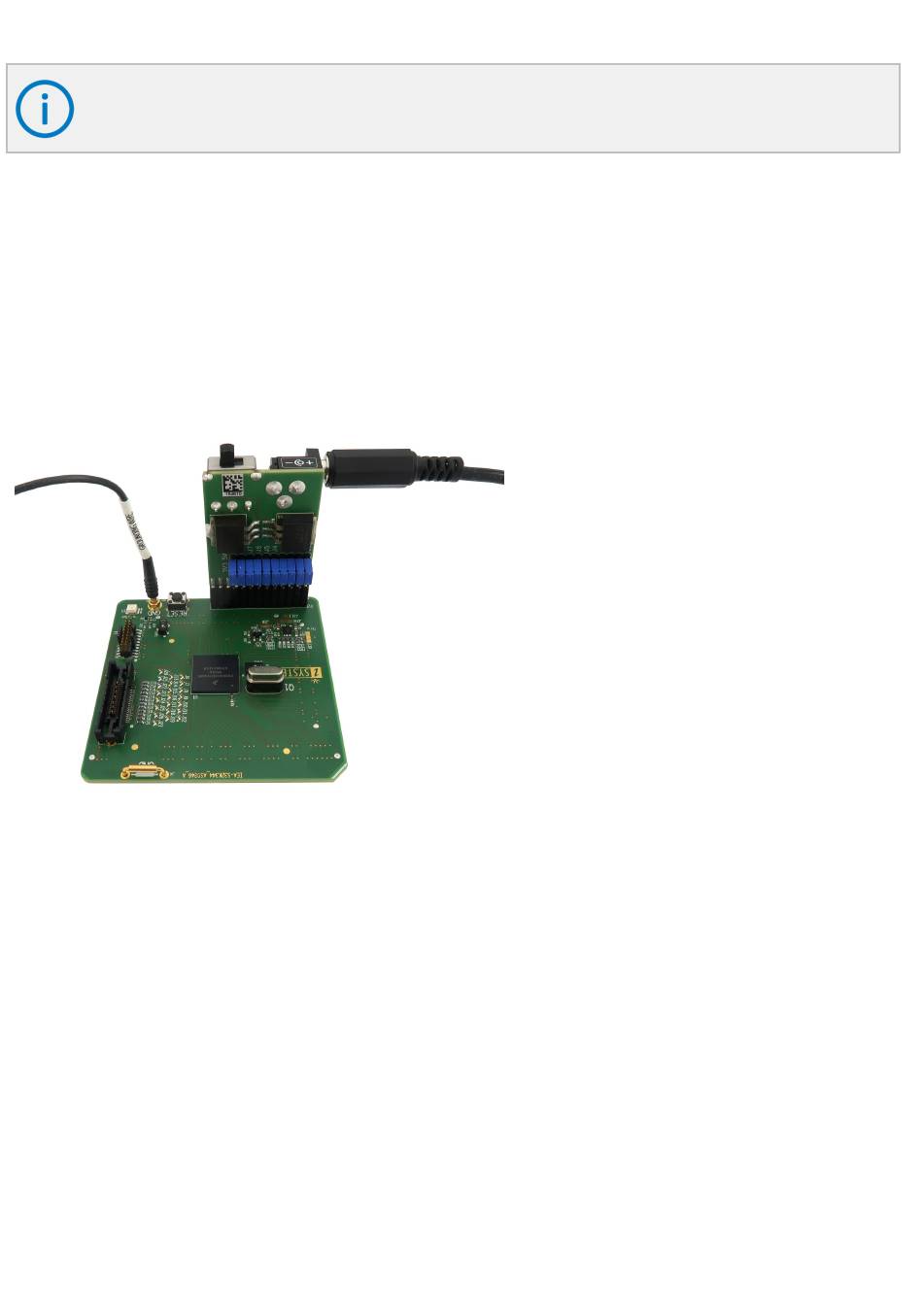

Standalone operation
The Emulation Adapter is delivered with all the components required for a Standalone operation.
Power supply
Use the enclosed IEA-PS Emulation Adapter Power converter and adapter.
A Power supply package, which is delivered with the Emulation Adapter, is required when:
The Emulation Adapter is used as a standalone device .
·
The target board doesn't provide an accurate supply voltage.
·
The target board doesn't provide sufficient current for the Emulation Adapter operation.
·
