- Page 1 INFINEON TC397XE EMULATION ADAPTER HARDWARE USER MANUAL V1.9, September 2024 www.tasking.com...
- Page 2 Use included power cord and power supply The enclosed power supply has been approved for use by TASKING. Please contact TASKING if you need to consider an alternative power.
-
Page 3: Table Of Contents
How to connect ..................... 8 Configuration ......................8 Connectors ......................11 Standalone operation ................... 12 Mechanical information .................. 14 Emulation Adapter ....................14 Solder part ......................14 Extender ......................15 Assembly ......................16 BGA ........................16 Accessories ....................17 User Notes ...................... 18 www.tasking.com... -
Page 4: Introduction

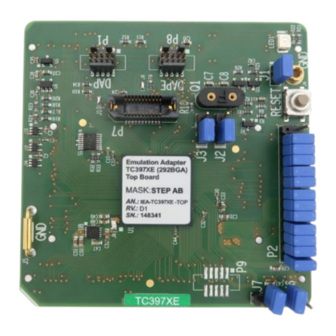

Introduction Infineon TC397XE Emulation Adapter is based on the 292-pin TC397XE superset device and provides full trace capabilities for the: · TC397Xx · TC387QP · TC3E7Qx devices, where the trace port is not available or lacks the full trace capability. -
Page 5: Package Content
Package content Infineon TC397XE Emulation Adapter is delivered with all the components required for a standalone operation. Target adaptation parts for the Target board adaptation must be ordered separately. Infineon TC397XE Power supply package Emulation Adapter with Infineon Microcontroller Power converter... -
Page 6: Options
Available Conversion boards, Solder parts and optional Extenders are listed in the table below. Conversion board Extender (optional) Solder part Package (Pitch) Type (Ordering code) (Ordering code) (Ordering code) TC397Xx BGA292 TC387QP IEA-TC397XE-TC397 IA292LFBGA-EXTENDER IA292LFBGA-SOLDER TC3E7Qx BGA adaptation Conversion board Extender (optional) Solder part www.tasking.com... -
Page 7: Measurement Board
MCU pins. It is delivered together with an Layout board (chip signals are clearly marked), which is placed over the Measurement board. Measurement board Layout board example for the Measurement board Ordering code: IAMTC397XE Not available in every Emulation Adapter or every MCU pin count. www.tasking.com... -
Page 8: Operation
If a different clock frequency is required, insert appropriate crystal into the Q1 socket and replace C7 (default 10pF populated) and C8 (default 10pF populated) accordingly. Crystal socket Q1 is by default not populated (NP). www.tasking.com... - Page 9 Setting the jumper when emulating the BGA device may prevent establishing a debug connection or, in the worst case, can damage the Target board. VAREF - If the target’s VAREF2 pin isn’t exposed, bridge the jumper J7 to connect VAREF1 from the target to power VAREF2 www.tasking.com...
- Page 10 Enclosed Power supply package (Power converter and Power adapter) simply plugs into the P2 header row, providing the necessary power supply for Emulation Adapter operation. LED1 indicates if power is supplied to the Emulation Adapter. Refer to the microcontroller documentation for more details about power voltage designations. www.tasking.com...
-
Page 11: Connectors
DAPE2 Optional 2nd Data Pin DAPEN/DAP Not Connected Optional 3rd Data Pin Ground Not Connected 10-pin DAPE pinout Signal Direction is described from the BlueBox perspective. BlueBox supporting Infineon DAPE debug and trace interface connects to the P8 connector. www.tasking.com... -
Page 12: Standalone Operation
The target board doesn’t provide sufficient current for the Emulation Adapter operation. The Power converter can supply either 3.3 V or 5 V. The array of jumpers J0–J9 selects 3.3 V or 5 V voltage on the P3 connector, which connects to the Emulation Adapter. www.tasking.com... - Page 13 If the target’s crystal circuit microcontroller oscillator (if available) is not an adequate clock source, insert appropriate crystal into the Q1 socket, replace the default 10pF C7 and C8 capacitors when necessary and place jumpers J2 and J3 in 2-3 position. www.tasking.com...
-
Page 14: Mechanical Information
Mechanical information Emulation Adapter Side view of the Emulation Adapter, one Extender and Solder part (each Extender adds approx. 3,25mm) Top view of the Top view of the Emulation Adapter Conversion board Unit (mm) Ordering code IEA-TC397XE IEA-TC397XE-TC397 www.tasking.com... -
Page 15: Solder Part
Top view of the Extender Unit (mm) Ordering code IA292LFBGA-EXTENDER 3.25 Solder part Side view of the Solder part Top view of the Solder part Unit (mm) Ordering code IA292LFBGA-SOLDER 3.12 To view Emulation Adapter schematics, use the short link isystem.com/schematics. www.tasking.com... -
Page 16: Assembly
Emulation Adapter. Keep the number of Extenders C at minimum since every Extender degrades the signal integrity of the electrical signals. 3. Assemble in order: Emulation Adapter F, optional Measurement board E, Conversion board D. 4. Connect Conversion board D to: · Solder part or · Extender www.tasking.com... -
Page 17: Accessories
Ordering Code Description IC71163-1 / IC57163-1 Infineon DAP/DAPE II Active Probe IC71164 / IC57164 Infineon AGBT Active Probe IC50163-2 10-pin 1.27 mm Infineon DAP2 Wide Debug Adapter IC70163 Infineon DAP 10-pin (1.27mm) More information about our products via sales@tasking.com. www.tasking.com... -
Page 18: User Notes
User Notes This page is intentionally left blank. www.tasking.com... - Page 19 This page is intentionally left blank. www.tasking.com...
- Page 20 Visit our website for: · Support - support.tasking.com · Getting started - isystem.com/start · Knowledge Base - kb.tasking.com www.tasking.com www.tasking.com...
