Mechanical information

Emulation Adapter

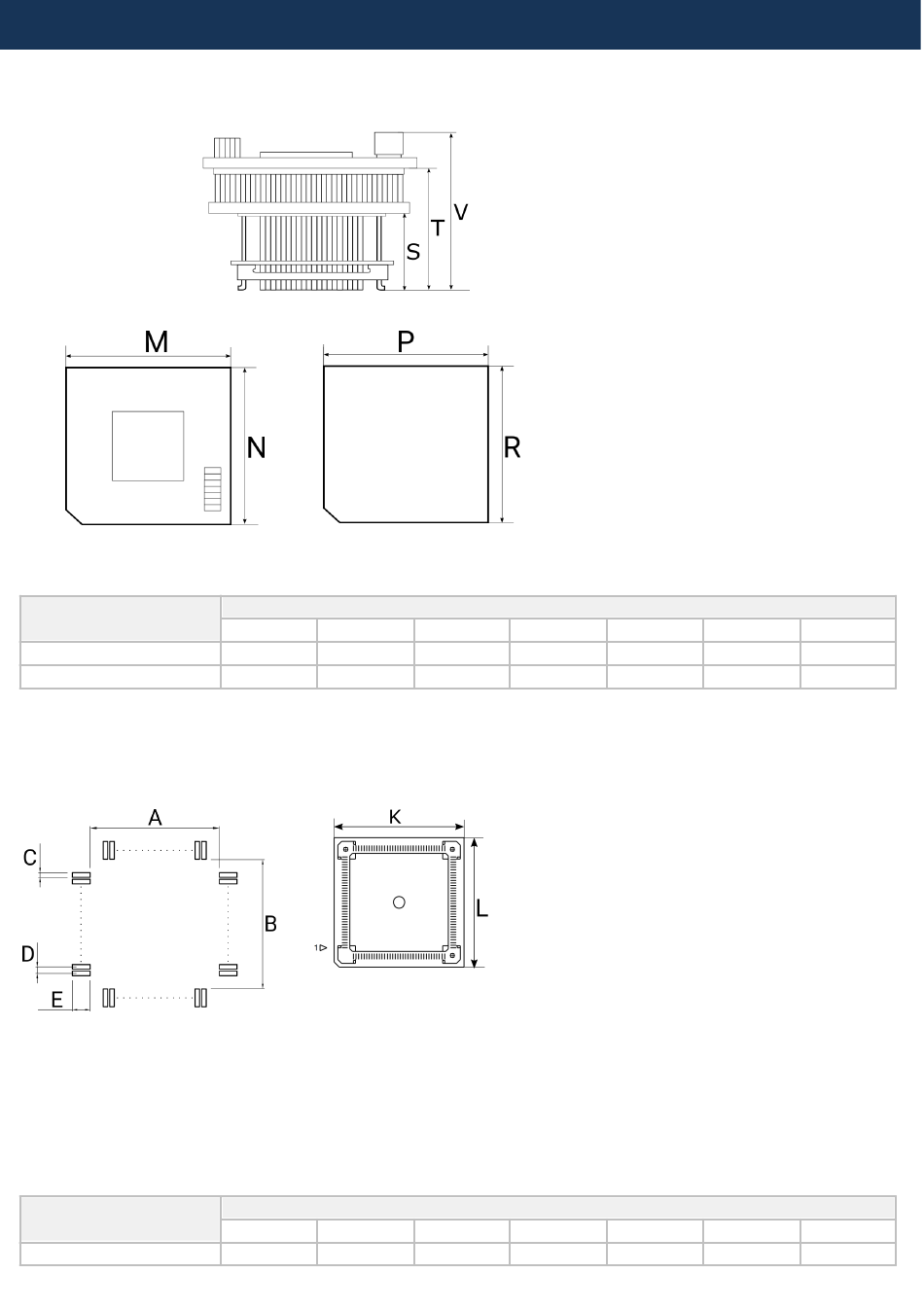

Side view of the Emulation adapter complete setup - QFP Fixed Adaptation
Top view of the Emulation
Adapter
Ordering code
IEA.S32K344
IEA-S32K344-xxxxx

Solder parts

QFP
Solder part Solder pad view
In the case of soldering the Solder part manually, it's highly recommended to prolong the solder pad
E on the outer side (e.g., for 1.5–2 mm) during the PCB design. Note that without this modification,
it's very difficult to solder the Solder part manually.
Recommended PCB footprint dimensions:
Ordering code
IA48TQ-SOLDER
Top view of the Conversion board
M N
70 70
Top view of the Solder part
A B
9 1.005
Unit (mm)
P R
70 70
Unit (mm)
C D
10 10
S T
32.6 36.4
E K
1.75 12
V
47.5
L
12
