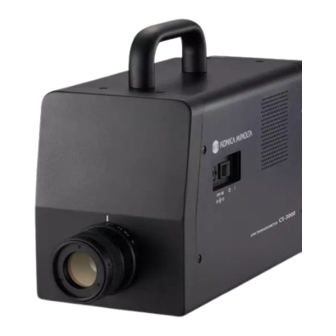

SPECTRORADIOMETER
CS-3000HDR / CS-3000 / CS-2000Plus
Instruction Manual
Please read before using
the instrument.

Advertisement

Table of Contents
loading

Related Manuals for Konica Minolta CS-3000HDR

Summary of Contents for Konica Minolta CS-3000HDR

  • Page 1 SPECTRORADIOMETER CS-3000HDR / CS-3000 / CS-2000Plus Instruction Manual Please read before using the instrument.

  • Page 2: Safety Symbols

    Denotes class II protection against electric shock. Notes on This Manual  Copying or reproduction of all or any part of the contents of this manual without KONICA MINOLTA’s permission is strictly prohibited.  The contents of this manual are subject to change without prior notice.
  • Page 3 Do not spill liquid on this instrument or drop metallic objects onto it. Doing so may cause fire or electric shock. Should either of these happen, immediately switch the power off and unplug the AC adapter, and then contact the nearest KONICA MINOLTA-authorized service facility.
  • Page 4 (Failure to adhere to the following points may result in injury or Caution damage to the instrument or other properties) Use the instrument near an AC outlet so that the AC adapter can be easily plugged and unplugged. Do not place the instrument on an unstable or sloping surface. Doing so may cause it to drop or overturn, resulting in injury.

  • Page 5: Introduction

    The limit of performance degradation when subjected to continuous disturbance during immunity testing is up to twice KONICA MINOLTA’s repeatability specifications (Lv, x, y).  Take care not to allow foreign substances like water and metal to penetrate the instrument.

  • Page 6: This Instrument

     Use the CS-2000Plus at an ambient temperature between 5 and 35ºC and relative humidity of 80% or less (at 35ºC) with no condensation. Use the CS-3000HDR/CS-3000 at an ambient temperature between 5 and 30ºC and relative humidity of 80% or less (at 30ºC) with no condensation. Operating the instrument outside the specified temperature and humidity ranges may impede its performance.

  • Page 7: Notes On Storage

     Should dirt or dust get on the lens, wipe it off with a dry and soft cloth or lens cleaning paper. Do not use an organic solvent, such as benzine or thinner, or any other chemical agent to clean it. Should the dirt be difficult to remove, please contact the nearest KONICA MINOLTA-authorized service facility. Notes on Transporting ...

  • Page 8: Table Of Contents

    Objective lens ............5 Setting of Synchronization ....31 Notes on Transporting ......5 Emission Frequency Detection and Setting Maintenance ..........5 Function (CS-3000HDR/CS-3000 only) ..34 Disposal Method ........5 Vertically Synchronized Signal Input Method ..........36 Standard Accessories ......8 Selecting Synchronous Frames .....
  • Page 9 Calibration........... 66 Setting Initialization ......101 Calibration Channels ......66 Main Specifications ......102 Checking Main Unit Information ... 68 Measurement Measurement ........70 Saving Measurement Values ....73 Confirming Memory Data ..... 76 Deleting Memory Data ......77 Communication Connecting to a PC .......

  • Page 10: Standard Accessories

    When shipped from the factory, this screw holds the focus adjustment ring in place. To move the focus adjustment ring, loosen this screw.  When storing the CS-3000HDR/CS-3000/CS-2000Plus in the Storage Case (optional accessory), remove this screw or position it so that it does not hit the packing material. ...

  • Page 11: Optional Accessories

    ND Eyepiece Filter (for high luminance) CS-A39  In particular, the CS-3000HDR has a measurement range on the high-luminance side that is 20 times wider than that of the CS-3000/CS-2000Plus, so when measuring a high-luminance object, be sure to place this filter in front of the finder.
  • Page 12 White Calibration Plate CS-A5 (without data) White Calibration Plate CS-A5 (with data) White Calibration Plate CS-A5 (with data and calibration certificate)  Used for measurement of object colors. Three types (named, not-named, named with calibration certificate) are prepared. Tripod CS-A3 Pan Head CS-A4 ...

  • Page 13: System Configuration

    System Configuration ND Eyepiece Filter Standard Accessories (for high luminance) Optional Accessories CS-A39 CS-3000HDR CS-3000 Calibration CS-2000Plus Certificate Lens Cap Main Unit ND Eyepiece Filter Screw for CS-A1 focus ring lock CS-A38 ND Filter CS-A40 (1/10) (1/100) CS-A41 CS-3000HDR SPECTRORADIOMETER...

  • Page 14: Names And Functions Of Parts

    Names and Functions of Parts Names of Each Part  CS-3000HDR/CS-3000/CS-2000Plus (8) Focus distance scale Handle (7) Focus adjustment ring (1) Power switch (2) AC adapter input terminal (6) Objective (15) Screw holes lens for fixing (9) LCD screen (11) Measurement...

  • Page 15: Functions Of Each Part

    Connects the RS-232C cable when connecting to a PC. …………… (p.83) (5) Measurement angle selector Selects measurement angle from among 1º, 0.2º and 0.1º. ……… (p.40) CS-2000Plus only. For the CS-3000HDR/CS-3000, the measurement angle is switched electrically according to the selection made on the MENU screen.

  • Page 16: Key Panel

    Key Panel Main Functions of Each Key (1) MENU key Switches to the MENU screen if pressed while the measurement value screen is displayed. (p.17) (2) SETTING INFO key Displays the current MEAS, OPTION, and SETUP settings if pressed while the measurement value screen is displayed.

  • Page 17: Diopter Adjustment

    Diopter Adjustment Rotate the finder’s diopter adjustment ring to adjust the diopter. Diopter adjustment ring Adjust so that A or B on the aperture (black circle indicating measurement area) looks clear when observing the measurement object through the finder. Adjustment is easier by starting at the measurement angle 1º, where the measurement object near the aperture looks blurred.

  • Page 18: Lcd Screen

    LCD Screen MEAS (Measurement Value) Screen “SNGL” is displayed for the Calibration channel (p.66) Currently selected measurement values obtained during single angle is displayed. (1°, 0.1°, measurement, while “CONT” 0.2°) (p.40) is displayed for the values obtained during continuous measurement. (p.70) M E A S S N G L U C 0 0...

  • Page 19: Menu Screen

    MENU Screen Switches to the MENU screen if MENU key is pressed while the measurement value screen is displayed.  MEAS Used to set measurement speed or synchronizing method. (p.26, 31)  MEMORY M E N U Used to read or delete the saved measurement MEAS values.

  • Page 21: Installation

    Installation...

  • Page 22: Installing

    Installing The screw holes for fixing at the bottom of this instrument can be used for mounting this instrument on a tripod or jig. The instrument has the following two types of holes. Tripod screw hole: Used to mount the instrument on a tripod. Use a tripod screw with top diameter of 3/8 inches and depth of 10.5 mm.

  • Page 23: Connecting Ac Adapter

    AC adapter without correction. Doing so may cause fire. In such situations, immediately switch the power off and unplug the AC adapter, and then contact the nearest KONICA MINOLTA-authorized service facility. Caution (Failure to adhere to following points may result in injury or damage to this instrument or other properties) Use the instrument near an AC outlet so that the AC adapter can be easily plugged and unplugged.

  • Page 24: Connection Method

    Connection Method Make sure that power switch is OFF (Slid to [O] side). Connect the AC adapter plug to the AC adapter input terminal of the main unit. Plug the AC adapter to the outlet (AC 100 V~ 50 Hz/60 Hz). Fully insert the AC adapter plug until it is securely seated in the AC outlet.

  • Page 25: Power Supply On ( | ) / Off (O)

    Slide power switch to ON ( | ) side.  The measurement screen appears about 5 to 15 seconds after the initial screen on the LCD.  The model type (CS-3000HDR/CS-3000 or CS-2000Plus) and main unit version are displayed on the initial screen.

  • Page 27: Setting

    Setting...

  • Page 28: Selecting Measurement Speed

    Selecting Measurement Speed Select measurement speed according to the purpose. The following seven modes are available for measurement speed. Example of Measurement Dark Operation description Features Cautions measurement speed measurement subjects In this mode, integration time [STANDARD Improved For low luminance measurement, Constant light adjusted between 0.005 and 92 DARK]...
  • Page 29 Operating Procedure 5, 6, 7 2, 3, 4 . Press MENU key when the MEAS screen M E A S S N G L U C 0 0 1˚ 49. 66 is displayed. 0 . 4045 The MENU screen appears on the LCD. When the backlight of the LCD has been turned off via 0 .
  • Page 30 IN-ND [AUTO], [OFF], [ONE] or [TWO] NORMAL A U T O * [TWO] can only be selected with CS-3000HDR. F A S T O F F If the “OVER” error message appears when set S U P E R - F A S T 1 O N E to [OFF], set IN-ND to [ONE] or [TWO].
  • Page 31 M E A S S P E E D MODE * [TWO] can only be selected with CS-3000HDR. M U L T I - I N T E G If the “OVER” error message appears when set I N T E G T I M E to [OFF], set IN-ND to [ONE] or [TWO].
  • Page 32 MANUAL or [ONE] / [TWO]. I N T E G T I M E [TWO] can only be selected with CS-3000HDR. 0 0 0 5 0 0 . 0 0 0 m s If the “OVER” error message appears when...

  • Page 33: Setting Of Synchronization

    [NO SYNC] mode without synchronized measurement, and to select the [MULTI INTEG-NORMAL] mode or the [MULTI INTEG-FAST] mode for the measurement speed (refer to p.26). * CS-3000HDR and CS-3000 have a function that detects the display’s emission frequency and sets synchronized measurement. (See p.34)
  • Page 34 M E N U M E A S Press either key to select [MEAS] S P E E D NORMAL and then press ENTER key. S Y N C NO SYNC The MENU - MEAS screen appears on the LCD. S Y N C F R A M E DOUBLE FRAME The current set contents are displayed in the [SYNC]...
  • Page 35 -a-4. Repeat the procedures -a-2. and -3. for the required number of digits. -a-5. Press ENTER key. When the setting is confirmed, the MENU - MEAS - SYNC MODE screen appears again on the LCD. -a-6. Press ESC key. When the synchronization method is set, the MENU-MEAS screen appears again on the LCD.

  • Page 36: Emission Frequency Detection And Setting Function (Cs-3000Hdr/Cs-3000 Only)

    Emission Frequency Detection and Setting Function (CS-3000HDR/CS- 3000 only) This function can detect the emission frequency of the display device. Importing the detected frequency into the synchronized measurement [INT SYNC] prevents lower repeatability caused by synchronization shifts. * Detectable range: Luminance of 10 to 5,000 cd/m and emission frequency of 10 to 200 Hz.
  • Page 37 M E N U M E A S . Press either key to select [SYNC] SYNC MODE and then press ENTER key. SYNC I N T SYNC The MENU - MEAS - SYNC MODE screen appears on E X T SYNC the LCD.

  • Page 38: Vertically Synchronized Signal Input Method

    Vertically Synchronized Signal Input Method Vertically synchronized signal is input externally and the frequency is detected by the main unit to perform external sync measurement. The vertically synchronized signal output from the measurement object is input to the main unit via a BNC cable.
  • Page 39 M E N U S E T U P . Press either key to select [EXT E X T V O L T A G E VOLTAGE] and then press ENTER key. The MENU - SETUP - EXT VOLTAGE screen appears 3 .

  • Page 40: Selecting Synchronous Frames

    Selecting Synchronous Frames In synchronized measurement, synchronous frames can be selected from “SINGLE FRAME” or “DOUBLE FRAME.” In the case of “SINGLE FRAME,” synchronized measurement is performed with the vertical scan signal period as one cycle. In the case of “DOUBLE FRAME,” synchronized measurement is performed with one cycle being twice the vertical scan signal cycle.
  • Page 41 M E N U M E A S . Press either key to select [SYNC SYNC FRAME S P E E D NORMAL FRAME] and then press ENTER key. S I N G L E F R A M E S Y N C INT SYNC D O U B L E F R A M E...

  • Page 42: Selecting Measurement Angle

    The measurement angle can be selected from 1°, 0.2°, or 0.1°. For the CS-3000HDR/CS-3000, the measurement angle is switched electrically according to the selec- tion made on the MENU screen. Motor noise may be heard when switching the measurement angle, but this is not abnormal.
  • Page 43 M E N U M E A S . Press either key to select [MEAS] S P E E D NORMAL and then press ENTER key. S Y N C INT SYNC The MENU - MEAS screen appears on the LCD. S Y N C F R A M E DOUBLE FRAME The current set contents are displayed in the [ANGLE]...

  • Page 44: Selecting Color Matching Functions

    Selecting Color Matching Functions Select the color matching function (CMF) to be used in the chromaticity calculation. * Setting color matching function : CIE1931 (2°), CIE1964 (10°), CIE170-2:2015 (PA2°), CIE170-2:2015 (PA10°) * Factory default setting : CIE1931 (2°) Operating Procedure 6, 7 2, 3, 4, 5 M E A S...
  • Page 45 M E N U S E T U P . Press either key to select [2°] / [10°] / [PA2] / [PA10]. CIE 1931 2˚ CIE 1964 10˚ CIE 170-2 2˚ CIE 170-2 10˚ . Press ENTER key. When the color matching function is set, the MENU - Setup screen appears again on the LCD.

  • Page 46: Selecting Display Format

    Selecting Display Format The formats for indicating the luminance and excitation values X, Y and Z can be selected as either normal indication to display the values to four places of decimals, or as index number indication. If the measurement values on the LCD are unreadable, use the index number indication. * Display format setting: Normal, Index * Factory default setting: ****.**** [F]...
  • Page 47 M E N U S E T U P . Press either key to select [DATA DATA FORM FORM] and then press ENTER key. **** **** **** The MENU - SETUP - DATA FORM (for selection of data format) screen appears on the LCD. M E N U S E T U P .

  • Page 48: Process Settings For Negative Spectral Radiance Values

    Process Settings for Negative Spectral Radiance Values Depending on the measurement, the spectral radiance may be a negative value. You can select from the following two types of processing when a negative value is generated. • NO PROC: Process as negative value •...
  • Page 49 M E N U O P T I O N . Press either key to select NEGATIVE VALUE CHANGE TO ZERO [NEGATIVE VALUE] and then press NO PROCESS ENTER key. The MENU - OPTION - NEGATIVE VALUE screen appears on the LCD. M E N U O P T I O N .

  • Page 50: Selecting Color Space

    Selecting Color Space See the below table for available color space. * Factory default setting : L LCD screen Color space Display description (When Normal is selected (When Index is selected for for display format) display format) xy*1 Displays and outputs in M E A S S N G L M E A S...
  • Page 51 *1 Y is displayed instead of L when color matching function is other than CIE1931 (2°). *2 For non-spectral colors, the complementary wavelength will be displayed. The display indication will remain λd. * If the calculated value does not establish a proper combination with the value in the color space mode, “_ _ _ _ _ _ _ _”...

  • Page 52: Using The Closeup Lens

    Using the Closeup Lens Use the closeup lens in the optional accessories to measure microscopic surfaces. For instructions on how to attach the closeup lens, refer to the instruction manual for the closeup lens. If the closeup lens is attached, the measurement value must be compensated for the lens transmittance. This compensation coefficient is included with the closeup lens.
  • Page 53 M E N U O P T I O N . Press either key to select [CLOSE CLOSE UP UP] and then press ENTER key. The MENU - OPTION - CLOSE UP (for selection of [OFF] / [ON]) screen appears on the LCD.

  • Page 54: Using The Nd Filter

    Using the ND Filter Use the ND filter in the optional accessories to measure high-luminance objects. If the ND filter is attached, the measurement value must be compensated for the filter transmittance. This compensation coefficient is attached to the ND filter. After setting up the instrument using the CS-S30 software for spectroradiometers that comes standard with the instrument, an ND filter can be selected as an accessory to obtain measurement values corrected by the correction coefficient.
  • Page 55 M E N U O P T I O N . Press either key to select [EXT- EXT-ND ND] and then press ENTER key. EXT-ND10 The MENU - OPTION - EXT-ND (for selection of ND EXT-ND100 Filter) screen appears on the LCD. M E N U O P T I O N .

  • Page 56: Using The Illuminance Adapter

    Setting the wrong illuminance adapter will lead to inaccurate measurement. Moreover, do not use the illuminance adapter together with the closeup lens or ND filter. as this will lead to inaccurate measurement. Measurement illuminance range (in light source A spectrum) Measurement CS-3000HDR CS-3000 CS-2000Plus angle 1°...
  • Page 57 M E N U O P T I O N . Press either key to select ILLUMINANCE [ILLUMINANCE] and then press ENTER key. The MENU - OPTION - ILLUMINANCE screen appears on the LCD. M E N U O P T I O N NEGATIVE VALUE ILLUMINANCE .

  • Page 58: Backlight On/Off During Measurement

    Backlight ON/OFF During Measurement The LCD backlight can be selectively turned on or off during measurement. Turning off the backlight can avoid LCD backlight reflection on the surrounding area during measurement, which affects the measurement value. When pressing the BACKLIGHT key to turn off the backlight, it is turned off irrespective of the following setting.
  • Page 59 M E N U S E T U P . Press either key to select B A C K L I G H T @ M E A S [BACKLIGHT@MEAS] and then press ENTER key. The MENU - SETUP - BACKLIGHT@MEAS (to turn backlight on/off during measurement) screen appears on the LCD.

  • Page 60: Baud Rate Selection For Rs-232C Communication

    Baud Rate Selection for RS-232C Communication The baud rate when connecting to a PC via RS-232C can be set as desired. * Baud rate : 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 * Factory default setting : 115200 Memo This operation is not necessary when connecting to a PC via USB.
  • Page 61 M E N U S E T U P . Press either key to select [ R S - 2 3 2 C B A U D R A T E ] and then press ENTER 232C BAUDRATE BAUDRATE key. 115200bps The MENU - SETUP - RS-232C BAUDRATE (for selection of RS-232C communication baud rate)

  • Page 62: Setting Rs-232C Power Supply

    Setting RS-232C Power Supply Power can be supplied (DC 6 V) to devices connected to the RS-232C terminal of this instrument. The RS-232C to Bluetooth conversion adapter is used, for example, to connect this instrument to a Bluetooth-enabled PC. Do not enable power supply unless you are connecting a device that requires power supply. * Factory default setting: OFF Operating Procedure 6, 7...
  • Page 63 M E N U S E T U P . Press either key to select [RS- R S - P O W E R S U P P L Y POWER SUPPLY] and then press ENTER Supplies 6V key. The MENU - SETUP - RS-POWER SUPPLY screen appears on the LCD.

  • Page 64: Setting Internal Clock

    Setting Internal Clock This instrument has an internal clock that records the date and time of measurements. Check the date and time, and if there is a discrepancy, enter the correct date and time. The date display format can also be changed.
  • Page 65 M E N U S E T U P -a-2. Press either key to move the D A T E T I M E cursor. YYYY / MM / Press either key to set date 2022 / 10 / and then press ENTER key. 17 : 12 : Press...

  • Page 66: Setting Periodic Calibration Reminders

    Setting Periodic Calibration Reminders Periodic calibration (once a year) maintains high measurement accuracy. When the periodic calibration deadline approaches, a caution message reminding the user of the periodic calibration can be displayed at the startup of the instrument. If the reminder setting is set to [ON], a warning message will be displayed at startup when 11 months have passed since the starting point date.
  • Page 67 M E N U S E T U P . Press either key to select [CAL C A L R E M I N D I N G REMINDING] and then press ENTER key. The MENU - SETUP - CAL REMINDING screen appears on the LCD.

  • Page 68: Calibration

    Calibration Channels This instrument includes 11 calibration channels from Ch00 to Ch10. Ch00 is for measurement based upon KONICA MINOLTA’s calibration standard. Its calibration correction coefficient has been set and is unchangeable. The following contents can be set to Ch01 to Ch10 respectively using CS-S30 software for spectroradi- ometers included in the instrument’s standard accessories.
  • Page 69 M E N U O P T I O N . Press either key to select N E G A T I V E V A L U E [OPTION] and then press ENTER key. N O P R O C U S E R C A L O F F The MENU - OPTION screen appears on the LCD.

  • Page 70: Checking Main Unit Information

    Checking Main Unit Information Instrument information such as product name, main unit version, and serial number can be checked. Operating Procedure 3, 4 M E A S S N G L U C 0 0 1˚ . Press MENU key when the MEAS screen is displayed.
  • Page 71 Measurement...

  • Page 72: Measurement

    Measurement Operating Procedure 2, 5 1, 4 (CS-2000Plus only) Decide whether to attach an optional accessory or not depending on the object to be measured and details of the desired measurement. The measurement angle is set to 1°, 0.2°, or 0.1°...
  • Page 73 Rotate the focus adjustment ring on the objective lens to adjust the focus. To rotate the focus adjustment ring, loosen the screw fixing the objective lens. Adjust so that the image of the object around the aperture looks clear when observing the measurement object through the finder.
  • Page 74 [Continuous Measurement] Display during measurement (Continuous measurement / When the measurement button is pressed and held when measurement time is long) for two or more seconds, continuous measurement is M E A S C O N T U C 0 0 1˚...

  • Page 75: Saving Measurement Values

    Saving Measurement Values This instrument can save 100 measurement values with designated numbers from 00 to 99. Operating Procedure 2, 3 . When the MEAS screen is displayed, M E M O R Y MEASURE c d m 54.22 press MEMORY key to switch 0.4045 0.4073 to the MEMORY screen.
  • Page 76 Follow the procedure below to display the memory data properties (measurement conditions). Operating Procedure 5, 6, 7 2, 3, 4 . Press MENU key when the MEAS screen M E A S S N G L U C 0 0 1˚...
  • Page 77 . To display the memory data for another M E N U M E M O R Y P R O P E R T I E S number, press either key to M E M O R Y 1 0 change the memory data number.

  • Page 78: Confirming Memory Data

    Confirming Memory Data Follow the procedure below to confirm the saved measurement values. Operating Procedure When the MEAS screen is displayed, M E M O R Y MEASURE c d m 54.22 press MEMORY key to switch to the 0.4045 0.4073 MEMORY screen.

  • Page 79: Deleting Memory Data

    Deleting Memory Data Follow the procedure below to delete the saved measurement values. Operating Procedure 5, 6, 7, 8 2, 3, 4, 5 Press MENU key when the MEAS screen M E A S S N G L U C 0 0 1˚...
  • Page 80 Press either key to select M E N U M E M O R Y M E M . D E L E T E the number of the memory data to be M E M . D A T A N O . 1 0 deleted.
  • Page 81 When collectively deleting all memory data: M E N U M E M O R Y M E M . D E L E T E -b-1. Select [ALL] and press ENTER key. M E M . D A T A A L L The MENU - MEMORY - MEM.DELETE - DELETE (for confirming deletion)
  • Page 83 Communication...

  • Page 84: Connecting To A Pc

    Connecting to a PC This instrument can be used together with a PC for mutual communication. To communicate with a PC, use the included USB cable (2 m) CS-A32 or an optional RS-232C cable (IF-A37/38). Memo Simultaneous use of USB communication and RS communication is not possible. Connection via USB cable The USB cable can be plugged/unplugged while power is on, but it is recommended to switch power off in this case.

  • Page 85: Connection Via Rs-232C Cable

    Connection via RS-232C cable Before setting the power switch to ON ( | ), connect an RS-232C cable (9-pin D-sub) to the RS-232C connector on the instrument. The RS-232C connector on the instrument is a 9-pin D-sub male connector. Use a cross cable for the connector.

  • Page 86: Connection Via Rs-232C Bluetooth Conversion Adapter

    Connection via RS-232C Bluetooth Conversion Adapter By using the commercially-available RS-232C Bluetooth conversion adapter, the instrument can be connected to a Bluetooth-enabled PC. Before setting the power switch to ON ( | ), connect an RS-232C Bluetooth conversion adapter (9-pin D-sub) to the RS-232C connector.

  • Page 87: Remote Mode

    If you want to use an independent program on a PC to control this instrument, download Communication Specifications from KONICA MINOLTA’s website at URL below for your reference: https: //www.konicaminolta.jp/instruments/support/download/index.html (The above URL is subject to change without notice.) (If the target page does not appear, please search the site by keywords, “CS-3000”...

  • Page 89: Explanation

    Explanation...

  • Page 90: Measurement Principles

    Measurement Principles Light energy passes through the objective lens. The lights from the measurement area pass through the hole in the center of the aperture mirror to the optical fiber, while the remaining light is guided to the finder optics by the aperture mirror. As a result, the part equivalent to the measurement area looks like a black circle when observed through the finder.

  • Page 91: Dark Measurement

    Dark Measurement Each measurement consists of “light measurement” and “dark measurement.” “Light measurement” is performed with light from the object irradiating the sensor, while “dark measurement” is performed with no light from the object irradiating the sensor to measure dark current.

  • Page 92: Performing Dark Measurement

    Performing Dark Measurement Operating Procedure 4, 5 M E A S S N G L U C 0 0 1˚ . Press MENU key when the MEAS screen is displayed. The MENU screen appears on the LCD. When the backlight of the LCD has been turned off via BACKLIGHT key on the MEAS screen, the backlight is turned on.

  • Page 93: Lvtcpδuv

    LvTcpΔuv Δuv as color space of this The following factors can be acquired as measurement value with L instrument. : Luminance : Correlated color temperature Δuv : Color difference from black body locus Δuv, while L and Δuv stand for color. In L stands for luminance, T <Relation between correlated color temperature T...

  • Page 94: Dominant Wavelength/Excitation Purity

    Dominant Wavelength/Excitation Purity In the x, y chromaticity diagram shown below, the curve VS SR is the spectrum locus, and point N is the white point. Colors located in the region enclosed by the spectrum locus and the straight lines VN and NR are referred to as spectral colors;...

  • Page 95: Dimensions

    Dimensions l CS-3000HDR (Unit: mm) Filter screw diameter ø52 58.5 M5 mounting M5 mounting screw screw Tripod screw (3/8 inch) Measurement Depth: 10.5 mm Depth:6.5 mm Depth: 6.5 mm distance ø15 reference 95.7 229.5 Optical axis Positioning pin hole 2...
  • Page 96 l CS-3000 (Unit: mm) Filter screw 120.5 diameter ø52 58.5 M5 mounting M5 mounting Measurement screw Tripod screw (3/8 inch) screw distance Depth:6.5 mm Depth: 10.5 mm Depth: 6.5 mm reference ø15 95.7 229.5 Optical axis Positioning pin hole 1 Positioning pin hole 2 ø5 mm depth: 4 mm Depth: 4 mm...
  • Page 97 l CS-2000Plus (Unit: mm) Filter screw diameter ø52 120.5 58.5 M5 mounting M5 mounting Measurement screw Tripod screw (3/8 inch) screw distance Depth: 6.5 mm Depth: 10.5 mm Depth: 6.5 mm reference ø15 95.7 229.5 Optical axis Positioning pin hole 2 Positioning pin hole 1 Depth: 4 mm ø5 mm depth: 4 mm...

  • Page 98: Error Messages

    Error Messages Error messages appear on the LCD when this instrument does not operate normally. The table below shows the types of error message, meanings (descriptions), and corrective actions respectively. Error message Cause (details) Corrective action OVER Luminance of measuring object •...

  • Page 99: Caution Messages

    Error message Cause (details) Corrective action MEMORY ERROR There was an error in writing/ • Switch off the power and turn it on again. reading data to/from memory. • If the symptoms are not remedied, please contact the nearest KONICA MINOLTA-authorized service facility.

  • Page 100: Error Check

    Should any errors be found in the instrument, try the corrective actions shown in the following table. If this does not help, it is possible the instrument is broken. Please contact the nearest KONICA MINOLTA- authorized service facility with the error number and the version of your instrument. See p.90 for details about how to confirm the instrument version.
  • Page 101 Error Reference Symptom Item to check Corrective action page Measurement values are Is the measuring object Conduct measurement while the — inconsistent. stable? measuring object is stable. Is the measuring object of Repeatability of x, y worsens if the low luminance? measuring object of low luminance is measured.
  • Page 102 Error Reference Symptom Item to check Corrective action page Actual measurement time The displayed measurement time is the is different from the remaining time. The actual displayed measurement measurement time may be different time. from the displayed time depending on the mode setting of measurement time.

  • Page 103: Setting Initialization

    Setting Initialization The set measurement conditions can be initialized to the factory default settings by following the procedure below. * Factory default setting: * Synchronization method : INT SYNC 59.94 Hz * Measurement speed : NORMAL CIE1931 (2°) * Color matching function : IN-ND: AUTO * Color space mode * Display Format...

  • Page 104: Main Specifications

    *2: Average value of 10 measurements in the NORMAL mode, at temperature of 23°C ± 2°C and maximum relative humidity of 65%. *3: When the USB cable is connected. Excluding the time required for display and shutter opening/closing. In an environment designated by KONICA MINOLTA such as a PC.
  • Page 105 *2: Average value of 10 measurements in the NORMAL mode, at temperature of 23°C ± 2°C and maximum relative humidity of 65%. *3: When the USB cable is connected. Excluding the time required for display and shutter opening/closing. In an environment designated by KONICA MINOLTA such as a PC.
  • Page 106 *2: Average value of 10 measurements in the NORMAL mode, at temperature of 23°C ± 2°C and maximum relative humidity of 65%. *3: When the USB cable is connected. Excluding the time required for display and shutter opening/closing. In an environment designated by KONICA MINOLTA such as a PC.
  • Page 107 < CAUTION > • KONICA MINOLTA WILL NOT BE LIABLE FOR ANY DAMAGES RESULTING FROM THE MISUSE, MISHANDLING, UNAUTHORIZED MODIFICATION, ETC. OF THIS PRODUCT, OR FOR ANY INDIRECT OR INCIDENTAL DAMAGES (INCLUDING BUT NOT LIMITED TO LOSS OF BUSINESS PROFITS, INTERRUPTION OF...
  • Page 108 ©2023 KONICA MINOLTA, INC. 9222-ADPN-11 CDHADA...
