Page 2

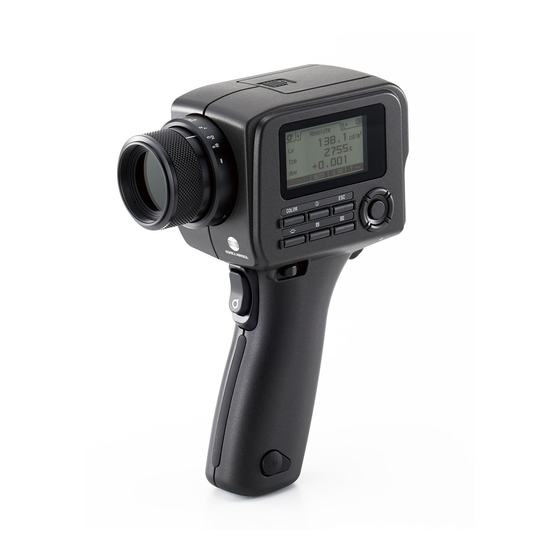

1. Install the CS-150 device driver. You may need to contact Konica Minolta support to obtain this device driver. 2. Connect the CS-150 to a computer USB port with the supplied T-A15 USB cable. 3. Check Windows Device Manager to see that the device is working properly with Windows.
Page 3
Figure 1. CalMAN Find Meters dialog, for selecting options for a meter search. CalMAN Meter Settings Meter Mode Because the CS-150 sensors have spectral responses that very closely match the human visual system CIE 1931 color-matching functions to closely correlate with visual evaluation, there are not separate meter modes for different display types.
Page 4
Meter Modes that is used for all display types. Meter Exposure Mode The CS-150 provides Fast and Slow meter exposure modes, as well as an Auto mode that automatically sets the measurement integration time, according to the measured luminance. The User Mode allows you to manually select the exposure time through the CS-150 meter menu.
Page 5
CalMAN Setup Guide: Konica Minolta CS-150 Figure 3. CalMAN Meter Settings tab, showing the options available for Standard Exposure Mode.
Page 6
CalMAN Setup Guide: Konica Minolta CS-150 About / Contact About Portrait Displays Portrait Displays, Inc., since 1993, is a leading application software provider (ASP) for PC, smartphone, and tablet displays. The Portrait Displays team now includes SpectraCal, the world’s leading provider of video display calibration software.
