Panel Description; Command Microphone - Icom IC-M510BB Instruction Manual

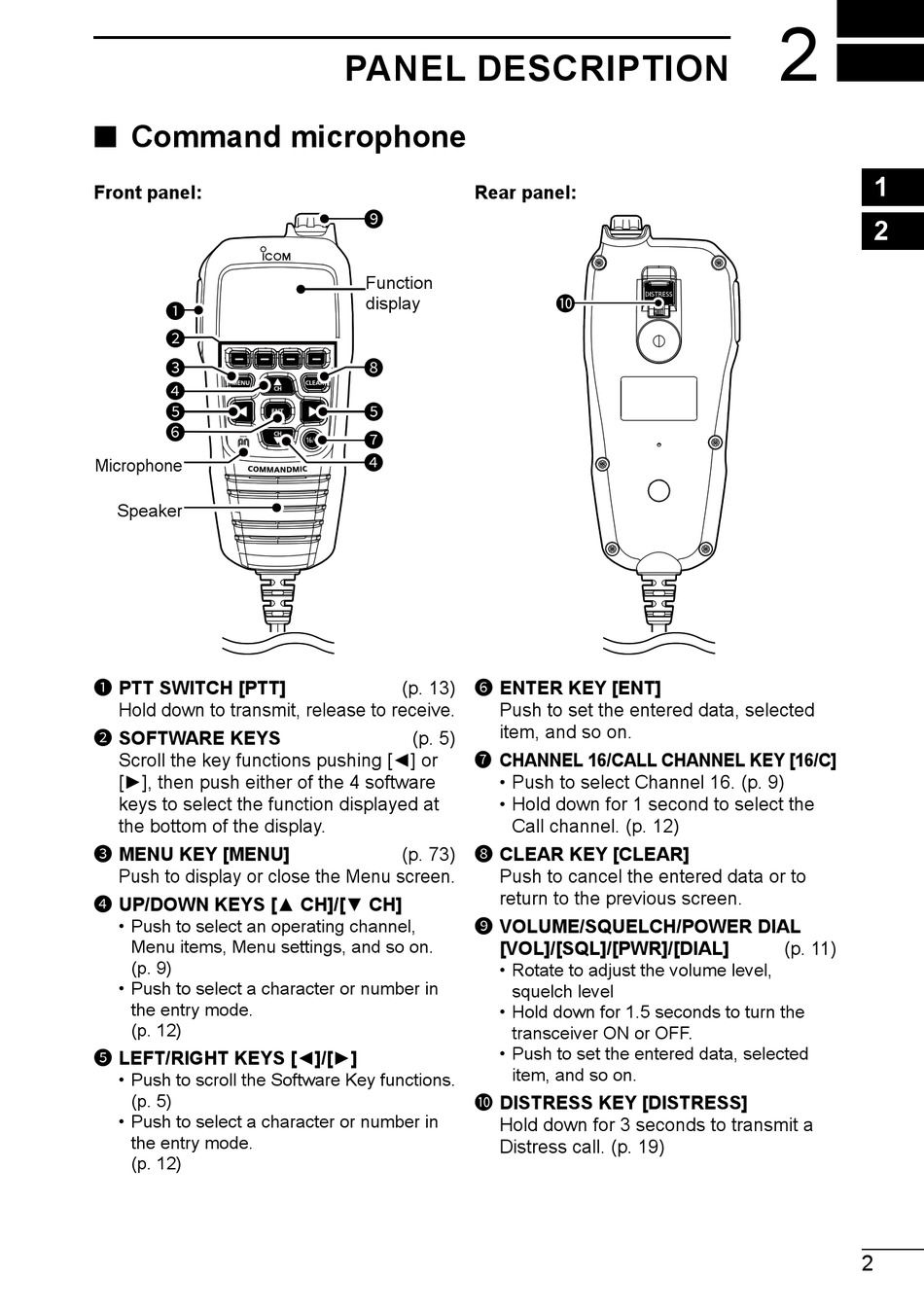

■ Command microphone

Front panel:
1
2
3
4
5
6
Microphone
Speaker
1 PTT SWITCH [PTT]
Hold down to transmit, release to receive.
2 SOFTWARE KEYS
S croll the key functions pushing [◄] or
[►], then push either of the 4 software
keys to select the function displayed at
the bottom of the display.
3 MENU KEY [MENU]
Push to display or close the Menu screen.
4 UP/DOWN KEYS [▲ CH]/[▼ CH]
• Push to select an operating channel,
Menu items, Menu settings, and so on.
(p. 9)
• Push to select a character or number in
the entry mode.
(p. 12)
5 LEFT/RIGHT KEYS [◄]/[►]
• Push to scroll the Software Key functions.
(p. 5)
• Push to select a character or number in
the entry mode.
(p. 12)

PANEL DESCRIPTION

Rear panel:
9
Function
display
8
5
7
4
6 ENTER KEY [ENT]
(p. 13)
Push to set the entered data, selected
item, and so on.
(p. 5)
7 CHANNEL 16/CALL CHANNEL KEY [16/C]
• Push to select Channel 16. (p. 9)
• Hold down for 1 second to select the
Call channel. (p. 12)
(p. 73) 8 CLEAR KEY [CLEAR]
Push to cancel the entered data or to
return to the previous screen.
9 VOLUME/SQUELCH/POWER DIAL
[VOL]/[SQL]/[PWR]/[DIAL]
• Rotate to adjust the volume level,
squelch level
• Hold down for 1.5 seconds to turn the
transceiver ON or OFF.
• Push to set the entered data, selected
item, and so on.
10 DISTRESS KEY [DISTRESS]
Hold down for 3 seconds to transmit a
Distress call. (p. 19)
10
2
1
2
(p. 11)
2
