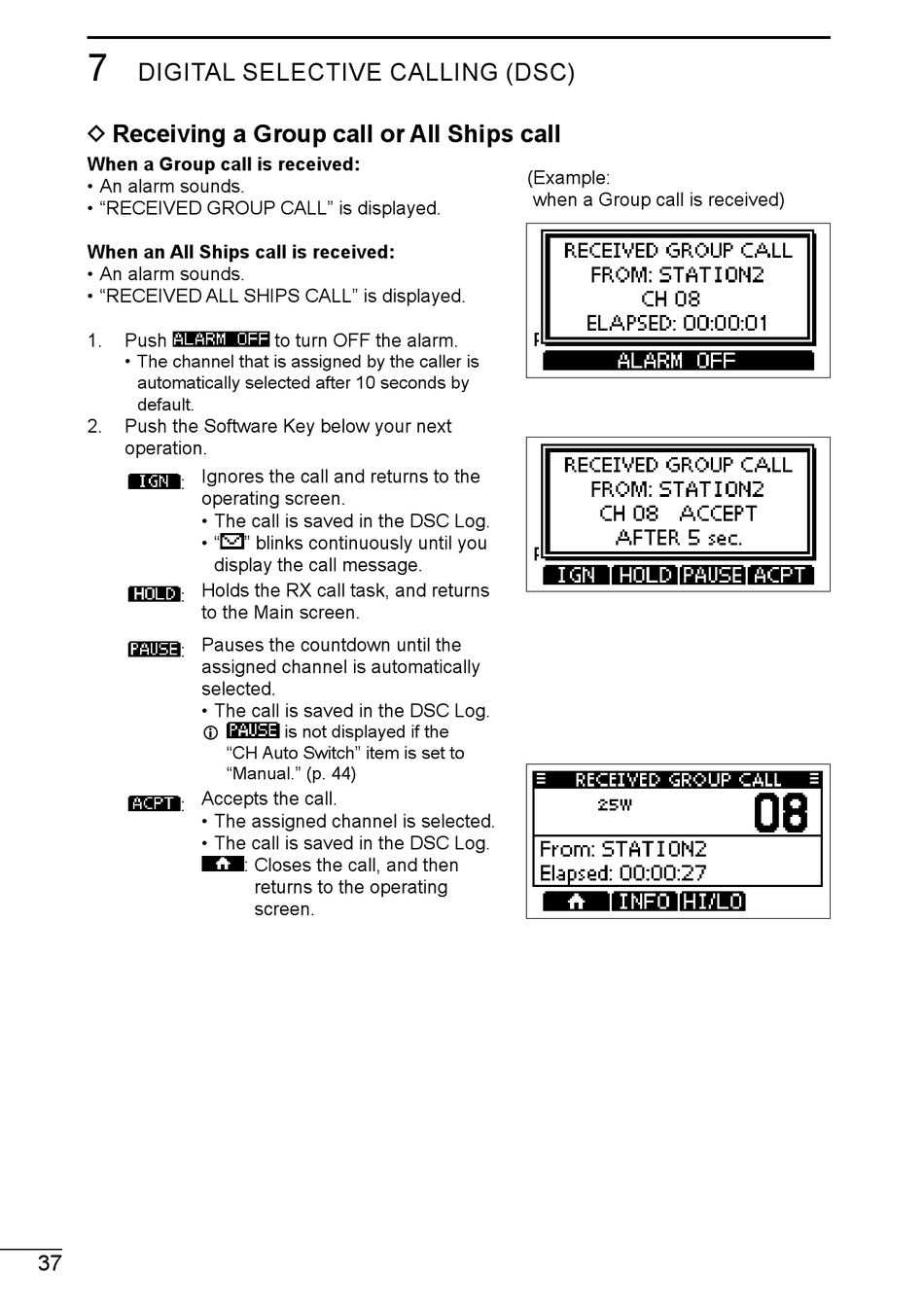

Icom IC-M510BB Instruction Manual page 50

7
DIGITAL SELECTIVE CALLING (DSC)
D Receiving a Group call or All Ships call
When a Group call is received:
• An alarm sounds.
• "RECEIVED GROUP CALL" is displayed.
When an All Ships call is received:
• An alarm sounds.
• "RECEIVED ALL SHIPS CALL" is displayed.
1. Push
• The channel that is assigned by the caller is
automatically selected after 10 seconds by
default.
2. Push the Software Key below your next
operation.
: Ignores the call and returns to the
operating screen.
• The call is saved in the DSC Log.
• "
Holds the RX call task, and returns
:
to the Main screen.
: Pauses the countdown until the
assigned channel is automatically
selected.
• The call is saved in the DSC Log.
L
: Accepts the call.
• The assigned channel is selected.
• The call is saved in the DSC Log.
37
to turn OFF the alarm.
" blinks continuously until you
display the call message.
is not displayed if the
"CH Auto Switch" item is set to
"Manual." (p. 44)
: Closes the call, and then
returns to the operating
screen.
( Example:
when a Group call is received)
