Hardware layout and configuration
UM2248
6.1
STM32L4R9I-EVAL main board views

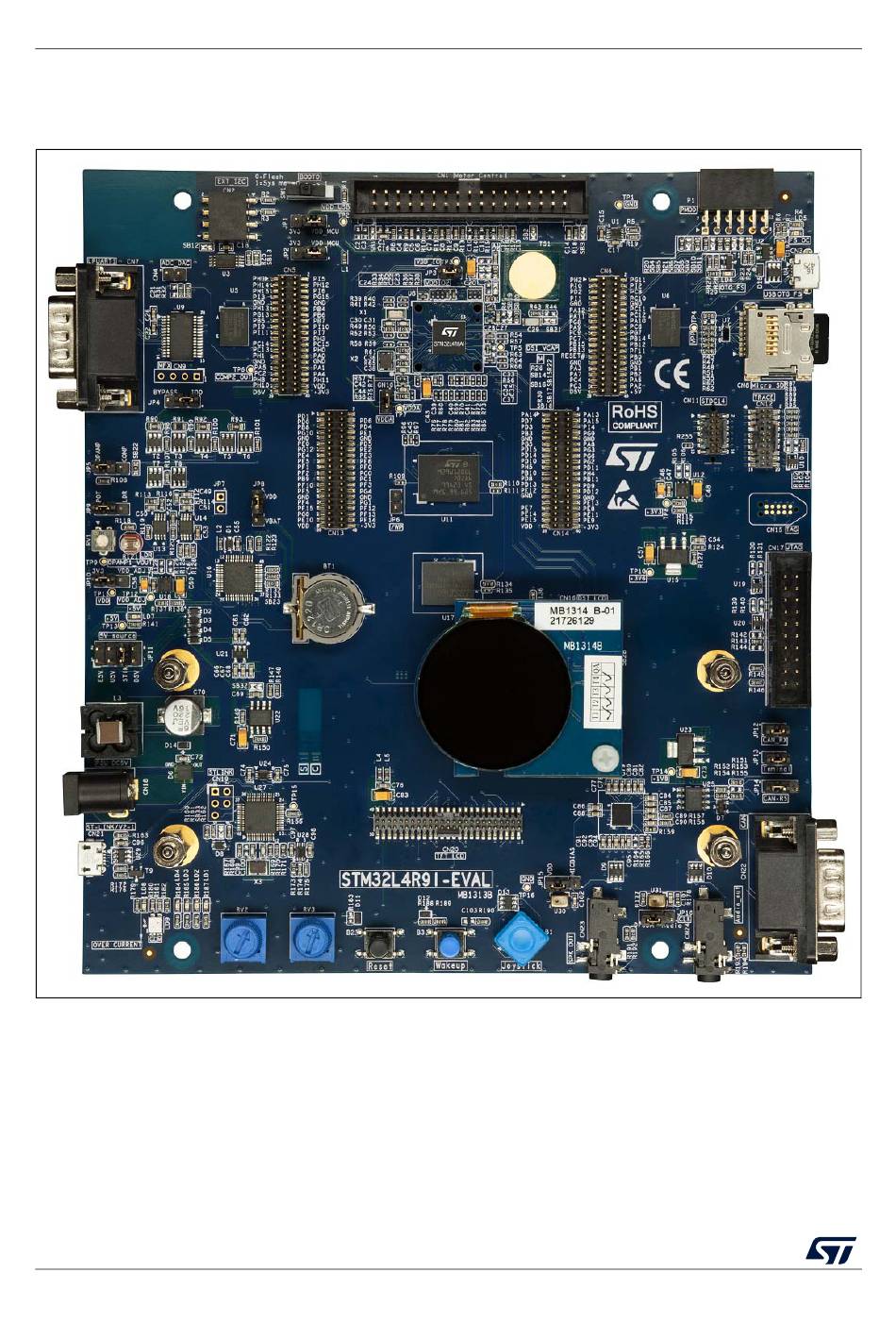

Figure 3. STM32L4R9I-EVAL board (top view) with MB1314 round DSI display daughterboard
Picture is not contractual.
