FC 300 Operating Instructions

Motor Connection

NB!:
Motor cable must be screened/armoured.
If an unscreened/unarmoured cable
is used, some EMC requirements are
not complied with. For more information, see
EMC specifications in the VLT AutomationDrive
FC 300 Design Guide.

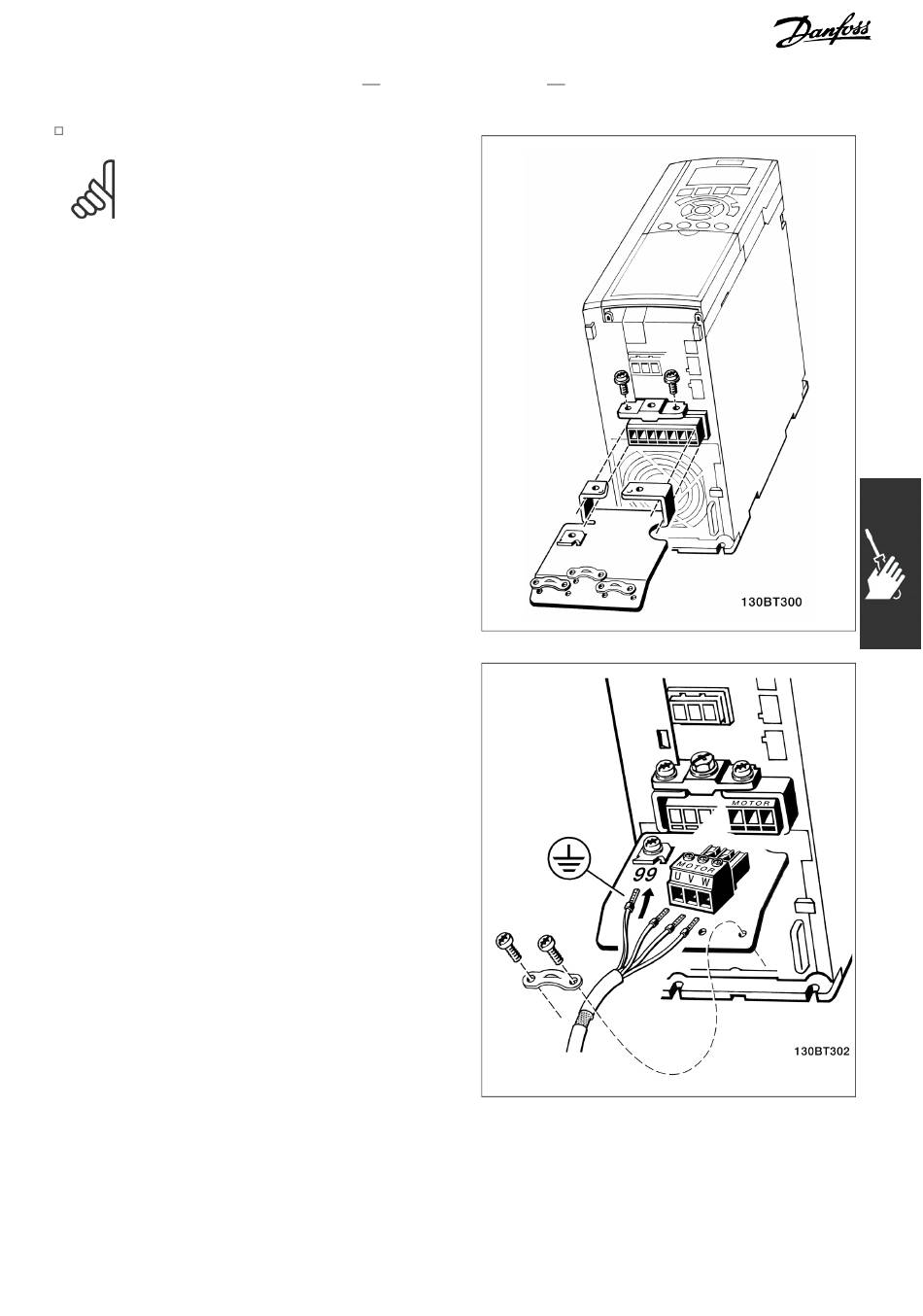

1. Fasten decoupling plate to the bottom of FC 300
with screws and washers from the accessory bag.
Attach motor cable to terminals 96 (U),
2.
97 (V), 98 (W).
3. Connect to earth connection (terminal
99) on decoupling plate with screws from
the accessory bag.
Insert plug connectors 96 (U), 97 (V), 98 (W)
4.
and motor cable to terminals labelled MOTOR.
5. Fasten screened cable to decoupling plate with
screws and washers from the accessory bag.
How to Install
≤ 7.5 kW
