FC 300 Operating Instructions

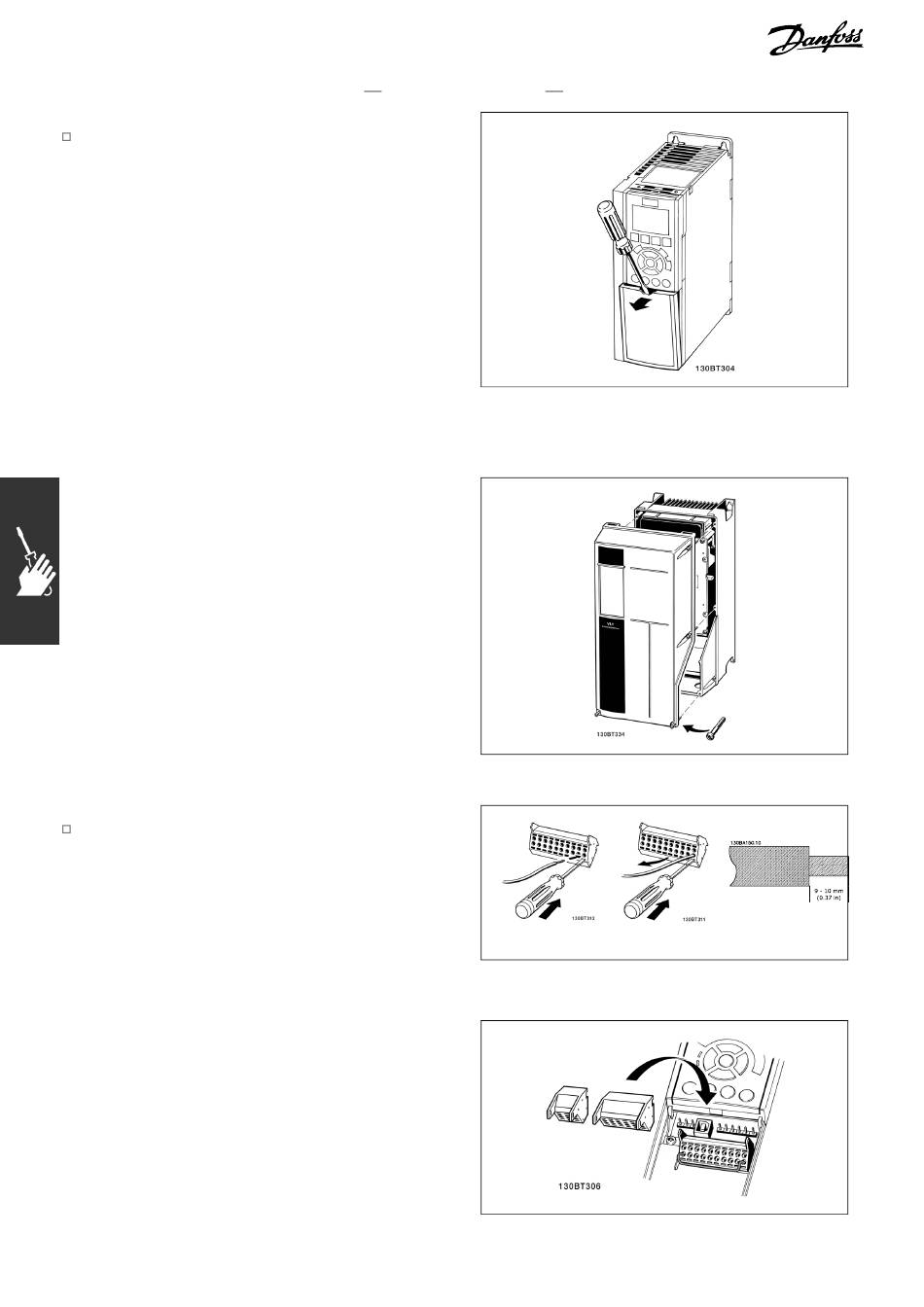

Access to Control Terminals

All terminals to the control cables are located
underneath the terminal cover on the front of the
frequency converter. Remove the terminal cover
by means of a screwdriver (see illustration).

Electrical Installation, Control Terminals

To mount the cable to the terminal:
1. Strip isolation of 9-10 mm
Insert a screw driver in the square hole.
2.
Insert the cable in the adjacent circular hole.
3.
Remove the screw driver. The cable is now
4.
mounted to the terminal.
To remove the cable from the terminal:
Insert a screw driver in the square hole.
1.
Pull out the cable.
2.
22
How to Install
≤ 7.5 kW
A5, B1 and B2 enclosures
MG.33.A5.02 - VLT is a registered Danfoss trademark
1. 2.
3.
