Encoder Option MCB 102

The encoder module is used for interfacing feedback from motor or process. Parameter settings in group 17-xx
Used for:
• VVC plus closed loop
• Flux Vector Speed control
• Flux Vector Torque control
• Permanent magnet motor with SinCos feedback (Hyperface
Incremental encoder: 5 V TTL type
SinCos Encoder: Stegmann/SICK (Hyperface
Selection of parameters in par. 17-1* and par. 1-02
When the encoder option kit is ordered separately the kit includes:
• Encoder module MCB 102
• Enlarged LCP fixture and enlarged terminal cover
The encoder option does not support FC 302 frequency converters manufactured before week 50/2004.
Min. software version: 2.03 (par. 15-43)

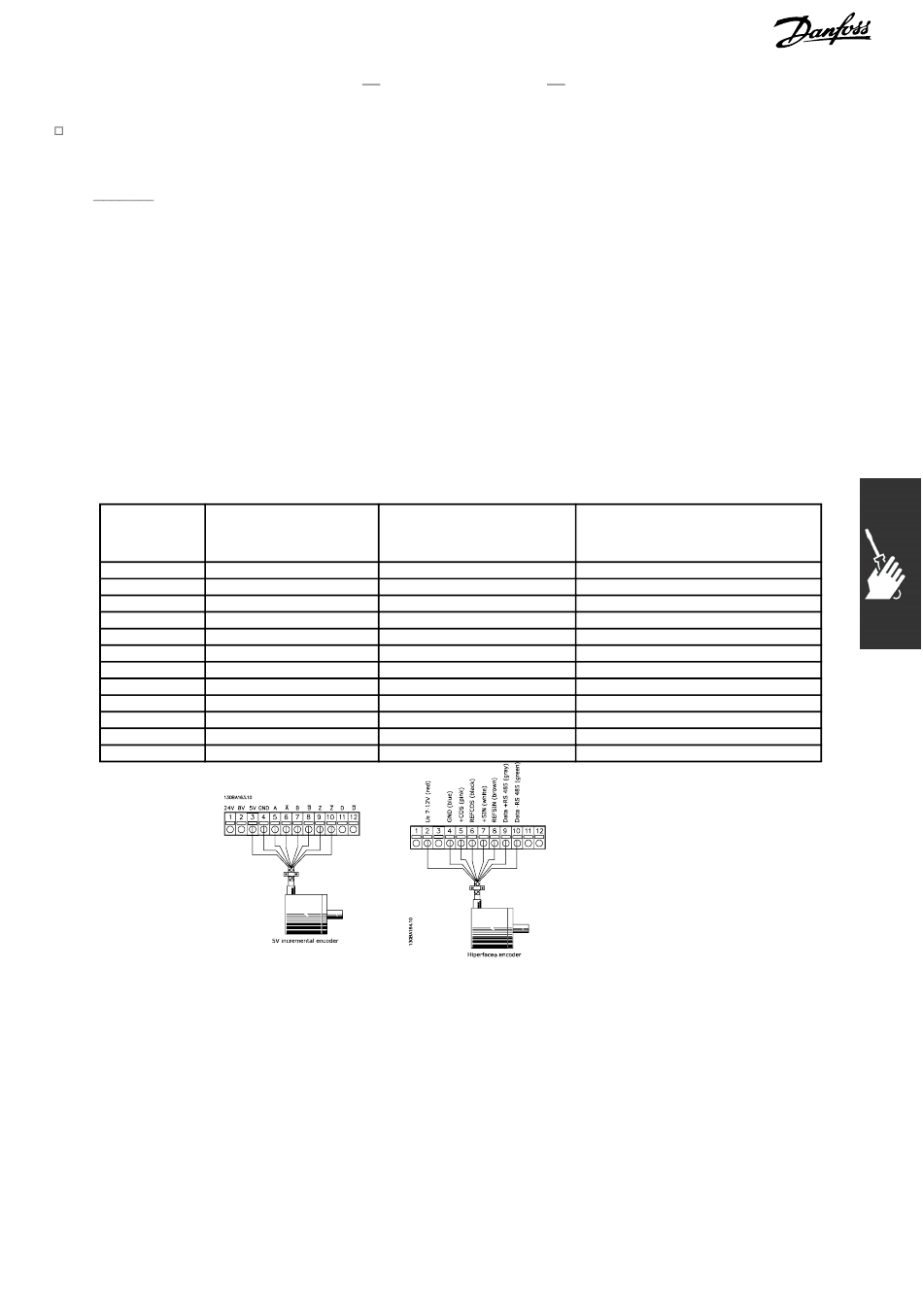

Connector Incremental Encoder
Designation
X31
1 NC
2 NC
3 5 VCC
4 GND
5 A input
6 A inv input
7 B input
8 B inv input
9 Z input
10 Z inv input
11 NC
12 NC
Max. 5V on X31.5-12
How to Install
® )
SinCos Encoder
®
Hyperface
+COS
REFCOS
+SIN
REFSIN
+Data RS485
-Data RS485
NC
NC
MG.33.A5.02 - VLT is a registered Danfoss trademark
® )
Description
24 V Output
8 V Output
5 V Output
GND
A input
A inv input
B input
B inv input
Z input OR +Data RS485
Z input OR -Data RS485
Future use
Future use
31
