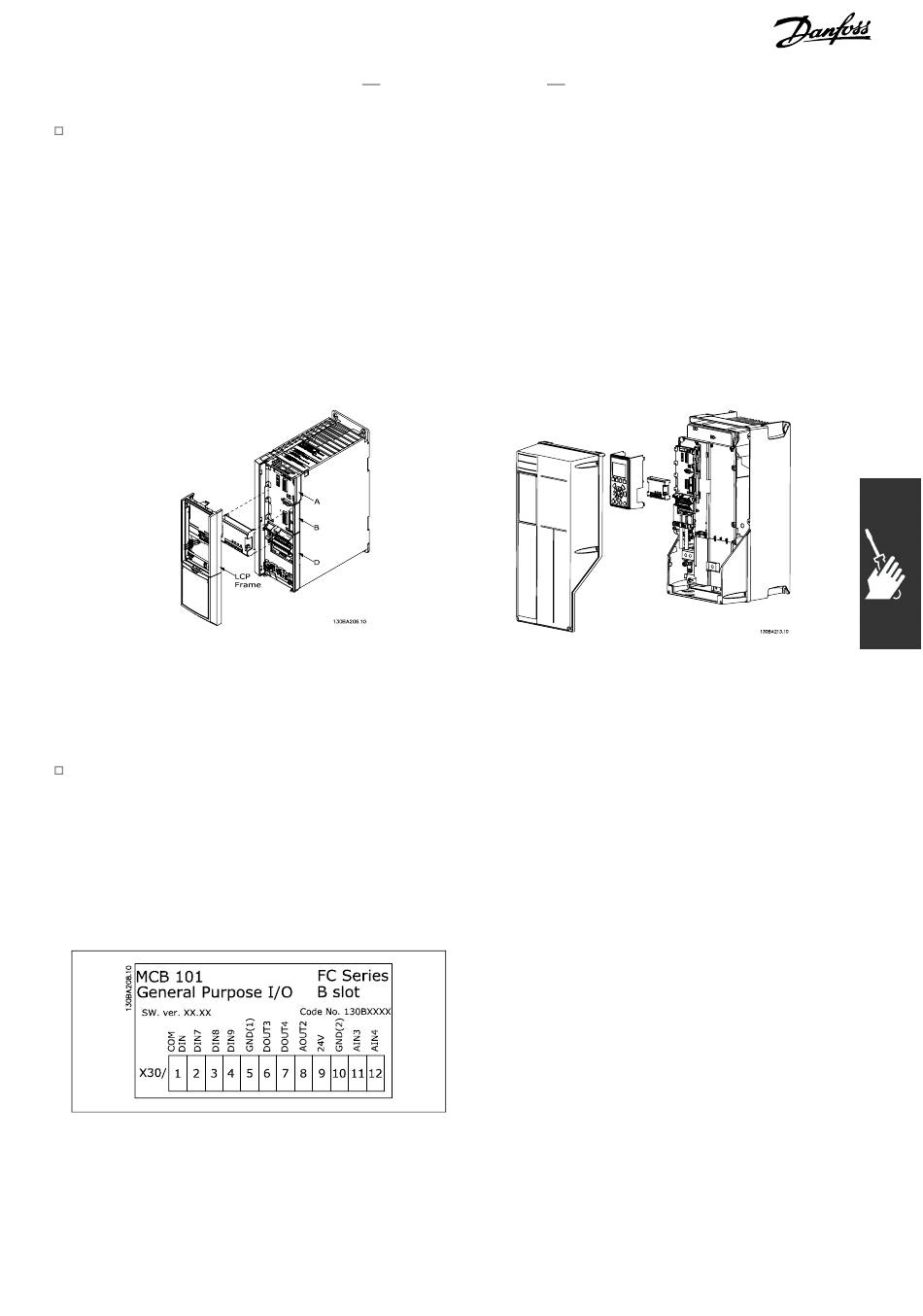

Mounting of Option Modules in Slot B
(MCB 101 and MCB 102)
The power to the frequency converter must be disconnected.
Remove the LCP (Local Control Panel), the terminal cover, and the LCP frame from the frequency converter.
•
• Fit the MCB10x option card into slot B.
• Connect the control cables and relieve the cable by the enclosed cable strips.
* Remove the knock out in the extended LCP frame, so that the option will fit under the extended LCP frame.
Fit the extended LCP frame and terminal cover.
•
Fit the LCP or blind cover in the extended LCP frame.
•
Connect power to the frequency converter.
•
• Set up the input/output functions in the corresponding parameters, as mentioned
in the section General Technical Data.
0.25 - 7.5 kW IP20

General Purpose Input Output Module MCB 101

MCB 101 is used for extension of digital and analog inputs and outputs of FC 301 and FC 302 AutomationDrive.
Contents: MCB 101 must be fitted into slot B in the AutomationDrive.
• MCB 101 option module
Extended fixture for LCP
•
Terminal cover
•
How to Install
MG.33.A5.02 - VLT is a registered Danfoss trademark
0.25 - 7.5 kW IP 55
and
11 - 22 kW IP21
