FC 300 Operating Instructions

Motor Connection

NB!:
Motor cable must be screened/armoured.
If an unscreened/unarmoured cable is
used, some EMC requirements are not
complied with. For more information, see EMC
specifications in the VLT AutomationDrive FC 300
Design Guide.

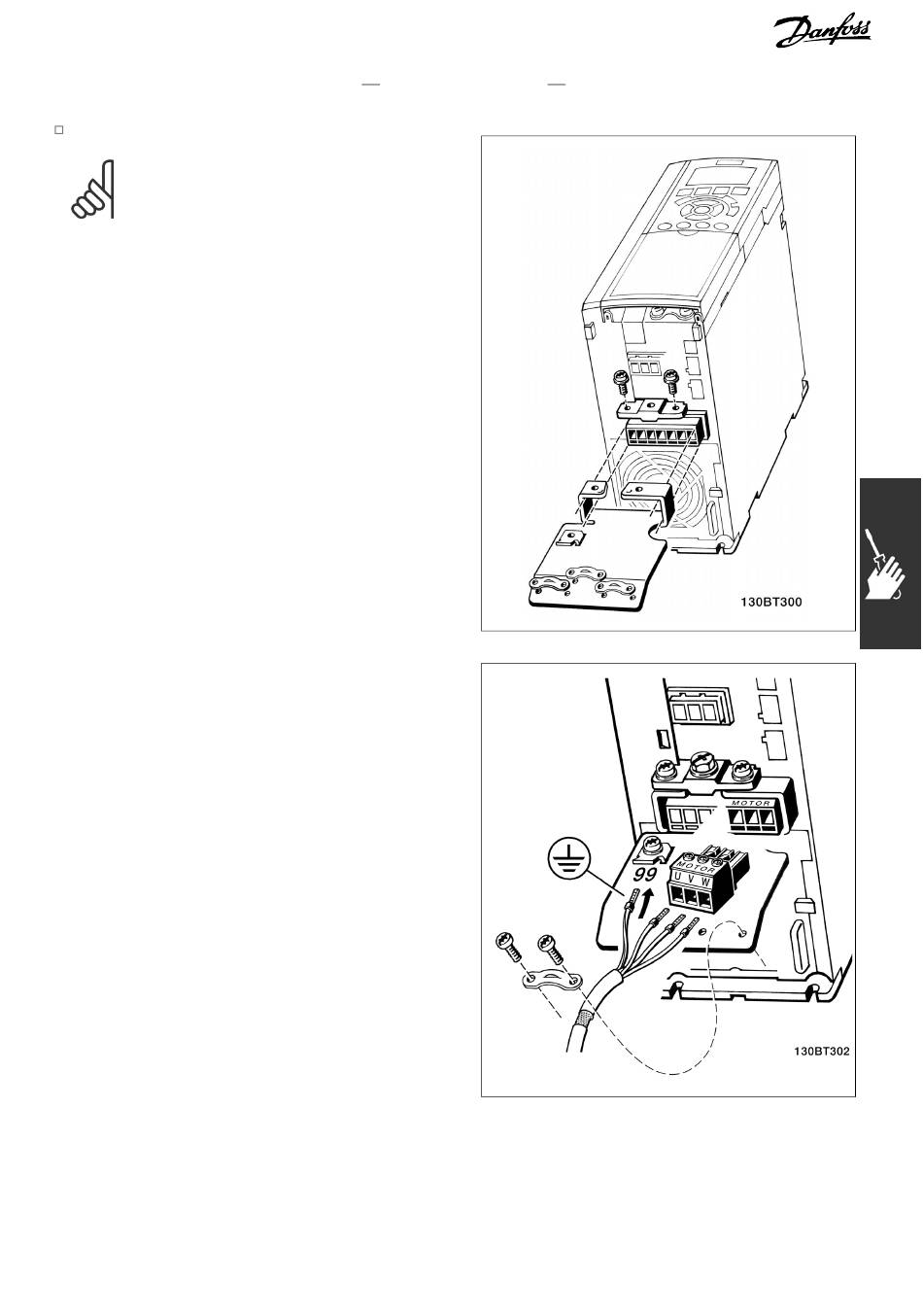

Fasten decoupling plate to the bottom of FC 300
1.
with screws and washers from the accessory
bag.
2. Attach motor cable to terminals 96 (U), 97 (V),
98 (W).
Connect to earth connection (terminal 99) on
3.
decoupling plate with screws from the accessory
bag.
4. Insert plug connectors 96 (U), 97 (V), 98 (W)
and motor cable to terminals labelled MOTOR.
Fasten screened cable to decoupling plate with
5.
screws and washers from the accessory bag.
How to Install
