Cn31 Smartcard Connector; Table 40. Cn31 Smartcard Connector; Figure 24. Cn31 Smartcard Connector (Top View) - ST STM32G474E-EVAL User Manual

Connectors
6.22

CN31 smartcard connector

Pin number
1
2
3
4
17
54/66

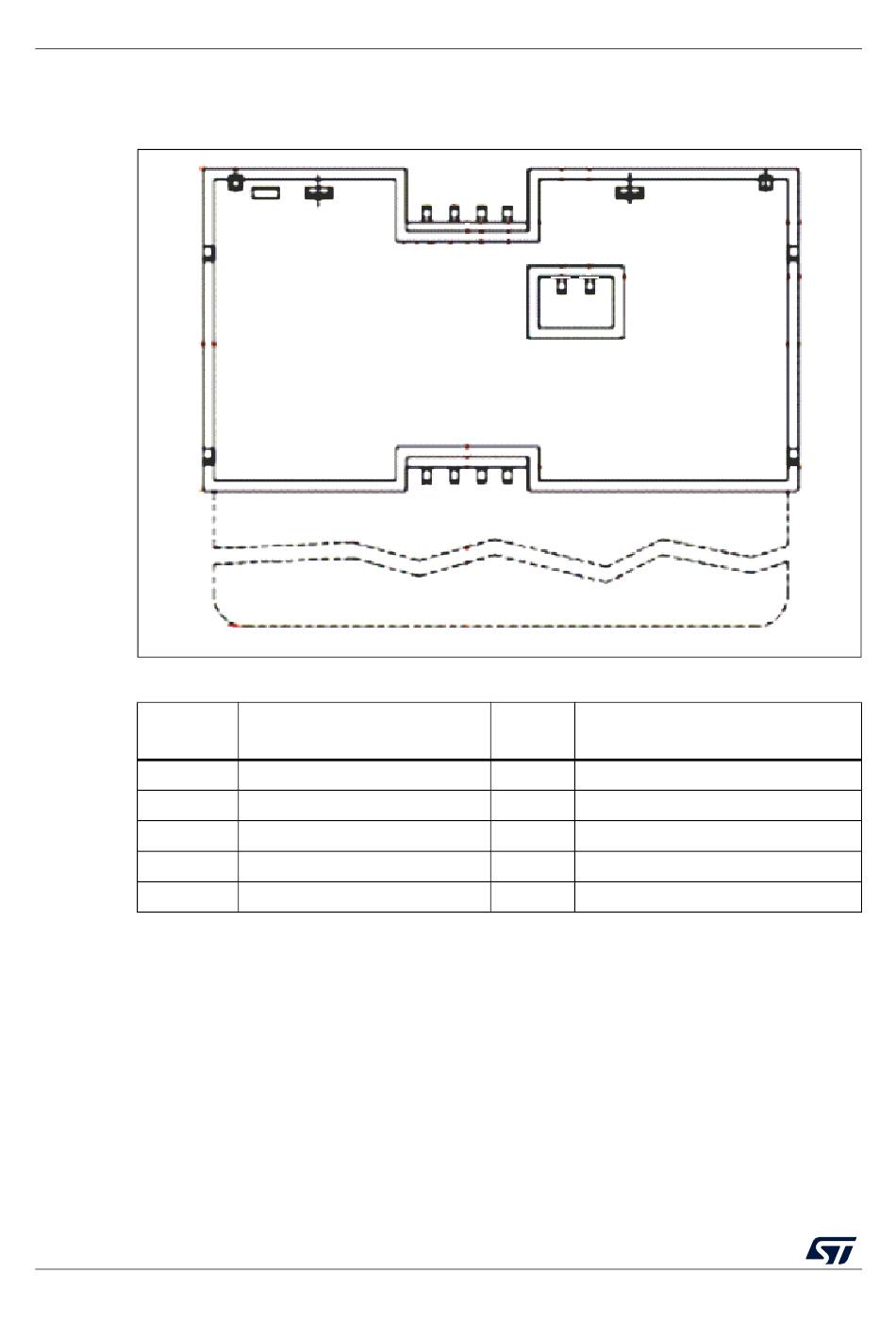

Figure 24. CN31 smartcard connector (top view)

Table 40. CN31 smartcard connector

Description
VCC
RST
CLK
NC
Card-presence detection pin
UM2514 Rev 5
1 2 3 4
17 18
7 8
5 6
Pin
number
5 GND
6 NC
7 I/O
8 NC
18 Card-presence detection pin
UM2514
MSv51362V1
Description
