1. Observe the safety and ESD precautions at the beginning of this book.
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Disconnect the power cord.
4. Remove the four screws (see letter "A").
5. Slide cover back and lift upward (see letter "B").

Installing the System Cover

1. Place system cover onto the chassis and slide forward to engage recessed edge at front of
cover (see letter "A").
2. Tighten the four screws (see letter "B").

Removing and Installing the Air Duct

Always operate your server system with the air duct in place. The air duct is required for proper airflow
within the server system.
®
Intel Server System R2000GZ/GL Service Guide

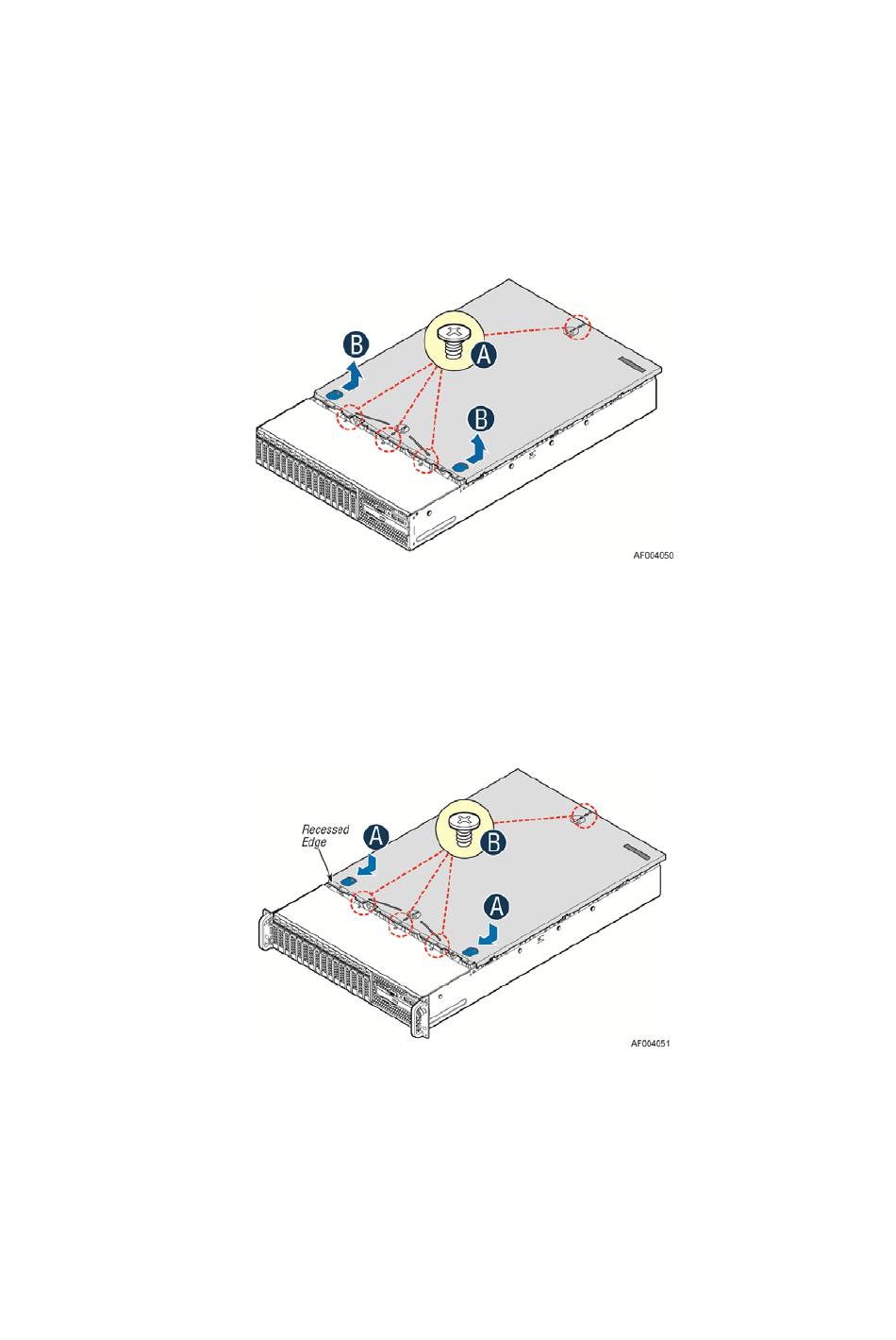

Figure 33. Removing the System Cover

Figure 34. Installing the System Cover
