EVAL-IHW25N140R5L
2kW induction heating evaluation board with reverse conducting R5L IGBT
System design

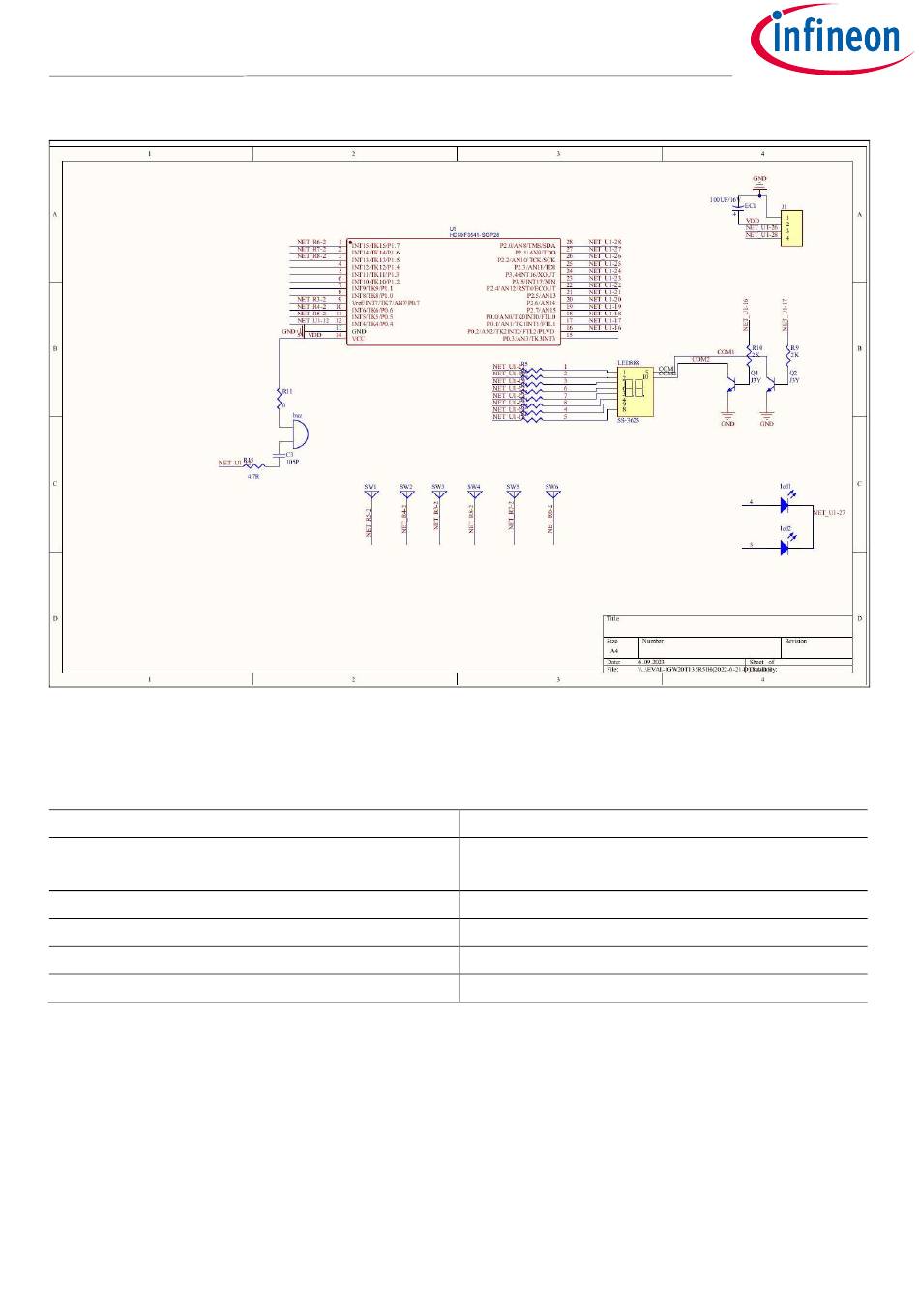

Figure 6 Schematic of the user interface board
3.2

Layout

Table 2 Printed circuit board layout parameters
Parameter
Board dimensions: Inverter board
Interface board
Number of layers
Layer thickness
Final board thickness
PCB material
User guide
Value
145 mm x 90 mm
235 mm x 45 mm
1
35 µm
1.6 mm
FR4
12 Revision 1.0
