With the MADK output power increasing, IPM DCB PFC test point and IGBT test point temperature are
monitored, final test result are shown as Figure 31.
5.5

Auxiliary power supply

Figure 32 depicts the schematic of the auxiliary power supply for the EVAL-M3-IM564 board. The circuit includes
an ICE5QR4770AG that is used to generate 15 V and 6V through QR flyback topology from the DC bus.

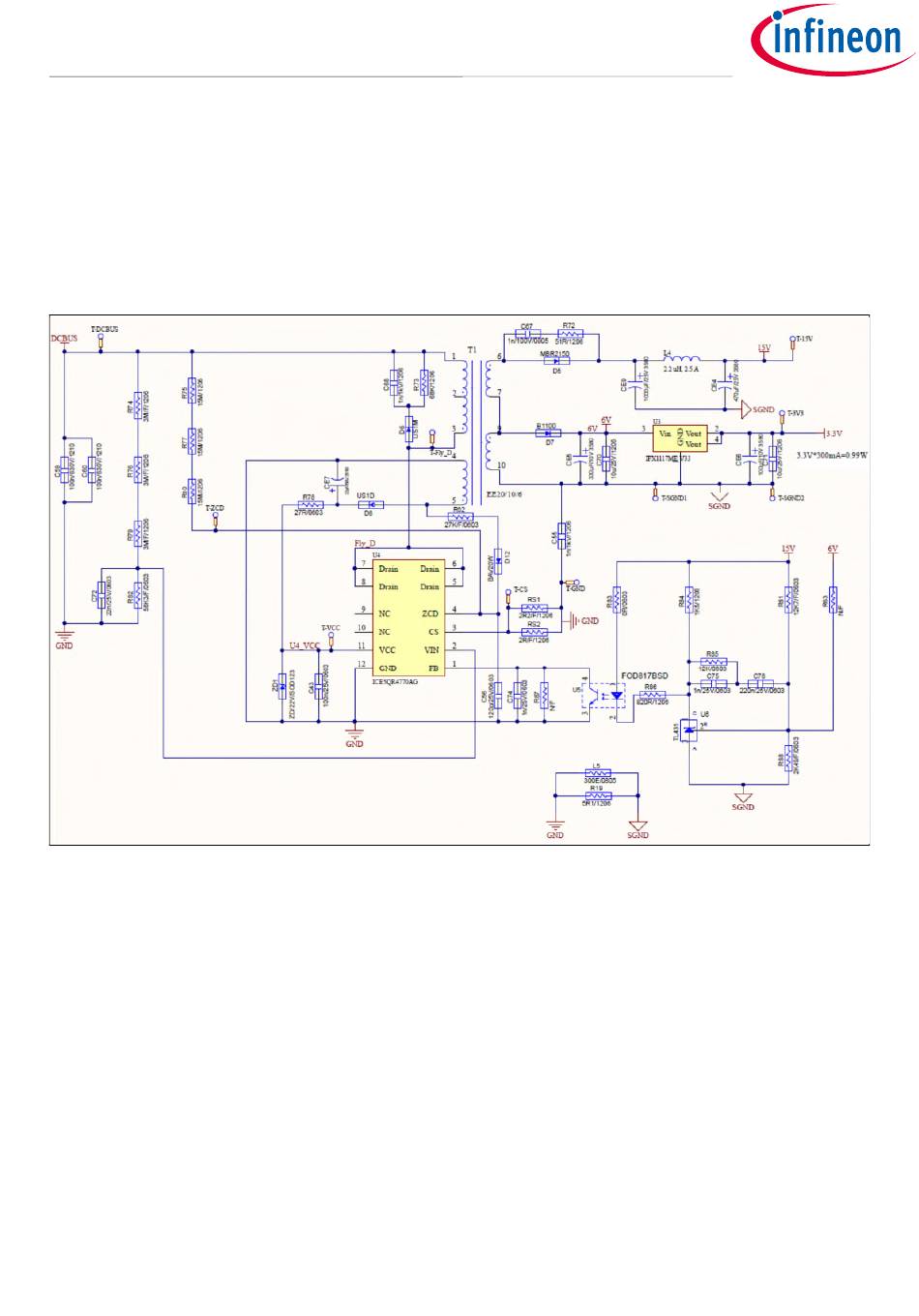

Figure 32 Power supply section of the EVAL-M3-IM564 Evaluation board
The linear voltage regulator IFX1117ME V33 generates 3.3 V from 6V power supply. The 3.3 V power supply is
used in the PFC overcurrent comparator circuit and overtemperature hardware protection circuit. Both 15V and
3.3 V are also present on the 30 pins iMOTION™ MADK-M3 interface connector J3 to power circuitry on the
control board.
5.6

Schematics for EVAL-M3- IM564

The PFC setion schematic for EVAL-M3- IM564 is provided in Figure 33.
