FEATURES

• Four E1 ports on RJ-48 connectors with surge protection
• One full bandwidth Ethernet 10/100BaseT port
• 1+1 protection switching via two SFP-based optical ports
• DDMI supported on SFP ports
• One end-to-end serial RS-232 port on an RJ-45 connector
• Local CLI management console port on a Mini Jack connector
• Remote management capability through iMediaChassis series
• AIS generation on signal loss on all E1 interfaces
• SNMP Alarm TRAP reporting in managed chassis
• MDI/MDIX automatic Ethernet port switching
• Last Gasp
• E1 port enable/disable
• Bandwidth Limiting for Ethernet Port
• AIS Detection
The IE-iMcV-E1-Mux/4 module is a dual-wide iMcV module. Compatible chassis
include the following:
• iMediaChassis series
• MediaChassis series
• IE-MediaChassis series
NOTE: Some options require items that are sold separately, available from B+B SmartWorx.

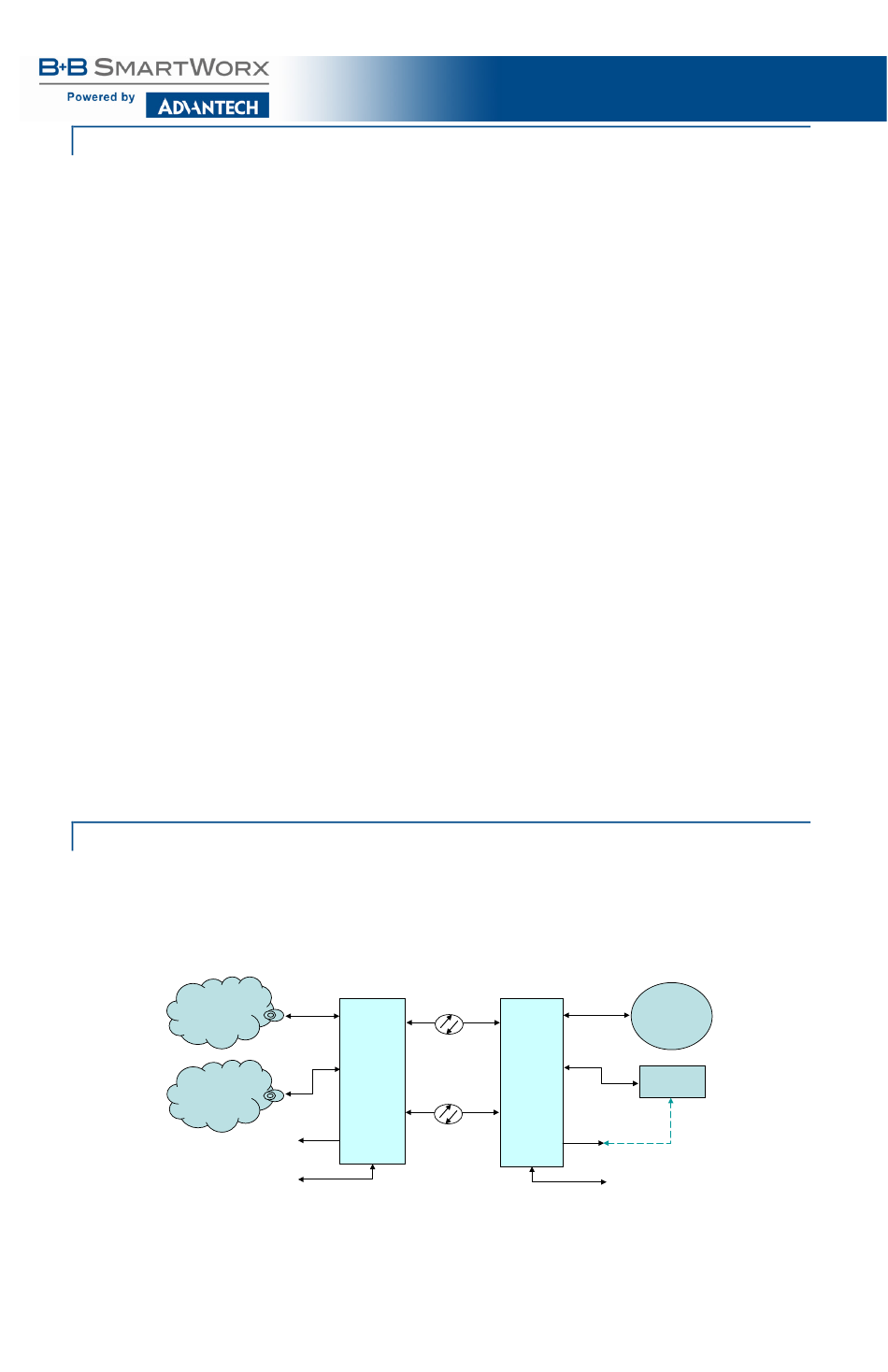

PRODUCT APPLICATION EXAMPLE

The IE-iMcV-E1-Mux/4 delivers four E1 lines to a customer's site over a
protected, dedicated fiber line. In addition, one serial RS-232 line and one
10/100BaseT Ethernet line can be carried at the same time. All circuits run at
full line rates with no interaction.
ISP Internet
TDM Network
PSTN
Local Far End
iMcV-E1-Mux4, Ethernet Enhanced
10/100BaseT
(1 Port)
E1-Mux
Dedicated
(Network)
Fiber
E1
(4 port)
Host
Serial Port
Dedicated
Fiber
Protection
Console
(1+1)
6
10/100BaseT
(1 Port)
Customer
LAN
E1-Mux E1
(Subscriber) (4 Port)
Customer
PABX
Remote
Serial Port
Remote Far End
Console
Console RS232
