CONSOLE SCREENS

CONFIGURATION USING THE CONSOLE PORT

The following section describes configuration using the console screens. The
Remote module is only configured through the Host.

LOGIN SCREEN

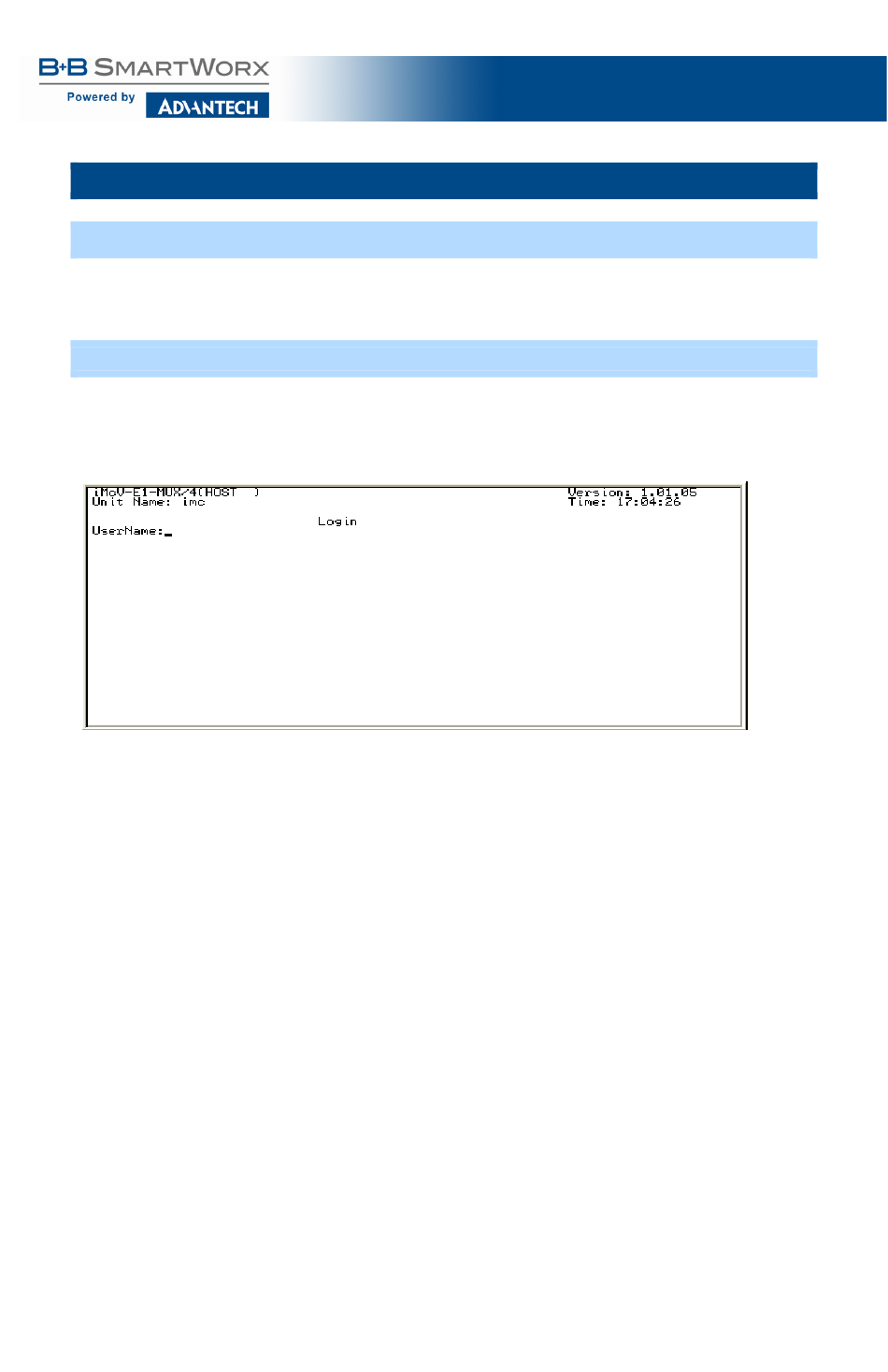

After running through an initial self-test, the log-in screen is displayed.
NOTE: The diagnostic information displayed below is for illustration purposes only and may differ from the
actual screen display.
The username is case sensitive with a maximum length of 16 characters. After
a username is entered, the system prompts the end-user for a password.
Password is case sensitive with a maximum length of 16 characters. After the
system validates the username and password, the Main Menu is displayed.
