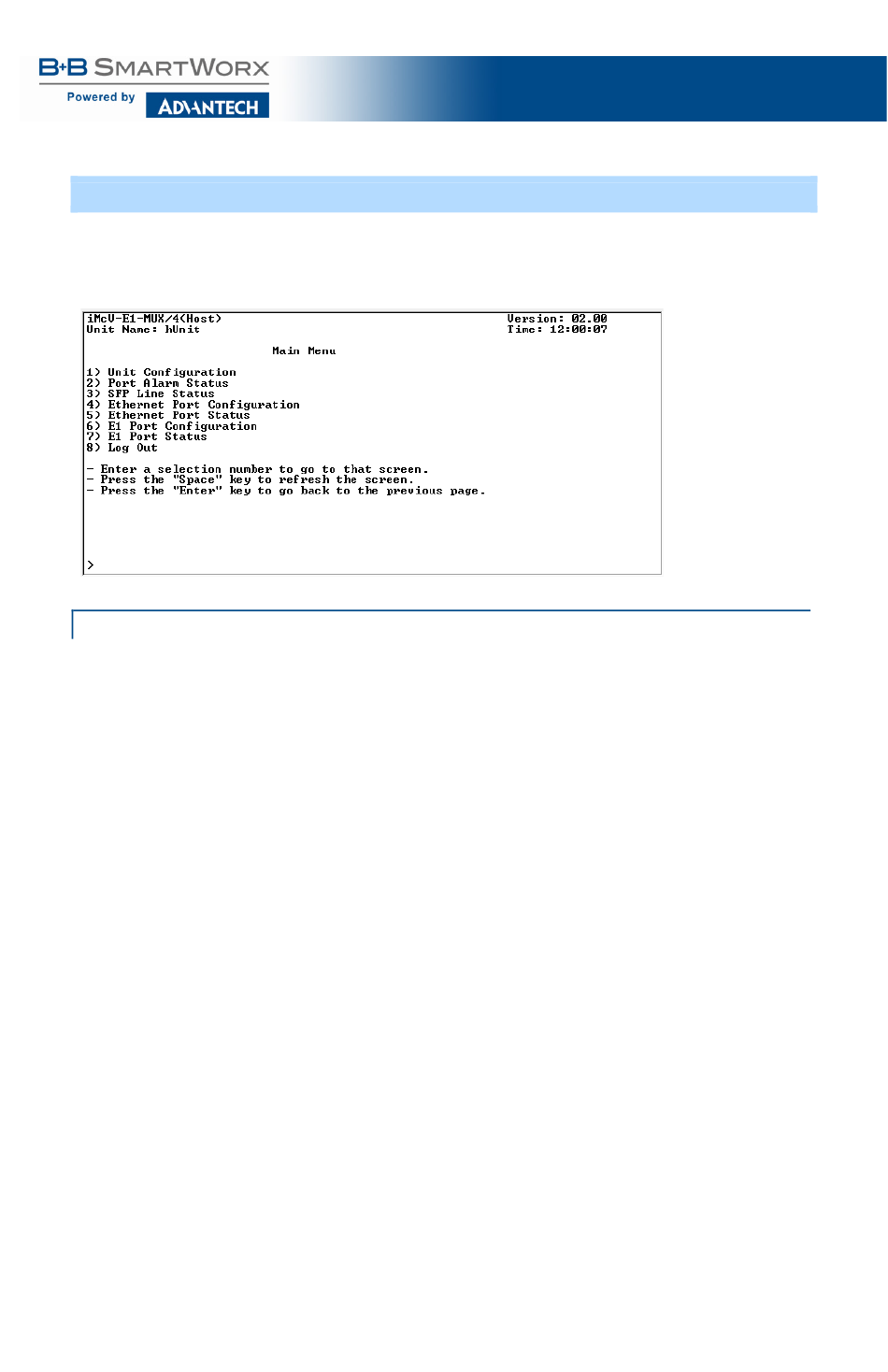

MAIN MENU

From the main menu, the end-user can view essential unit configuration data -
including active alarms in order of importance - and a clock indicating when
the displayed information was last refreshed.

MENU OPTIONS

1 = Refer to the Unit Configuration screen.
2 = Refer to the Port Alarm Status screen.
3 = Refer to the SFP Line Status screen; SFP DDMI alarms are also displayed.
4 = Refer to the Ethernet Port Configuration screen.
5 = Refer to the Ethernet Port Status screen.
6 = Refer to the E1 Port Configuration screen.
7 = Refer to the E1 Port Status screen.
8 = Log out
NOTE: On all configuration screens, the title is the same as the "option" selected from the
previous screen.
