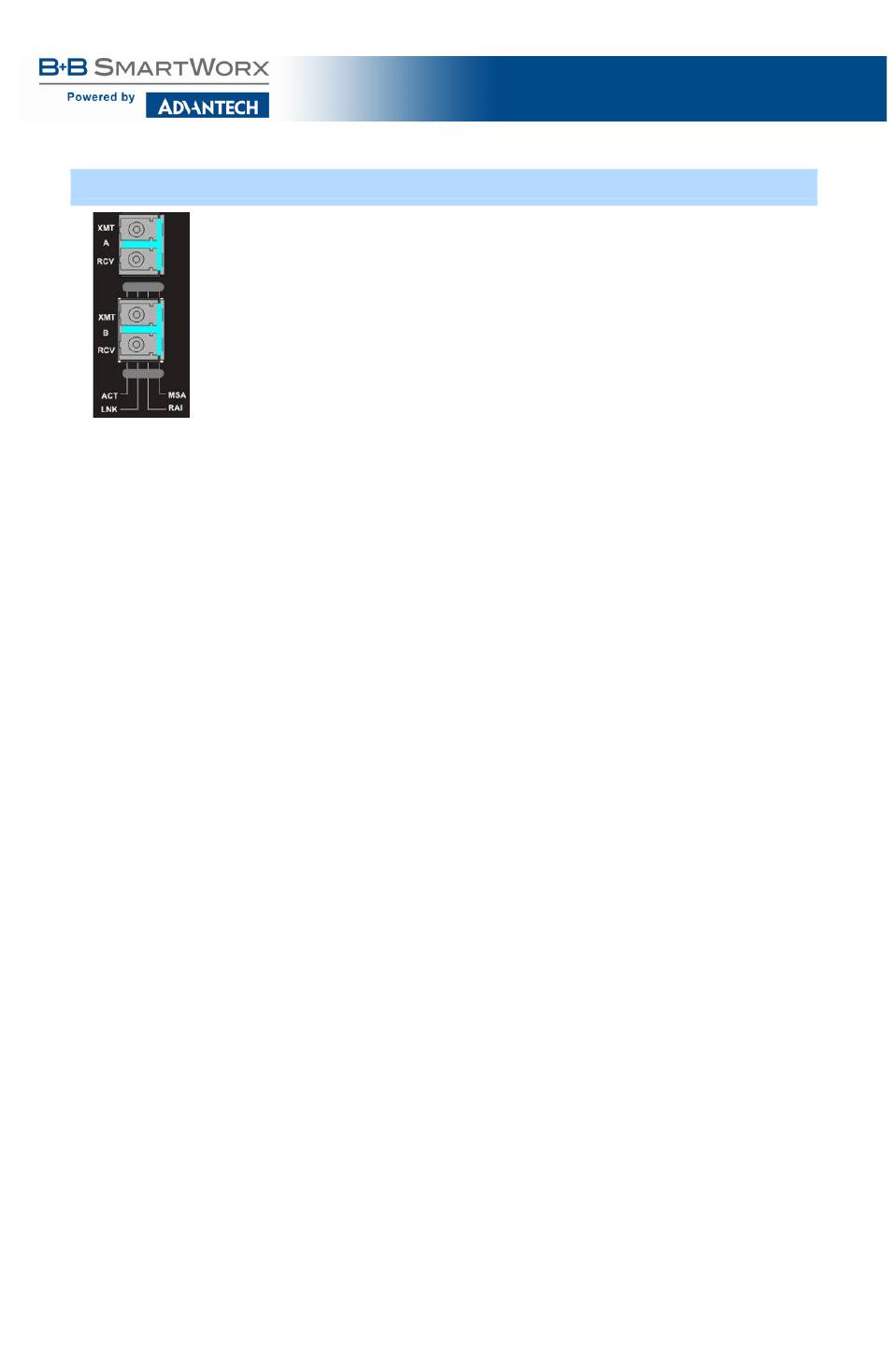

SFP PORTS

ACT:
LNK:
RAI:
MSA:
iMcV-E1-Mux4, Ethernet Enhanced
• Glows green when the SFP port is the active receive
line.
• OFF when the SFP is not the receive line
• Glows red+green when the SFP port is manually forced
to be the active receive line
• Glows green when there is a valid link
• Glows red when a loss of optical signal occur, LOF, or
with continuous optical bit errors
• Off when no remote defects are detected
• Glows red+green when remote LOS or BER detected
• Glows green when no SFP alarms are detected
• Glows red+green when SFP alarms or defects are
detected at remote end
• Glows red when SFP alarms or misconfigurations are
detected locally, i.e., when the SFP is missing, or when
SFP speed is not at 155Mbps
