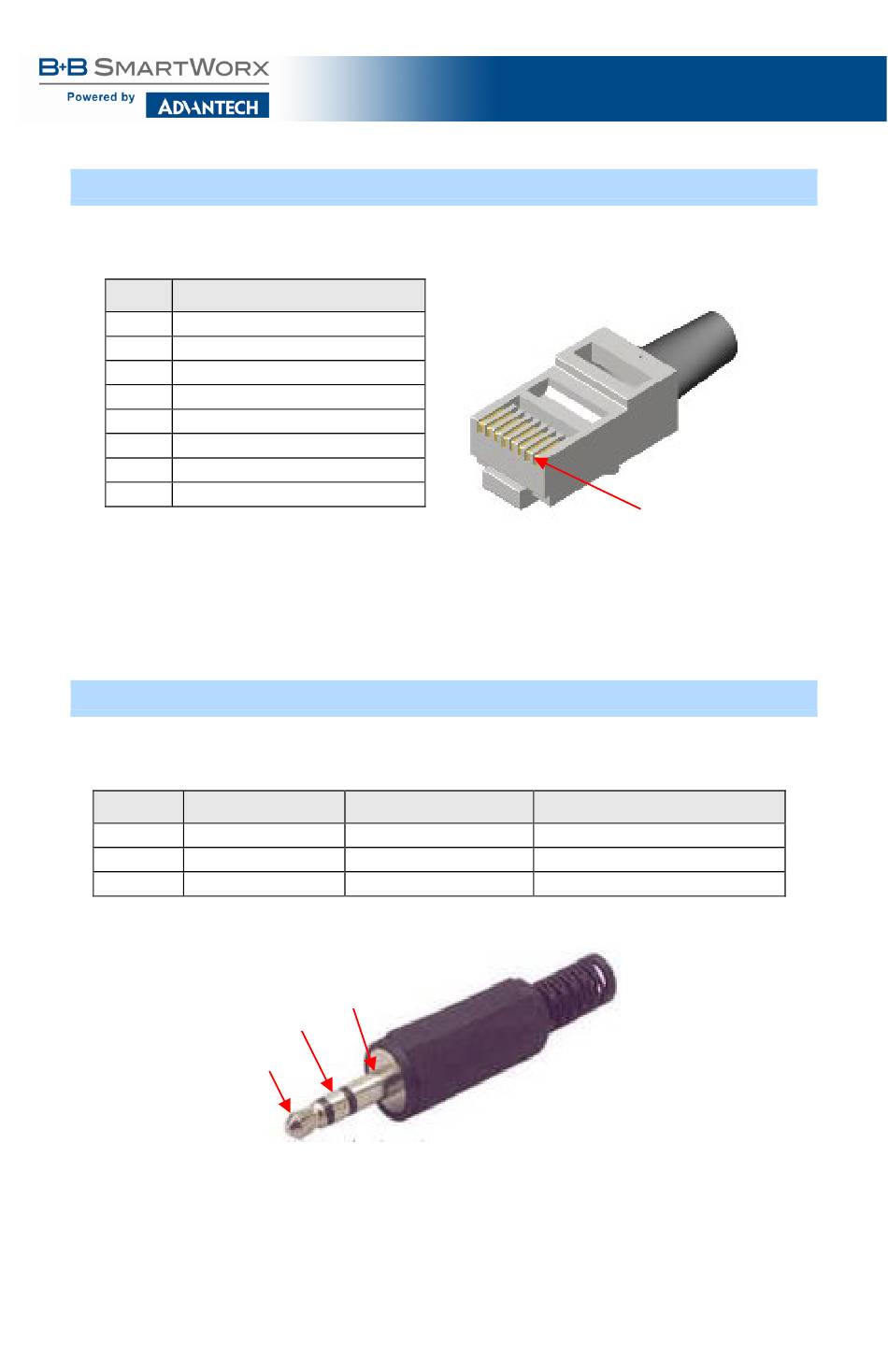

RS-232 PORT MATING CONNECTOR PINOUT

The following table lists the pin configuration for the RS-232 port mating
connector.
Pin Signal
1
None
2 None
3 None
4 Signal Ground
5 Receive Data (in to unit)
6 Transmit Data (out of unit)
7 None
8 None
This port provides an end-to-end RS-232 line that can support up to 120K
baud and is transparent to all RS-232 protocols.

RS-232 SERIAL CONSOLE PORT PINOUT

The following table lists the pin configuration for the RS-232 3-pin Mini Jack mating
connector for the console serial port.
Pin DB9-F Pin#
Tip
Ring
Sleeve
Ring
Tip
iMcV-E1-Mux4, Ethernet Enhanced
Signal Name
2 Transmit
3 Receive
5 Return
Sleeve
15
Pin 1
Direction
Out of Unit
In to Unit
Return
