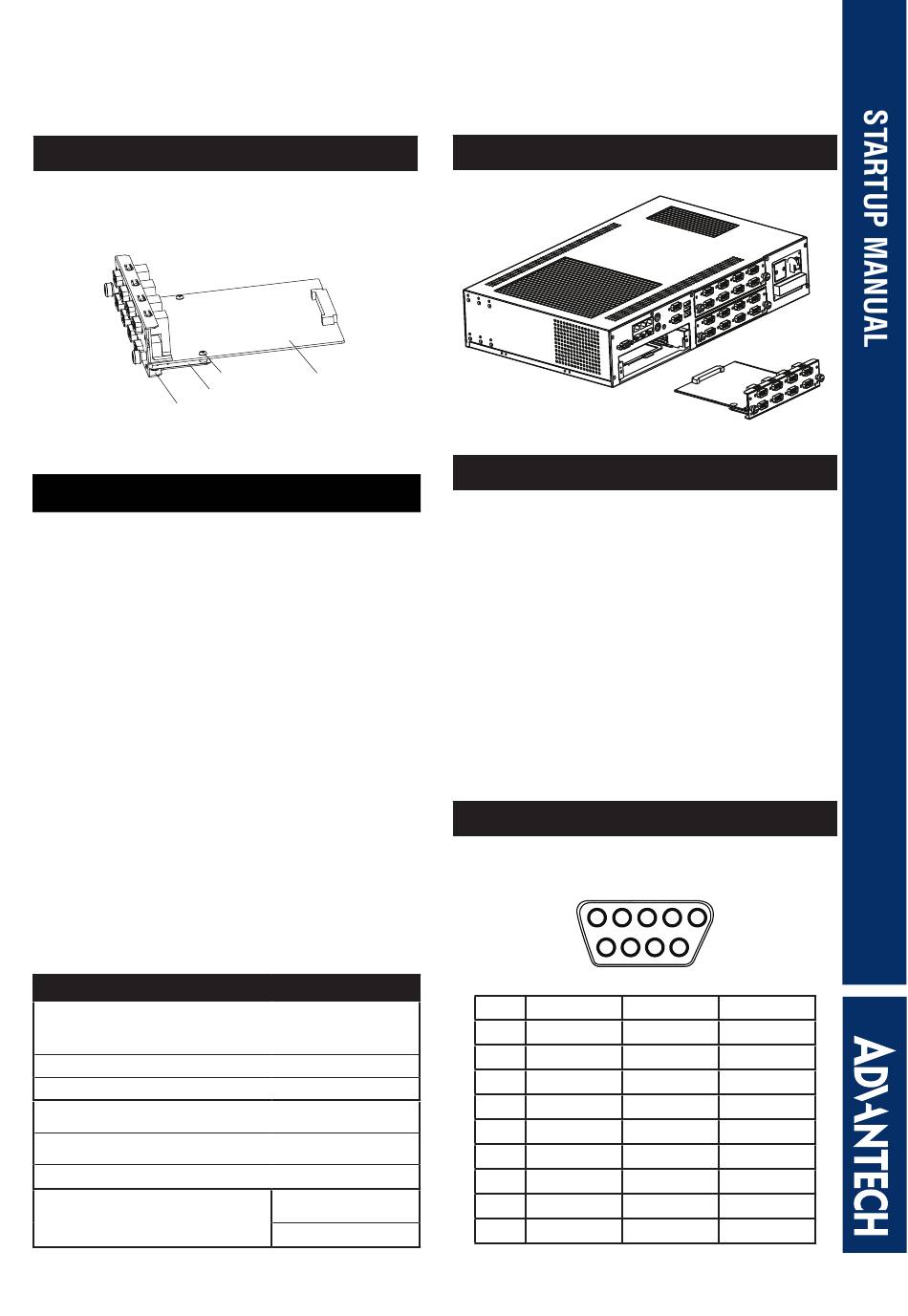

Advantech ECU-P1628D Startup Manual

ECU-P1618D/1628D
8-port RS-232/422/485 with and without port-to-port Isolation for UNO-4673A/4683 and ECU-4784
Packing List
Before installation, make sure that you have the ECU-
P1618D/1628D suit which includes the card and panel
as below.
Insulation mylar
Bracket panel
If anything is missing or damaged, contact your
distributor or sales representative immediately.
iOverviewation

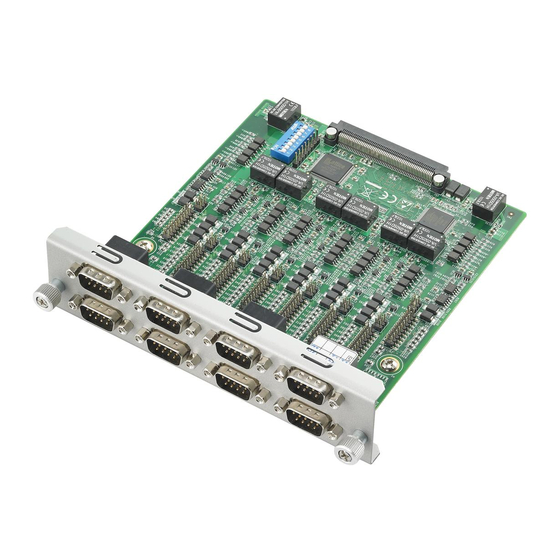

ECU-P1618D/1628D are 8 serial ports cards, with the
following specifications::
ƒ 8-port RS-232/422/485
ƒ Automatic RS-485 data flow control
ƒ 2,000 V Isolation Protection (ECU-P1628D)
DC
ƒ IRQ: All use the same IRQ assigned by PCI Bus
ƒ Data bits: 5, 6, 7, 8
ƒ Stop bits: 1, 1.5, 2
ƒ Parity: None, Even, Odd
ƒ Baud-rate (bps):
– RS-232: 50~115.2 k
– RS-422/485: 50~921.6 k
ƒ Transmission Distance: 1000 m (RS-422/485)
ƒ Data Signals:
– RS-232: DCD,RxD,TxD,DTR,GND,DSR,RTS
,CTS,RI
– RS-485: Data+, Data-, GND
– RS-422: Tx+, Tx-, Rx+, Rx-, GND
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com.tw/eservice
This manual is for ECU-P1618D/1628D
Part No: 2003SP0500
1 Startup Manual
Screw
Plug in card
1st Edition
April 2016
Diagram
Installation
The ECU-P1618D/1628D are expansion cards for
the UNO-4673A/4683 and ECU-4784 which has 3
expansion slots, the ECU-P1618D/1628D can be
plugged into any of the 3 slots in the UNO-4673A/4683
and ECU-4784. Follow these steps to integrate into the
UNO-4673A/4683 and ECU-4784:
ƒ Select one of the slots: unscrew the two screws on
the blank panel of the slot then remove the blanking
plate.
ƒ Plug the ECU-P1618D/1628D into the selected slot
of the UNO-4673A/4683 and ECU-4784 carefully
and fix it by the two screws on the panel.
Pin Assignment
ECU-P1618D/1628D serial ports COM1~COM8
1 2
6
Pin RS-232
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
3 4 5
7 8 9
RS-422 RS-485
TX- Data-
TX+ Data+
RX+
RX-
GND GND
