E1 PORT EQUIPMENT

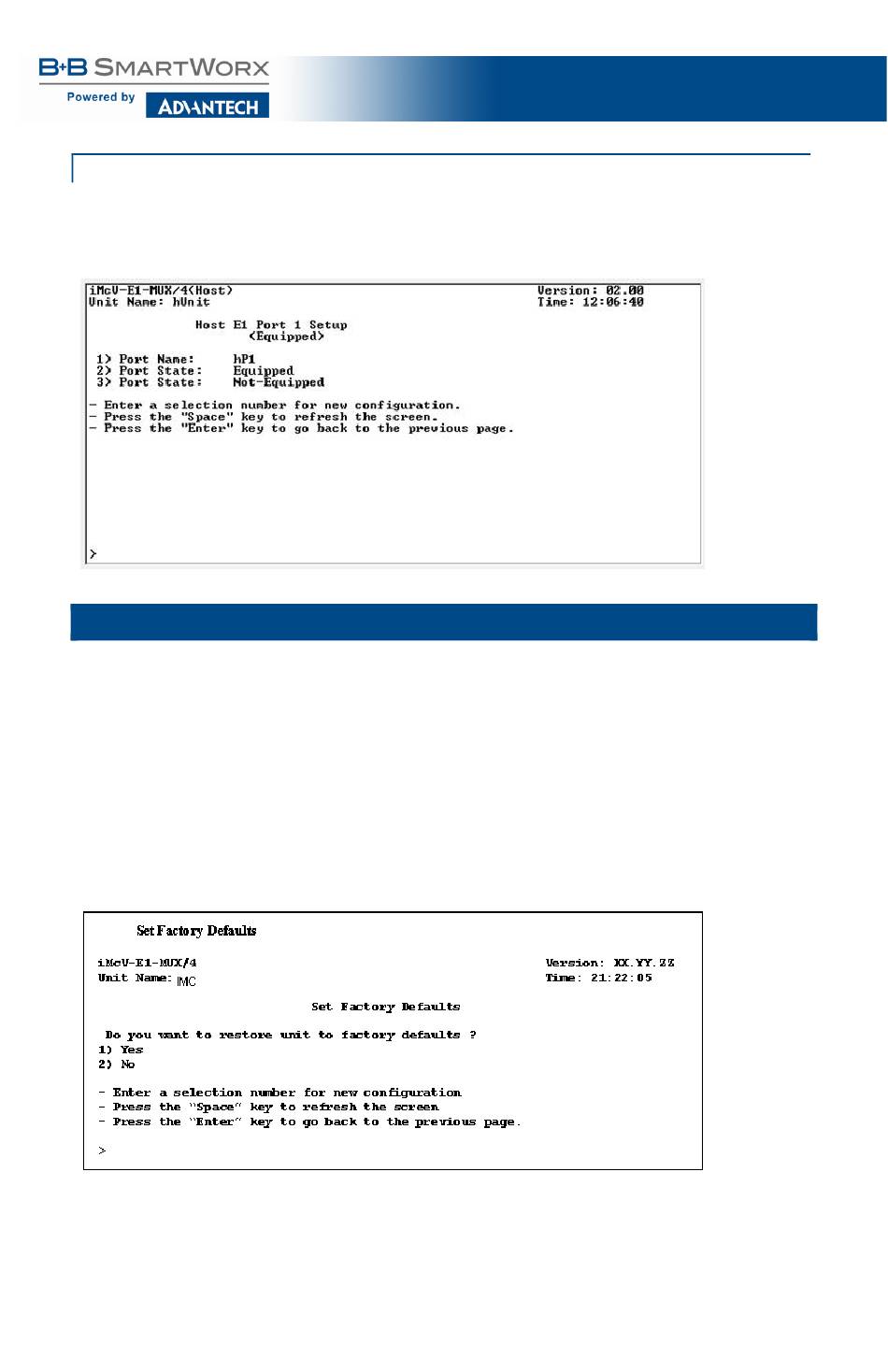

Within each E1 port setup, the state of the port can be set to Equip or Not-
Equipped. When set to Not-Equipped, the end user has the ability to perform
maintenance on the line without impacting the other parts on the module.

TROUBLESHOOTING

• IE-iMcV-E1-Mux/4 units ship configured as Host units via DIP Switch #1
= OFF. The Remote unit should be set to DIP Switch #1 = ON. Be sure to
confirm that the IE-iMcV-E1-Mux/4 card is set correctly when used.
• The fiber transport is independent of all other ports and should be
established first. If this is not possible, a physical fiber loopback can be
used for fiber port verification. A fiber loopback will cause all connected
ports to loop back their respected data.
If the fiber is not connected, all E1 ports will send the all-ones, AIS signal.
•
This can be physically looped back to verify E1 port operation.
