CONNECTOR PINOUT AND DIP SWITCH ASSIGNMENTS

DIP SW ITCH ASSIGNMENTS

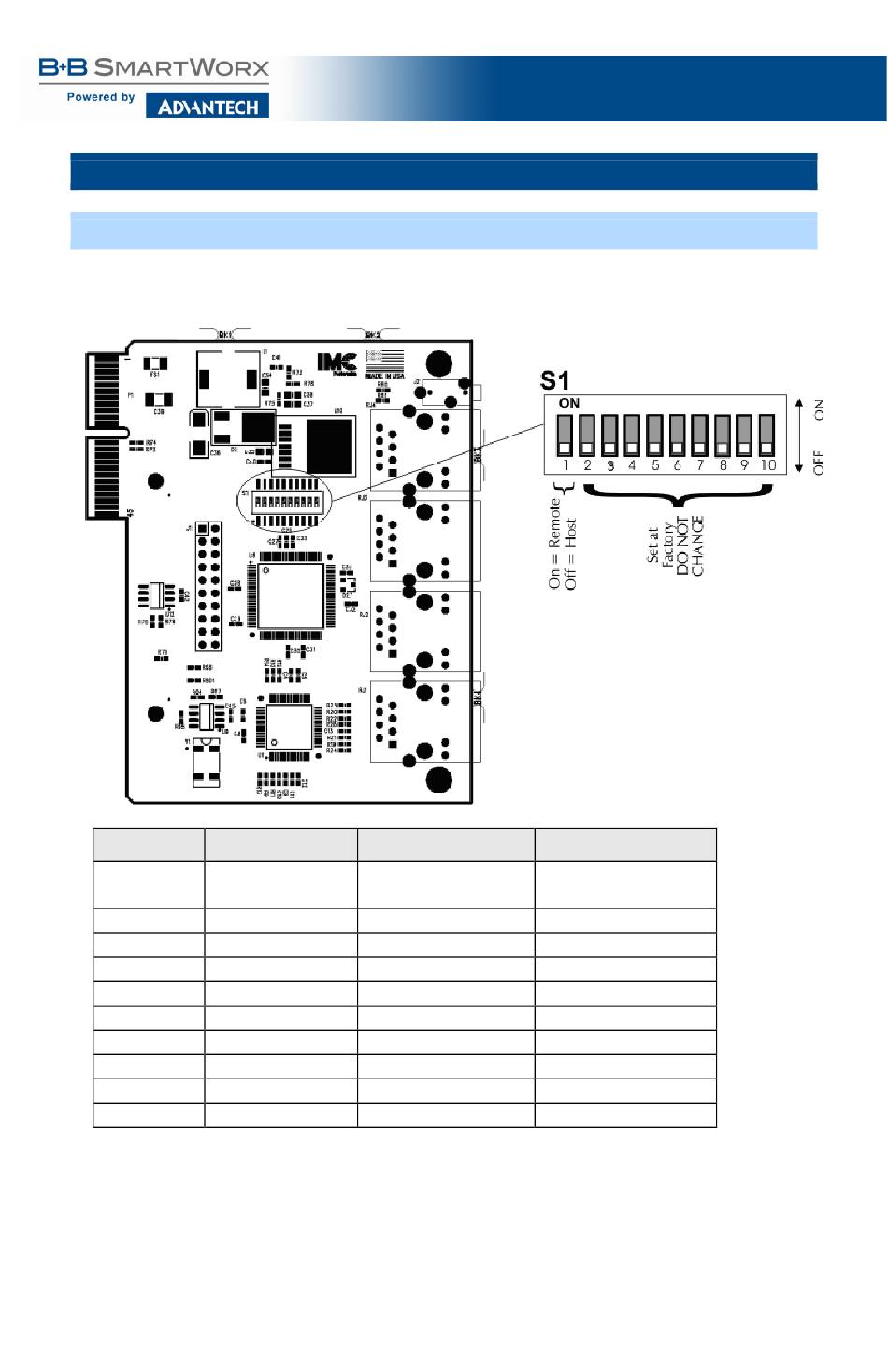

A single 10-position DIP Switch is located on the unit to set the configuration. The switch
positions are defined as follows:
Switch # Function
1
Host/Remote
2
Reserved
3
Reserved
4
Reserved
5
Reserved
6
Reserved
7
Reserved
8
Reserved
9
Reserved
10
Reserved
NOTE: Switch #1 must be set to ON at the Remote location.
Switches #2 through #10 are reserved for factory use only and must be OFF for proper operation.
iMcV-E1-Mux4, Ethernet Enhanced
Settings
OFF = Host,
ON = Remote
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
13
Factory Default
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
