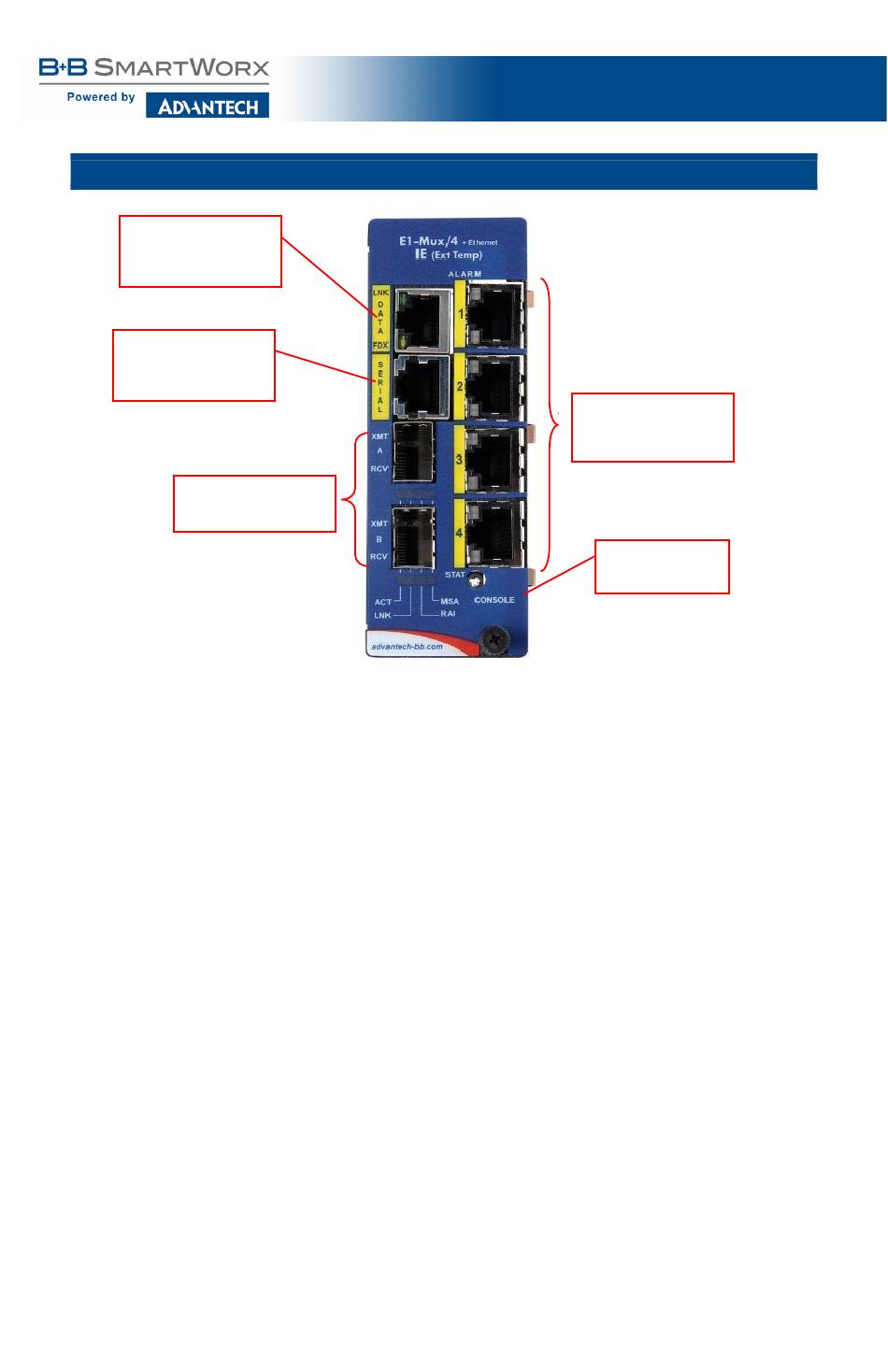

CONSOLE SERIAL PORT CONNECTION

10/100BaseT
Connector
RS-232
Connector
SFP Ports
The IE-iMcV-E1-Mux/4 includes a console serial port. To establish a link
between a module's console port and a local PC, connect the Mini Jack to
DB9 adapter that is included with the B+B SmartWorx. This serial console port
connection provides access to the IE-iMcV-E1-Mux/4 module CLI
configuration screens. Set the computer/terminal for VT-100 emulation, 38.4K
baud, 8 data bits, 1 stop bit, no parity and no flow control. Under the VT-
100 emulation, set the backspace key to send delete.
iMcV-E1-Mux4, Ethernet Enhanced
8
E1 RJ-48
Connectors
Console
