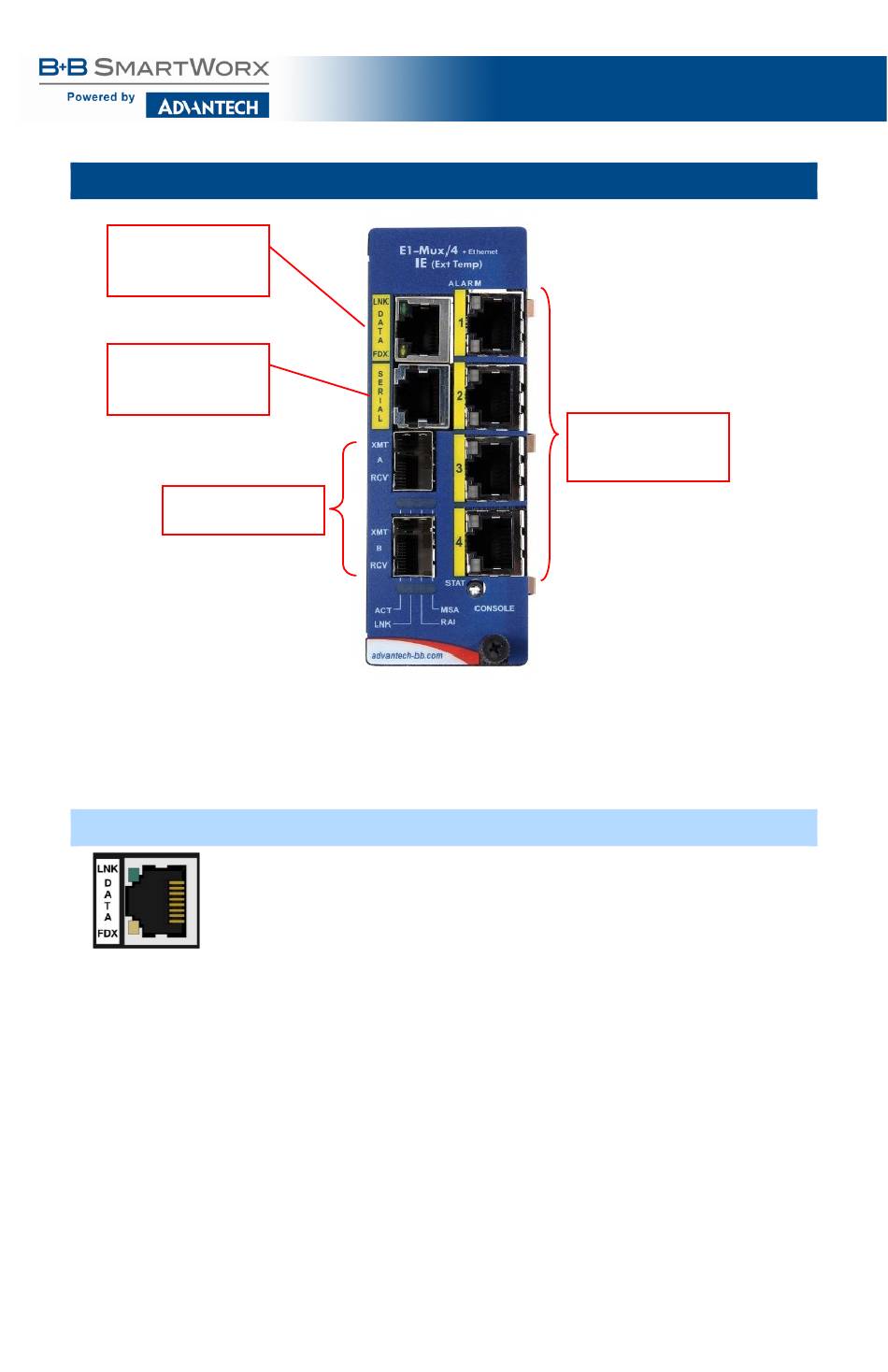

LED OPERATION
10/100BaseT
Connector
RS-232
Connector
SFP Ports
The IE-iMcV-E1-Mux/4 features diagnostic LEDs as explained below.
10/100BASET CONNECTOR
LNK:
FDX:
iMcV-E1-Mux4, Ethernet Enhanced
•
OFF when port is not linked/connected,
•
Glows green when link is established.
•
Blinks green during data activity.
•
OFF when port is not connected or when running at
half-duplex.
•
Glows yellow when port is running at full duplex.
•
Blinks yellow when collisions occur.
10
E1 RJ-48
Connectors
