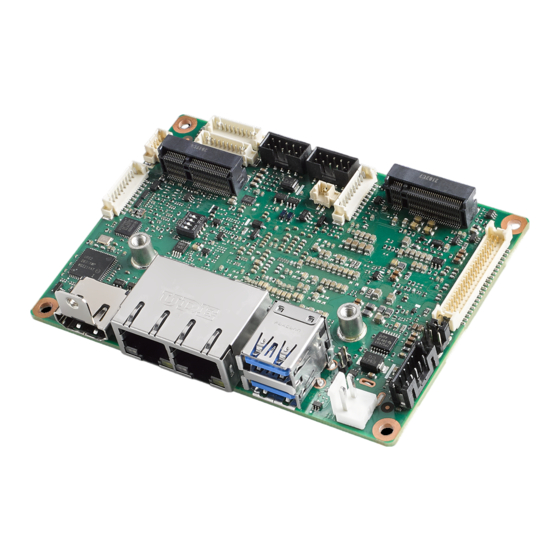

Advantech MIO-2363 User Manual

Intel atom x6000e series 2.5" pico-itx sbc
Hide thumbs Also See for MIO-2363:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
MIO-2363
®
Intel
Atom™ x6000E Series 2.5"
PICO-ITX SBC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIO-2363 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech MIO-2363

Summary of Contents for Advantech MIO-2363

  • Page 1 User Manual MIO-2363 ® Intel Atom™ x6000E Series 2.5" PICO-ITX SBC...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 Product Warranty (2 years) Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation.
  • Page 4 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This type of cable is available from Advantech. Please contact your local supplier for ordering information.
  • Page 5 Before system installation, check that the items listed below are included and in good condition. If any item does not accord with the list, contact your dealer immediately. 1 x MIO-2363 SBC  1 x USB cable 20cm (p/n: 1700030406-01) ...
  • Page 6 MIO-2363 User Manual...

  • Page 7: Table Of Contents

    Specifications....5 Introduction ....................6 Board Layout: Dimensions ................ 6 Figure 2.1 MIO-2363 Mechanical Diagram (Top Side) ....6 Figure 2.2 MIO-2363 Mechanical Diagram (Bottom Side) ... 6 Figure 2.3 MIO-2363 Mechanical Diagram (Coastline) ....7 Figure 2.4 MIO-2363 Mechanical Diagram (with Heatsink) ..7 Quick Installation Guide ................
  • Page 8 Appendix A System I/O Ports ....... 65 System I/O Ports..................66 DMA Channel Assignments ..............66 1st MB Memory Map................67 Interrupt Assignments ................67 MIO-2363 User Manual viii...
  • Page 9 Chapter Introduction...

  • Page 10: Chapter 1 Introduction

    Introduction Advantech MIO-2363 is a 2.5” PICO-ITX form factor SBC (compact series, 100 x 72 ® ® mm; 3.9 x 2.8 in), powered by Intel Atom x6000E series. It provides embedded iManager 3.0, SUSI 4.0, and Advantech’s WISE-DeviceOn to monitor and control system operation effectively and remotely.
  • Page 11 Operating: 40° C @ 95% relative humidity, non-con- Environment densing Humidity Storage: 60° C @ 95%relative humidity, non-condens- Vibration 3.5 Grms Resistance Certification EMC CE, FCC Class B Dimensions 100 x 72 mm (3.9" x 2.8") Mechanical Net Weight MIO-2363 User Manual...

  • Page 12: Block Diagram

    Line-in/out/MIC Intel Elkhart Lake 2 x USB 2.0 Atom x6000E Series eMMC 64/128GB M.2 E-Key PCIe, USB2.0 2230 SATA, USB2.0 256M BIOS M.2 B-Key PCIEx1 2242 eSPI Advantech EIO-211 COM1 COM2 Watchdog GPIO 8b RS-232/422/485 RS-232/422/485 Multi-stage MIO-2363 User Manual...

  • Page 13: Chapter 2 Mechanical Specifications

    Chapter Mechanical Specifications...

  • Page 14: Introduction

    The MI/O compact form factor SBC is a new-generation SBC designed with a variety of mechanical improvements. This chapter includes board dimension and assembly instructions for the standard thermal solution. Board Layout: Dimensions Figure 2.1 MIO-2363 Mechanical Diagram (Top Side) Figure 2.2 MIO-2363 Mechanical Diagram (Bottom Side) MIO-2363 User Manual...
  • Page 15 Figure 2.3 MIO-2363 Mechanical Diagram (Coastline) Figure 2.4 MIO-2363 Mechanical Diagram (with Heatsink) MIO-2363 User Manual...

  • Page 16: Quick Installation Guide

    This section introduces installation of the heatsink, which contains in the white box inside the package. Please assemble it by following diagram. Remember to remove the plastic from thermal pad before assembling. 2.3.1 Heatsink Figure 2.5 MIO-2363 Heatsink Installation Figure 2.6 MIO-2363 Heatsink Installation MIO-2363 User Manual...

  • Page 17: Chapter 3 Installation

    Chapter Installation...

  • Page 18: Jumper & Switches

    USB2.0 Internal Connector LAN1 Dual RJ45 LAN Ports HDMI1 HDMI Connector GPIO1 GPIO Internal Connector M2_1 M.2 Key-E Connector M2_2 M.2 Key-B Connector AUDIO1 Audio Internal Connector BAT1 RTC battery Connector LVDS1 LVDS Connector Panel Inverter Connector MIO-2363 User Manual...

  • Page 19: Locating Connectors

    Locating Connectors Figure 3.1 MIO-2363 Connector Locations (Bottom Side) Setting Jumpers You may configure your card to match the needs of your application by setting jump- ers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.

  • Page 20: Miscellaneous Switch (Sw1)

    OFF: Normal (Default) ON: Load BIOS Default ON: Top Swap Override ENABLE OFF: Top Swap Override DISABLE 3.4.2 Panel Voltage Selection (VDD1) Part Number 1653003260 Description PIN HEADER 3x2P 2.0mm 180D(M) SMD 21N22050 Jumper Short Panel Voltage 3.3V (Default) MIO-2363 User Manual...

  • Page 21: Dc Power Input Connector (Cn7)

    DC Power Input Connector (CN7) Part Number 1655003962 Description WAFER 2P 3.96mm 180D(M) DIP A3963WV2-2P Signal Pin Definition +V24_V12_DC_IN 3.4.4 Audio Internal Connector: AUDIO1 Part Number 1653008214-01 Description BH 2x5P/2.0/PA6T/G-FL/VA(M)/S/BK/H6.05/C+R Signal Pin Definition LOUTR LINR LOUTL LINL FRONT-JD MIC1R MIC1L MIO-2363 User Manual...

  • Page 22: Usb2.0 Internal Connector: Usb2

    3.4.5 USB2.0 Internal Connector: USB2 Part Number 1653008214-01 Description BH 2x5P/2.0/PA6T/G-FL/VA(M)/S/BK/H6.05/C+R Signal Pin Definition +USBV3 +USBV3 USB2_D6- USB2_D5- USB2_D6+ USB2_D5+ 3.4.6 LVDS Connector (LVDS1) MIO-2363 User Manual...
  • Page 23 Part Number 1653008443-01 Description Wafer 2x20P/1.25/PA9T/VA(M)/GFL/S/WH/H4.8/W P Signal Pin Definition +V_LCD +V_LCD +V_LCD +V_LCD LVDS1_0_D0- LVDS1_1_D0- LVDS1_0_D0+ LVDS1_1_D0+ LVDS1_0_D1- LVDS1_1_D1- LVDS1_0_D1+ LVDS1_1_D1+ LVDS1_0_D2- LVDS1_1_D2- LVDS1_0_D2+ LVDS1_1_D2+ LVDS1_0_CLK- LVDS1_1_CLK- LVDS1_0_CLK+ LVDS1_1_CLK+ LVDS0_DDCCLK_AUX+ LVDS0_DDCCLK_AUX- LVDS1_0_D3- LVDS1_1_D3- LVDS1_0_D3+ LVDS1_1_D3+ LVDS1_VCON MIO-2363 User Manual...

  • Page 24: Panel Inverter Connector (Bl1)

    Part Number 1653007905-01 Description Wafer 1X5P/2.0mm/VA/Sn/BK/S/H6.5/C+R Signal Pin Definition +V12_1_INVERTER_0 LVDS1_z_ENABKL EC_LVDS1_z_PWM +V5_1_INVERTER_0 3.4.8 COM Port Internal Connector 1 (COM1) Part Number 1653007728-01 Description Wafer 1x10P/1.25mm/PA/M/VA/WH/Sn/H4.7mm/WO CAP Signal Pin Definition COM1_RI# COM1_DTR# COM1_CTS# COM1_TXD COM1_RTS# COM1_RXD COM1_DSR# COM1_DCD# MIO-2363 User Manual...

  • Page 25: Com Port Internal Connector 2 (Com2)

    Wafer 1x10P/1.25mm/PA/M/VA/WH/Sn/H4.7mm/WO CAP Signal Pin Definition COM2_RI# COM2_DTR# COM2_CTS# COM2_TXD COM2_RTS# COM2_RXD COM2_DSR# COM2_DCD# 3.4.10 GPIO Internal Connector (GPIO1) Part Number 1653007728-01 Description Wafer1x10P/1.25mm/PA/M/VA/WH/Sn/H4.7mm/WO CAP Signal Pin Definition EC_P1_GPIO7 EC_P1_GPIO2 EC_P1_GPIO6 EC_P1_GPIO1 EC_P1_GPIO5 EC_P1_GPIO0 EC_P1_GPIO4 +V5A_GPIO EC_P1_GPIO3 MIO-2363 User Manual...

  • Page 26: I2C Internal Connector (Cn1)

    1655904020 Description WAFER 4P 1.25mm 180D(M) SMD 85205-04001 Signal Pin Definition EC_I2C0_z_DAT EC_I2C0_z_CLK +V5_I2CCONN 3.4.12 Front Panel Internal Connector (CN5) Part Number 1653007728-01 Description cWafer 1x10P/1.25mm/PA/M/VA/WH/Sn/H4.7mm/WO CAP Signal Pin Definition BUZZER- BUZZER+ RDC_CASEOPEN FP_HDD_a_LED# FP_a_PSIN# FP_a_RST# +V3.3 MIO-2363 User Manual...

  • Page 27: Key-E Connector (M2_1)

    3.4.13 M.2 Key-E Connector (M2_1) Part Number 1654012663-01 Description NGFF 75P/0.5mm/(F)/LCP/RA/GFL/S/BK/H8.5mm/E-k Signal Pin Definition +V3.3SB_M.2_E USB2_z_P9+ +V3.3SB_M.2_E USB2_z_P9- M2E1_PCIE_TX+ M2E1_PCIE_TX- PCIE4_RX+ PCIE4_RX- MIO-2363 User Manual...
  • Page 28 CLK_M2E_z_PCIE+ CLK_M2E_z_PCIE- M2E1_SUSCLK PLTRST_BUF# PCIE_a_CLKREQ# BT_DISABLE# PCIE_WAKE# WIFI_DISABLE# +V3.3SB_M.2_E +V3.3SB_M.2_E MIO-2363 User Manual...

  • Page 29: Key-B Connector (M2_2)

    3.4.14 M.2 Key-B Connector (M2_2) Part Number 1654012087-02 Description NGFF 75P/0.5mm/(F)/LCP/RA/GFL/S/BK/H8.50/B-key Signal Pin Definition +3.3V +V3.3SB_M.2_B +V3.3SB_M.2_B +V1.8_DUAL USB2_a_P4+ +V3.3SB_M.2_B USB2_a_P4- +V3.3SB +V1.8_DUAL SATA_PCIE_C_RX+ SATA_PCIE_C_RX- MIO-2363 User Manual...
  • Page 30 SATA_PCIE_C_TX- SATA_PCIE_C_TX+ PLTRST_BUF#_M2B1 PCIE_a_CLKREQ2# CLK100M_M2B1_R_D2- PCIE_WAKE#_M2B1 CLK100M_M2B1_R_D2+ M2B1_RESET#_R M2B1_SUSCLK +V3.3SB +V3.3SB_M.2_B +V3.3SB_M.2_B +V3.3SB_M.2_B +V3.3SB MIO-2363 User Manual...

  • Page 31: Rtc Battery Connector (Bat1)

    3.4.15 RTC Battery Connector (BAT1) Part Number 1655902000 Description WAFER 2P 1.25mm 180D(M) SMD 85205-02001 Signal Pin Definition +VBAT_R MIO-2363 User Manual...
  • Page 32 MIO-2363 User Manual...

  • Page 33: Chapter 4 Ami Bios Setup

    Chapter AMI BIOS Setup...

  • Page 34: Entering Setup

    BIOS supports your CPU. If there is no number assigned to the patch code, please contact an Advantech application engineer to obtain an up-to-date patch code file. This will ensure that your CPU‘s system status is valid.

  • Page 35: Advanced Bios Features Setup

    4.1.1 Advanced BIOS Features Setup Select the Advanced tab from the MIO-2363 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 36 4.1.1.1 RC ACPI Settings Native PCIE Enable  Enable/Disable PCIE Native Control reported in ACPI Table. Native ASPM  Choose ASPM feature is controlled by OS or BIOS. MIO-2363 User Manual...
  • Page 37 This item allows users to set how many processor cores should be active. AP threads Idle Manner  AP threads Idle Manner for waiting signal to run.  Enable/Disable AES (Advanced Encryption Standard). MachineCheck  Enable/Disable Machine Check. MonitorMWait  Enable/Disable MonitorMWait. MIO-2363 User Manual...
  • Page 38 4.1.1.3 Power & Performance CPU – Power Management Control  CPU – Power Management Control Options. GT – Power Management Control  GT – Power Management Control Options. MIO-2363 User Manual...
  • Page 39 Enable/Disable Platform Power Limit 1 programming. Platform PL2 Enable  Enable/Disable Platform Power Limit 1 programming. Power Limit 4 Override  Enable/Disable Power Limit 4 override. C states  Enable/Disable CPU power management. PowerLimit 3 Settings  Power Limit 3 settings. MIO-2363 User Manual...
  • Page 40 3-Core Turbo Ratio Limit Ratio (TRLR) Override  3-Core Turbo Ratio Limit Ratio (TRLR). 4-Core Turbo Ratio Limit Ratio (TRLR) Override  4-Core Turbo Ratio Limit Ratio (TRLR). Energy Efficient Turbo  Enable/Disable Energy Efficient Turbo feature. MIO-2363 User Manual...
  • Page 41 Power Limit 3 Settings Power Limit 3 Override  Enable/Disable Power Limit 3 override. MIO-2363 User Manual...
  • Page 42 GT - Power Management Control RC6 (Render Standby)  Check to enable render standby support. Maximum GT frequency  Maximum GT frequency limited by user. Disable Turbo GT frequency  Enable/Disable Turbo GT frequency. MIO-2363 User Manual...
  • Page 43 ME Unconfig on RTC Clear  When disabled, ME will not be unconfigured on RTC Clear. Core BIOS Done Message  Enable/Disable Core BIOS done message sent to ME. Firmware Update Configuration  Configure management engine technology parameters. MIO-2363 User Manual...
  • Page 44 Enables or disables system ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS. ACPI Sleep State  Selects the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. MIO-2363 User Manual...
  • Page 45 Watch Dog Timer Configuration  Watch dog timer configuration page. Case Open Detection  Enable or disable case open detect function. GPIO Configuration  GPIO configuration settings. ACPI Report Method Configuration  Select ACPI reporting method for EC devices. MIO-2363 User Manual...
  • Page 46 Serial Port 1 Configuration Serial Port  Enable or disable Serial Port (COM). Change Settings  Select an optimal settings for Super IO device. COM Port Mode  COM Port Mode selection. MIO-2363 User Manual...
  • Page 47 Serial Port 2 Configuration Serial Port  Enable or disable Serial Port (COM). Change Settings  Select an optimal settings for Super IO device. COM Port Mode  COM Port Mode selection. MIO-2363 User Manual...
  • Page 48 Hardware Monitor Watch Dog Timer Configuration Watch Dog Timer  Enable or disable watch dog timer function. MIO-2363 User Manual...
  • Page 49 GPIO Configuration GPIO Control Enable  Choose to control GPIO by EC or user override during POST stage. GPIO0/1/2/3/4/5/6/7  Configure GPIO0/1/2/3/4/5/6/7. MIO-2363 User Manual...
  • Page 50 ACPI Report Method for I2C Bus  Select ACPI reporting method for EC I2C Bus. ACPI Report Method for SMBus  Select ACPI reporting method for EC SMBus. ACPI Report Method for GPIO  Select ACPI reporting method for EC GPIO. MIO-2363 User Manual...
  • Page 51 ACPI CPU Shutdown Temperature  Select the critical temperature value that OSPM must shutdown the system. Case Open Detection  Enable or disable Case Open Detect Function. Watch Dog Timer  Enable or disable Watch Dog Timer Function. MIO-2363 User Manual...
  • Page 52 Physical Presence Spec Version  Select to Tell O.S. to support PPI Spec Version 1.2 or 1.3. Device Select  TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM 2.0 devices. MIO-2363 User Manual...
  • Page 53 4.1.1.9 S5 RTC Wake Settings Wake system from S5  Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr:min:sec specified. MIO-2363 User Manual...
  • Page 54 Serial Port Console Redirection Console Redirection  This item allows users to enable or disable console redirection for Microsoft Windows Emergency Management Services (EMS). Console Redirection  This item allows users to configuration console redirection detail settings. MIO-2363 User Manual...
  • Page 55 Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value: for a root port it is 100 ms, for a hub port the delay is taken from hub descriptor. MIO-2363 User Manual...
  • Page 56 4.1.1.12 Network Stack Configuration Network Stack  Enable/disable UEFI Network Stack. 4.1.1.13 NVMe Configuration MIO-2363 User Manual...
  • Page 57 4.1.1.14 SDIO Configuration SDIO Access Mode  Select SD Device access mode in Auto/DMA/PIO. MIO-2363 User Manual...

  • Page 58: Chipset Configuration

    4.1.2 Chipset Configuration Select the Chipset tab from the MIO-2363 setup screen to enter the Chipset BIOS Setup screen. You can display a Chipset BIOS Setup option by highlighting it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this sec- tion.
  • Page 59 Graphics configuration parameters. VT-d  VT-D capability. X2APIC Opt Out  Enable/Disable X2APIC opt out bit. IGD VTD Enable  Enable/Disable IGD VTD. Above 4GB MMIO BIOS assignment  Enable/Disable above 4GB Memory Mapped IO BIOS assignment. MIO-2363 User Manual...
  • Page 60 Page Close Idle Timeout  Page Close Idle Timeout Control. Memory Scrambler  Enable/Disable Memory Scrambler support. Force ColdReset  Force ColdReset or choose MrcColdBoot mode. In-Band ECC  Enable/Disable In-Band ECC. Memory Remap  Enable/Disable memory remap above 4GB. MIO-2363 User Manual...
  • Page 61 Select DVMT 5.0 Pre-Allocated (fixed) graphics memory size used by the inter- nal graphics device. DVMT Total Gfx Mem  Select DVMT 5.0 total graphic memory size used by the internal graphics device. Boot Display Control  Boot display control. MIO-2363 User Manual...
  • Page 62 Color depth and data packing format for Non-EDID support. Dual LVDS Mode  Select LVDS bus to single bus mode or dual bus mode. LVDS Panel Type  This item allow user to select LVDS panel resolution type. MIO-2363 User Manual...
  • Page 63 Enable or disable onboard LAN2’s PXE option ROM. PCIE Wake  Enable or disable PCIE to wake the system from S5. Restore AC Power Loss  Specify what state to go to when power is re-applied after a power failure (G3 state). MIO-2363 User Manual...
  • Page 64 Enable/Disable PCH PCI Express clock gating for each root port. PCIe function swap  When disabled, prevents PCIE root port function swap. If any function other than 0 is enabled, 0 will become visible. PCI Express Root Port 5/7  PCI Express Port 5/7 settings. MIO-2363 User Manual...
  • Page 65 Enable/disable SATA device. SATA Mode Selection  Determine how SATA controllers operate. Aggressive LPM Support  Enabled PCH to aggressively enter link power state. SATA Controller Speed  Indicates the maximum speed the SATA controller can support. MIO-2363 User Manual...
  • Page 66  Selectively Enable/Disable the corresponding USB Port from reporting a device connection to the controller. USB SS Physical Connector #1/2/3/4  Enable/disable this USB Physical Connector. USB HS Physical Connector #1/2/3/4/5/6/7/10  Enable/disable this USB Physical Connector. MIO-2363 User Manual...
  • Page 67 Enable will lock bytes 38h-3Fh in the lower/upper 128-byte bank of RTC RAM. BIOS Lock  Enable or disable the PCH BIOS Lock Enable feature. Force unlock on all GPIO pads  If Enabled BIOS will force all GPIO pads to be in an unlock state. MIO-2363 User Manual...
  • Page 68 HD Audio Configuration HD Audio  Control detection of the HD-Audio device. Disabled = HDA will be uncondition- ally disabled. Enabled = HDA will be unconditionally Enabled. MIO-2363 User Manual...
  • Page 69 5.1 HS400 Mode  Enable or disable SCS eMMC 5.1 HS400 mode. Enable HS400 software tuning  Software tuning should improve eMMC HS400 stability at the expense of boot time. Driver Strength  Sets I/O driver strength. MIO-2363 User Manual...

  • Page 70: Security

    4.1.3 Security Select Security Setup from the MIO-2363 Setup main BIOS setup menu. All Security Setup options, such as password protection and virus protection are described in this section. To access the sub menu for the following items, select the item and press <Enter>:...

  • Page 71: Boot

    Boot Option #1  Sets the system boot order. Fast Boot  Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options. MIO-2363 User Manual...

  • Page 72: Save & Exit

    This item allows you to save the changes done so far as user defaults. Restore User Defaults  This item allows you to restore the user defaults to all the options. Boot Override  Boot device select can override your boot priority. MIO-2363 User Manual...

  • Page 73: Appendix A System I/O Ports

    Appendix System I/O Ports...

  • Page 74: System I/O Ports

    680h-69Fh Motherboard resources A00h-AFFh Motherboard resources 164Eh-164Fh Motherboard resources 1800h-18FFh Motherboard resources CF9h-CF9h Reset Generator DMA Channel Assignments Channel Function 0 Available 1 Available 2 Available 3 Available 4 Direct memory access controller 5 Available 6 Available 7 Available MIO-2363 User Manual...

  • Page 75: 1St Mb Memory Map

    IRQ4 Communications Port (COM1) IRQ5 EC Watch Dog IRQ6 CANBus Controller IRQ7 Available IRQ8 System CMOS/real time clock IRQ9 Microsoft ACPI-Compliant System IRQ10 Available IRQ11 Display Controller IRQ12 Available IRQ13 Numeric data processor IRQ14 Reserved IRQ15 Reserved MIO-2363 User Manual...
