CS2 OR OUTPUT CURRENT SETTING

The output current settings window is accessed using the 'CS2 Settings' block. This window also features trimming registers,
line impedance feature, threshold for over current protection (OCP), the light load threshold, and constant current mode.
The following waveforms display some of the features that can be programmed using this window.
A. Over Current Protection (OCP): Figure 30 and Figure 31 show hysteretic and latching OCP respectively.
An over current condition can be easily created by shorting the load or increasing the output current beyond the OCP
limit. Different reactions to the fault can be programmed by either re-enabling the PSU after 1 second or a complete
shutdown through the drop down menus in the GUI.

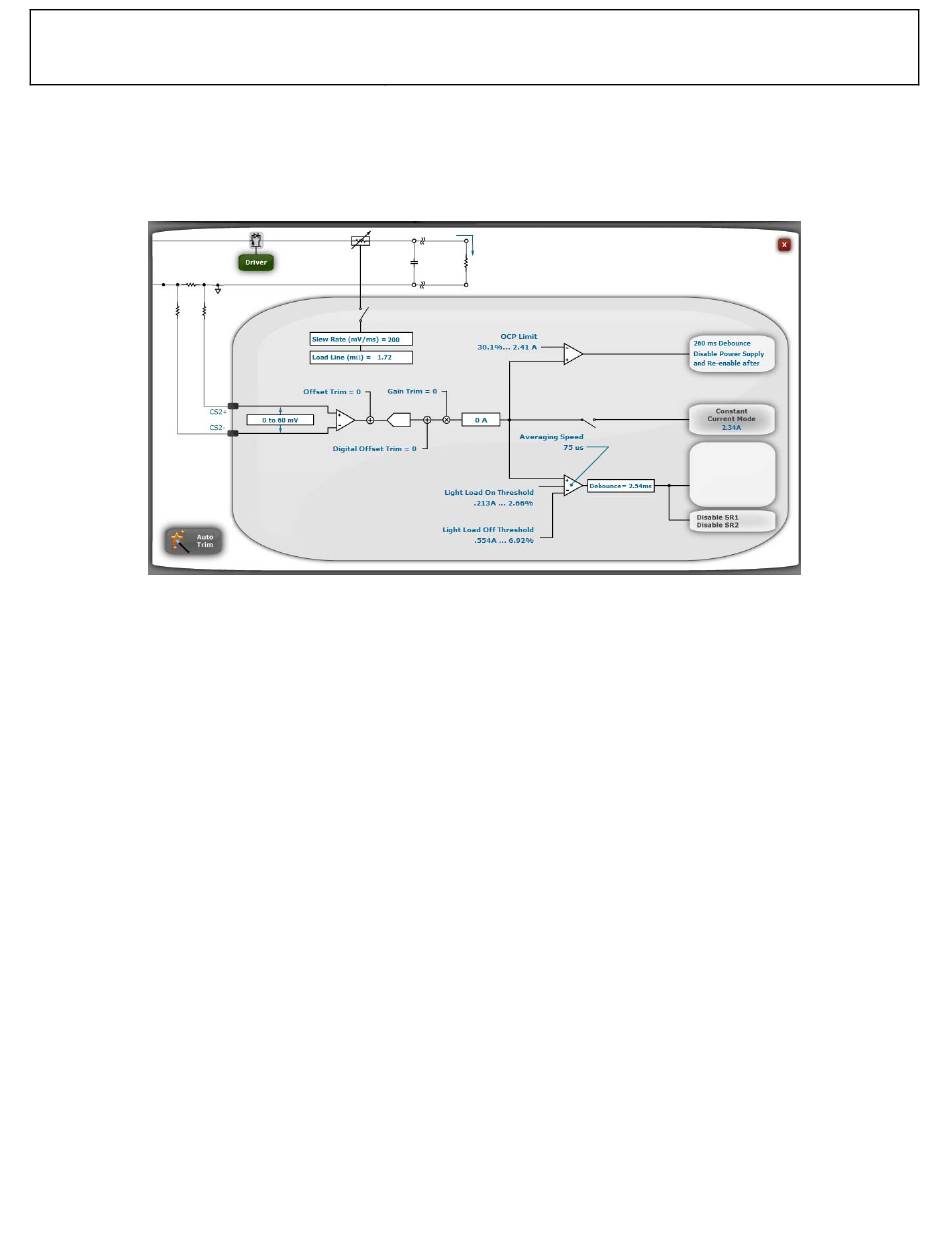

Figure 29 – CS2 Settings window
