Application Diagram

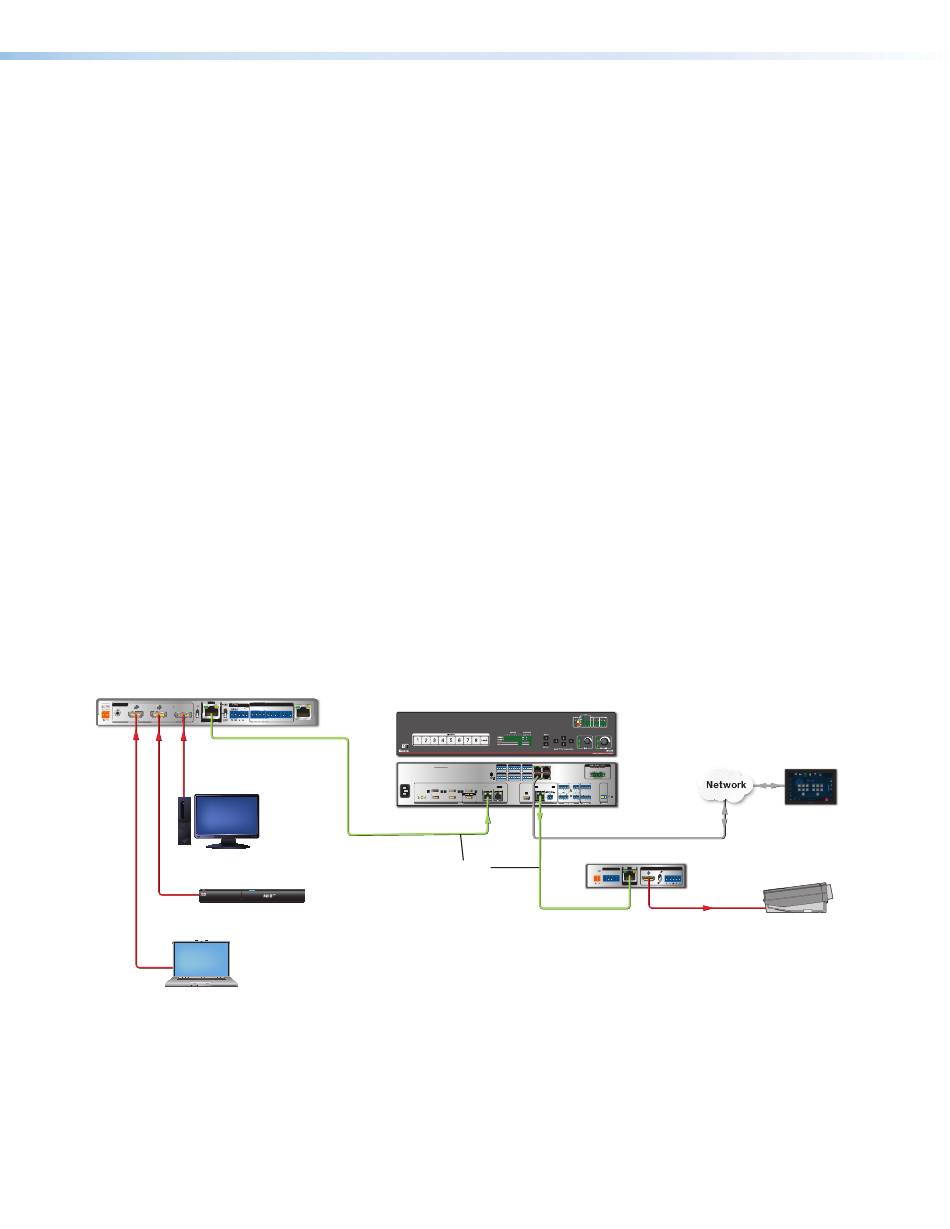

Figure 1 shows a typical application for a DTP2 T 203.
Extron
DTP2 T 203
Switcher
POWER INPUTS SEND SIG LINK
HDBT OVER TP
12V 1 2 3 POWER
AUDIO
1.5A MAX
RS-232 IR CONTACT IN
HDMI HDMI DP OFF OUT DTP Tx Rx G Tx Rx 1 2 3 G
DisplayPort to HDMI
PC
HDMI
Blu-Ray
HDMI
Laptop
Figure 1.
Contact closure remote control with tally output — Allows for remote selection of
an input channel, while a tally output provides +5 VDC to light an LED to indicate the
currently selected input.
Compatible with TeamWork Show Me Cables — Show Me cables provide
convenient connectivity and user input selection and control for TeamWork
Collaboration Systems.
Front panel USB configuration port — Enables easy configuration without having to
access the rear panel.
LED indicators for signal presence, HDCP, power, and link status — Provides
visual indication of system status for real‑time feedback and monitoring of key
performance parameters.
RJ-45 signal and link LED indicators for DTP port — Provide a means for validating
signal flow and operation, allowing quick identification of connectivity issues.
Easy setup and commissioning with the Extron Product Configuration Software
(PCS) — Conveniently configure multiple products using a single software application.
Includes LockIt HDMI cable lacing brackets — LockIt lacing brackets are used to
secure HDMI cables connected to the HDMI input and output connectors, preventing
accidental disconnection of the cables.
External Extron Everlast power supply included — Provides worldwide power
compatibility with high‑demonstrated reliability and low‑power consumption.
Extron Everlast power supply is covered by a 7-year parts and labor warranty.
IN1808 IPCP SA
LAN
REMOTE REMOTE REMOTE
TALLY OUT RS-232
CONTACT IN CONTACT IN TALLY OUT TALLY OUT RS-232 RS-232
1 2 3 + V Tx Rx G
1 1 2 2 3 3 G G 1 1 2 2 3 + V 3 +V Tx Tx Rx Rx G G
IN1808 IPCP SA
2 2
100-240V 50/60 Hz
--A MAX
XTP DTP 24 Cable
330'
Typical Application of DTP2 T 203
COM 1 COM 2 COM 3 DIGITAL I/O AV LAN 2 AV LAN 3
Tx Rx G RTS CTS Tx Rx G Tx Rx G 1 2 3 4 G
IR/SERIAL RELAYS eBUS
1 2 1 2 C 3 4 C +V -S +S G
R R R R R R R R R R R R R R R R R R R R R R R R
S G S G PWR OUT = 6W LAN AV LAN 1
DTP2/XTP DTP2/XTP
DTP2/XTP/HDBT DTP2/XTP/HDBT
1A 1A 1B 1B
RS-232 RESET
Tx Rx G
Ethernet
DTP2 R 211
SIG LINK
POWER OVER DTP2 OUTPUTS
12V AUDIO
0.8A MAX RS-232 IR L
Tx Rx G Tx Rx DTP2 IN
DTP2 T 203 • Introduction
TLP Pro 1025M
R
HDMI
Projector
4
