LockIt Lacing Brackets
®
Use the included LockIt Lacing Brackets to securely fasten both HDMI cables as follows.
Plug the HDMI cable into the panel connection.
1.
Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing
2.
bracket to be placed over it. The screw does not have to be removed.
Place the LockIt lacing bracket on the screw and against the HDMI connector, then tighten the
3.
screw to secure the bracket.
ATTENTION: Do not overtighten the HDMI connector mounting screw. The shield it fastens to
is very thin and can easily be stripped.
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as
4.
shown.
While holding the connector securely against the lacing bracket, use pliers or similar tools to
5.
tighten the tie wrap, then remove any excess length.

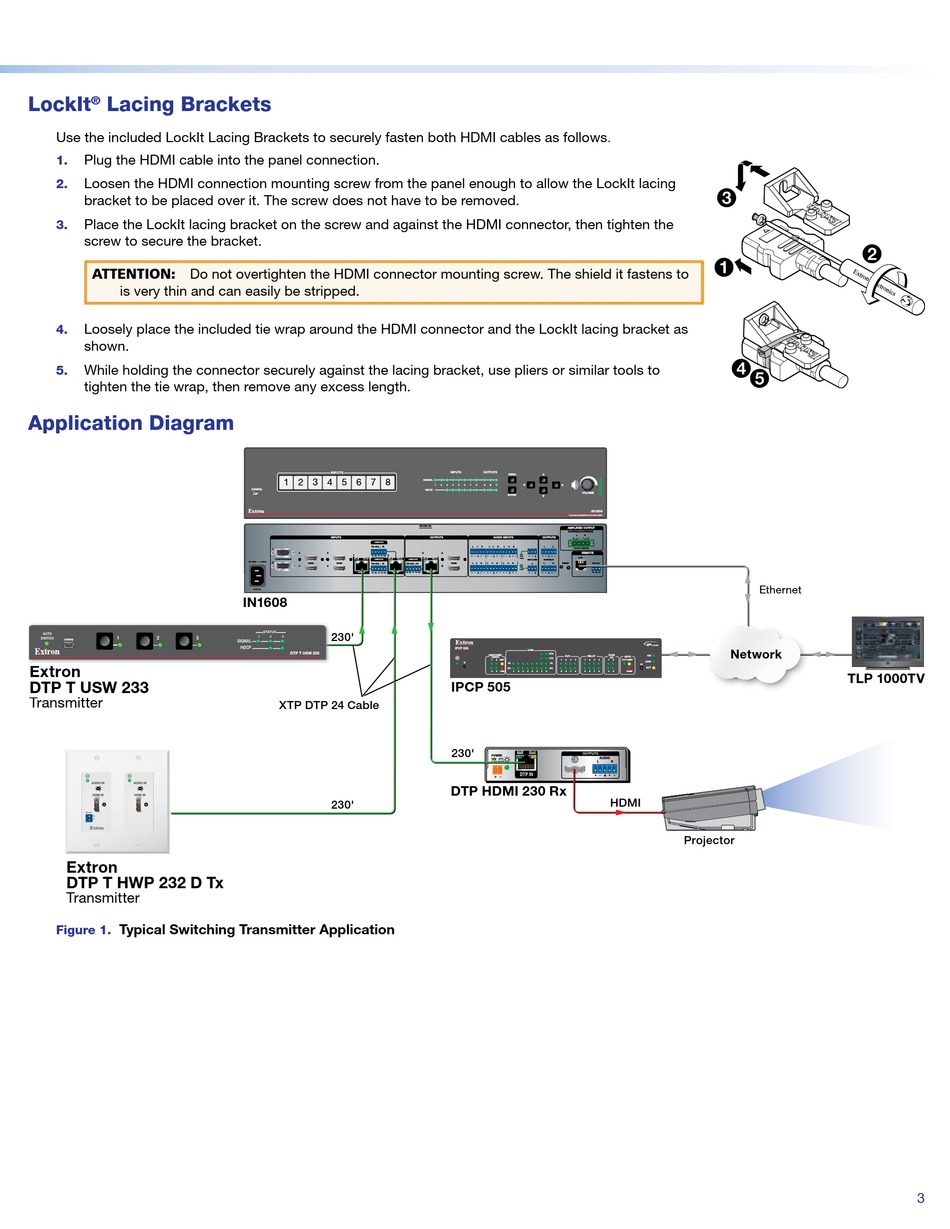

Application Diagram
