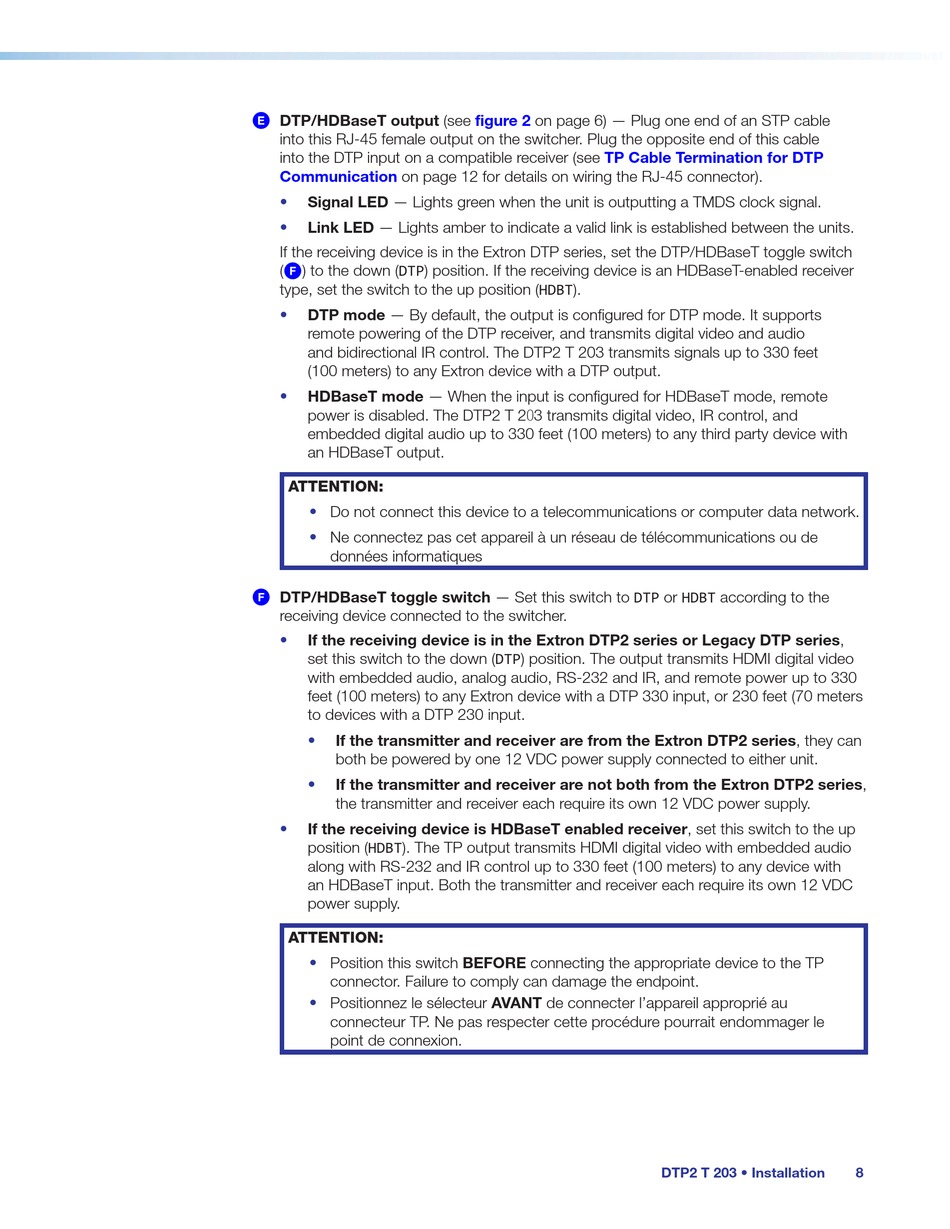

DTP/HDBaseT output (see
E
into this RJ‑45 female output on the switcher. Plug the opposite end of this cable
into the DTP input on a compatible receiver (see
Communication
on page 12 for details on wiring the RJ‑45 connector).
•
Signal LED — Lights green when the unit is outputting a TMDS clock signal.
Link LED — Lights amber to indicate a valid link is established between the units.
•
If the receiving device is in the Extron DTP series, set the DTP/HDBaseT toggle switch
(
) to the down (DTP) position. If the receiving device is an HDBaseT‑enabled receiver
F
type, set the switch to the up position (HDBT).
DTP mode — By default, the output is configured for DTP mode. It supports
•
remote powering of the DTP receiver, and transmits digital video and audio
and bidirectional IR control. The DTP2 T 203 transmits signals up to 330 feet
(100 meters) to any Extron device with a DTP output.
•
HDBaseT mode — When the input is configured for HDBaseT mode, remote
power is disabled. The DTP2 T 203 transmits digital video, IR control, and
embedded digital audio up to 330 feet (100 meters) to any third party device with
an HDBaseT output.
ATTENTION:
•
Do not connect this device to a telecommunications or computer data network.
•
Ne connectez pas cet appareil à un réseau de télécommunications ou de
données informatiques
DTP/HDBaseT toggle switch — Set this switch to DTP or HDBT according to the
F
receiving device connected to the switcher.
If the receiving device is in the Extron DTP2 series or Legacy DTP series,
•
set this switch to the down (DTP) position. The output transmits HDMI digital video
with embedded audio, analog audio, RS‑232 and IR, and remote power up to 330
feet (100 meters) to any Extron device with a DTP 330 input, or 230 feet (70 meters
to devices with a DTP 230 input.
If the transmitter and receiver are from the Extron DTP2 series, they can
•
both be powered by one 12 VDC power supply connected to either unit.
•
If the transmitter and receiver are not both from the Extron DTP2 series,
the transmitter and receiver each require its own 12 VDC power supply.
•
If the receiving device is HDBaseT enabled receiver, set this switch to the up
position (HDBT). The TP output transmits HDMI digital video with embedded audio
along with RS‑232 and IR control up to 330 feet (100 meters) to any device with
an HDBaseT input. Both the transmitter and receiver each require its own 12 VDC
power supply.
ATTENTION:
•
Position this switch BEFORE connecting the appropriate device to the TP
connector. Failure to comply can damage the endpoint.
•
Positionnez le sélecteur AVANT de connecter l'appareil approprié au
connecteur TP. Ne pas respecter cette procédure pourrait endommager le
point de connexion.
figure 2
on page 6) — Plug one end of an STP cable
TP Cable Termination for DTP
DTP2 T 203 • Installation
8
