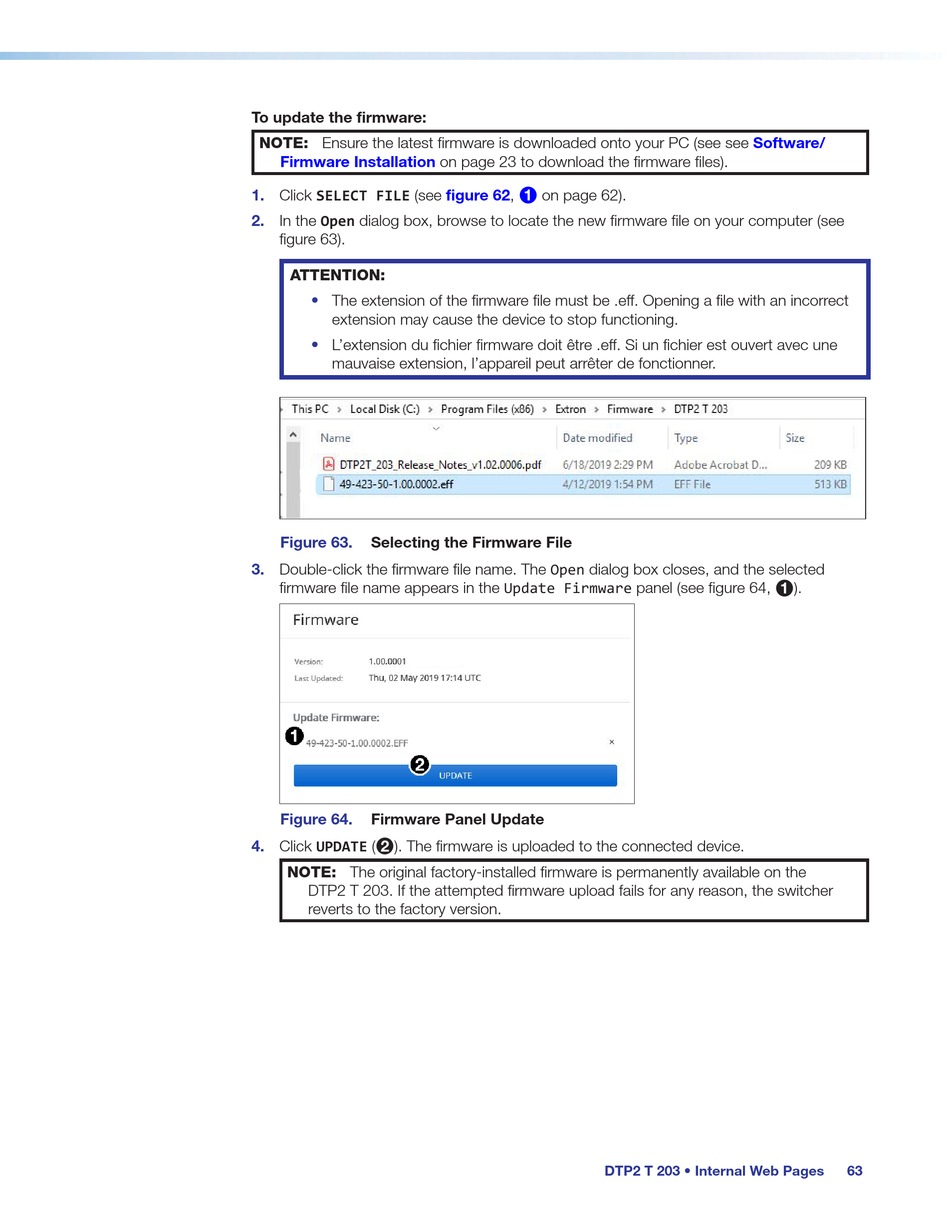

Extron electronics DTP2 T 203 User Manual page 71

To update the firmware:
NOTE: Ensure the latest firmware is downloaded onto your PC (see see
Firmware Installation
1. Click SELECT FILE (see figure 62,
2. In the Open dialog box, browse to locate the new firmware file on your computer (see
figure 63).
ATTENTION:
• The extension of the firmware file must be .eff. Opening a file with an incorrect
extension may cause the device to stop functioning.
• L'extension du fichier firmware doit être .eff. Si un fichier est ouvert avec une
mauvaise extension, l'appareil peut arrêter de fonctionner.
Figure 63. Selecting the Firmware File
3. Double‑click the firmware file name. The Open dialog box closes, and the selected
firmware file name appears in the Update Firmware panel (see figure 64,
Figure 64. Firmware Panel Update
4. Click UPDATE ( ). The firmware is uploaded to the connected device.
2
NOTE: The original factory‑installed firmware is permanently available on the
DTP2 T 203. If the attempted firmware upload fails for any reason, the switcher
reverts to the factory version.
on page 23 to download the firmware files).
on page 62).
1
DTP2 T 203 • Internal Web Pages
Software/
).
1
63
