TRANSPORT

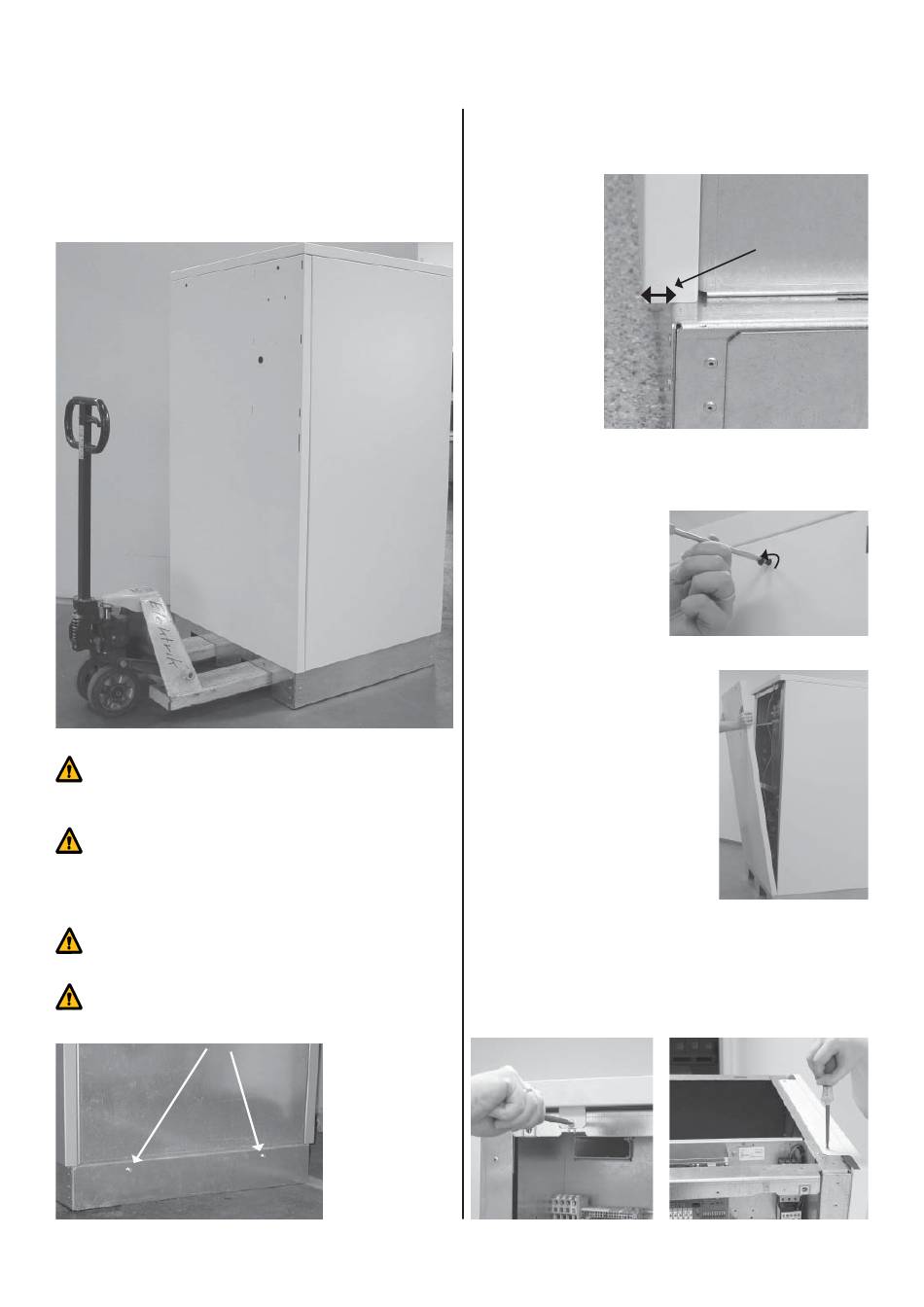

Transport with the lift truck
To avoid transportation damage, the heat pump should be
transported with a lift truck or a pallet truck. Transport the
device in packed condition to the fi nal destination. The lift
truck may be shifted directly in the two openings of the
pedestal.
To avoid damage, the heat pump must not
be inclined by more than 45° during the
transportation.
The components and pipework of the refrigera-
tion circle, the heating side and the heat source
side must on no account be used for lifting pur-
poses.
Consider the weight of the heat pump! (See
product information technical data sheet)
Close the two openings for the lift truck with the
cover plates (two screws each).
4
Transport with the lift truck
Please close
the transport
openings for
silencing!
- Subject to Technical Modifi cations -
To go through narrow passages, you can remove the
side panels to reduce the total device width by about
4 cm.
If you want to reduce the device width:
1. Open the quick-release
screws on the front plate
by turning anticlockwise
(90°).
2. Lift the front panel and put it
down safely.
3. Open the two screws of the cover plate and lift the
cover plate.
4. Now, you can unscrew the side panels from the top.
Lift the side panels and put them down.
3.
Each side panel
overlaps outside
by 2 cm.
4.
