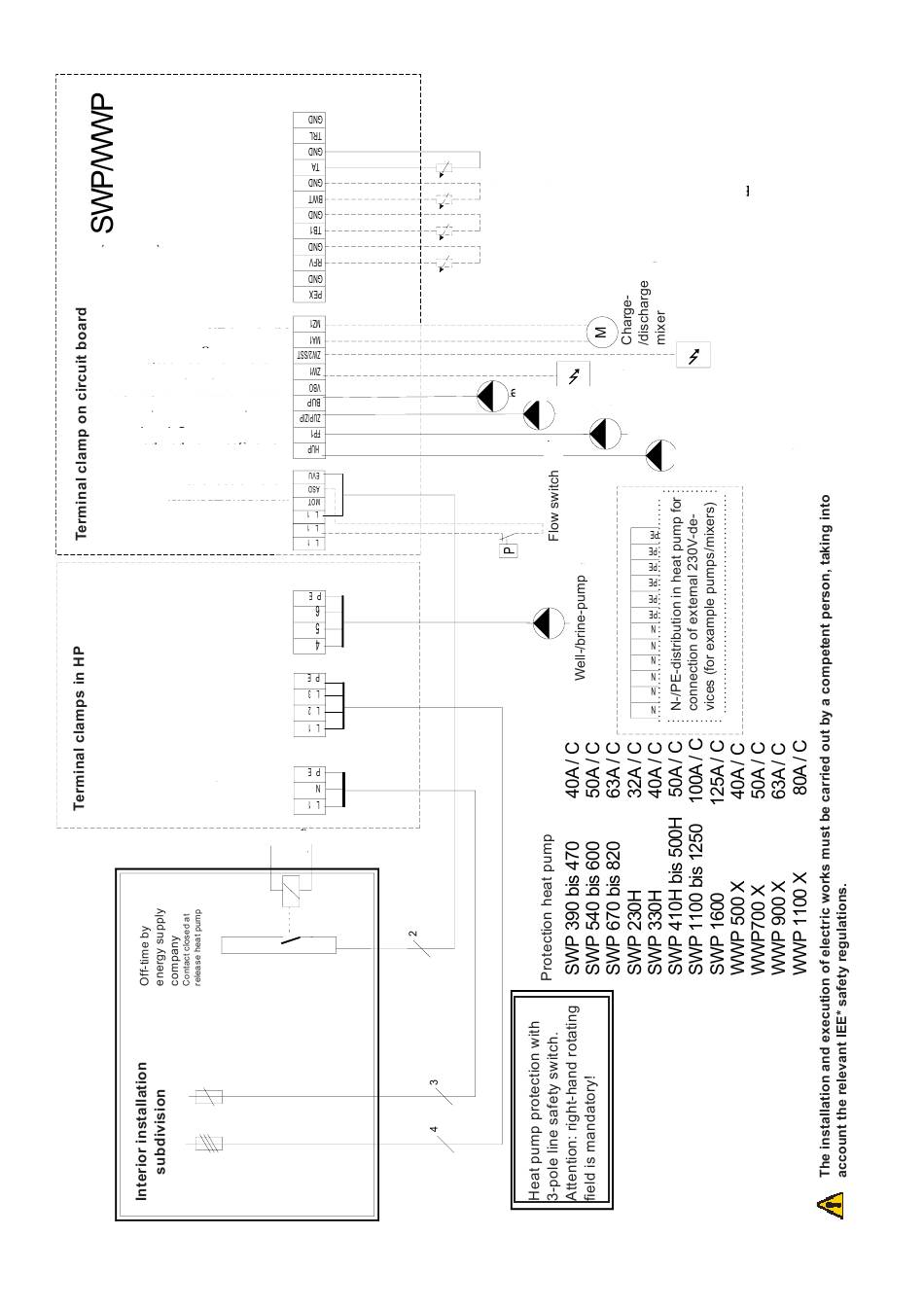

TERMINAL CONNECTION DIAGRAM

V.831115
External return sensor
(
Room remote control
accessories
Mixer1 Closed
Mixer 1 Open
Heatgenerator2 / global error
Second
heatgenerator1
Brine circulating pump
Sanitary water circulating pump
Suppl.-/circulating pump
Floor heating heat pump
Heating circulating pump
Off-time by energy supply company
Flow switch
Motor circuit switch
Load compressor
3 x 400 V
Control 230V
12
)
EVU-
off-
time
- Subject to Technical Modifi cations -
Outdoor sensor
Sanitary water sensor/-thermostat (accessories)
Sensor mixer 1 (accessories)
Room remote control (accessories)
Second
Sanitary water circulating pump
Suppl.-/circulating pump
Pump for discharge mixer
Heatgenerator2 / alterna-
tive global error
heatgenerator1
Heating circulating pump
