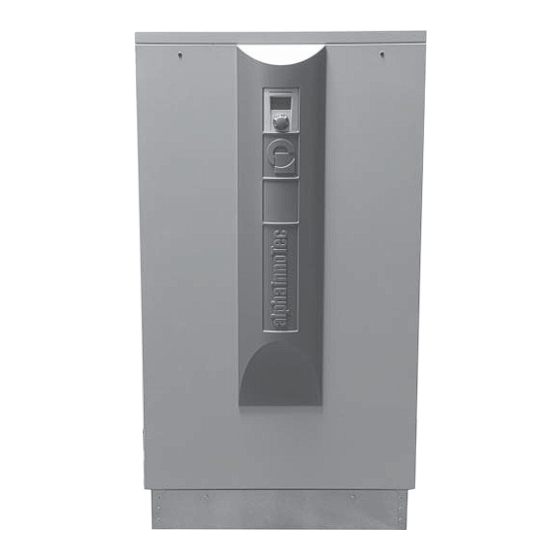

Alpha-InnoTec Solterra SWP 390 Instruction Manual

Alpha-InnoTec Solterra SWP 390 Instruction Manual

Brine/water heat pumps indoor installation
Hide thumbs Also See for Solterra SWP 390:

Advertisement

Quick Links

Alpha-InnoTec GmbH
Industriestrasse 3, D-95359 Kasendorf
Tel.: +49 (0)9228 99060
Fax.: +49 (0)9228 990629
www.alpha-innotec.de
e-mail:info@alpha-innotec.de
INSTRUCTION MANUAL
DEVICE INFORMATION
Brine / Water Heat pumps
Indoor Installation
This instruction manual is part of the scope of supply
and must be handed over to the user of the plant. Please
keep safely and show to authorized service-technicians, if
necessary.
Professionell
SWP 390
SWP 540
SWP 670
SWP 820
Heating and
Cooling Systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solterra SWP 390 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alpha-InnoTec Solterra SWP 390

  • Page 1 Heating and Alpha-InnoTec GmbH Cooling Systems Industriestrasse 3, D-95359 Kasendorf Tel.: +49 (0)9228 99060 Fax.: +49 (0)9228 990629 www.alpha-innotec.de e-mail:info@alpha-innotec.de INSTRUCTION MANUAL DEVICE INFORMATION Professionell Brine / Water Heat pumps Indoor Installation SWP 390 SWP 540 SWP 670 SWP 820 This instruction manual is part of the scope of supply and must be handed over to the user of the plant.
  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS In general, the following recommendations are referred to page in this instruction manual. Safety Instructions Safety instructions. Important! Please observe! General Please observe advice referring to functioning and operating method! Scope of Supply Reference to instruction manual of the heat pump Transport / Installation controller Assembly Hydraulics...
  • Page 3: General

    SCOPE OF SUPPLY GENERAL General Scope of Supply • Compact device with fully hermetic compressor and Operative range all safety relevant components for refrigeration circle monitoring. The heat pump is designed exclusively for the heating of • heating circuit water and service water. In accordance with Integrated heat pump- and heating installation-controller the application limits (see “Technical Details”...
  • Page 4: Transport / Installation

    TRANSPORT Transport with the lift truck To avoid transport damages, the heat pump should be To go through transported to the fi nal destination entirely packed. After narrow pas- removing the wooden supports, the lift truck may be shif- sages, remo- ted directly into the two openings of the basement.
  • Page 5 INSTALLATION 3. Open the two front screws of the roof sheeting to be Installation plan: able to remove it. heating suplly point/ Heizungsanschluss/ Wärmequellenanschluss heat source supply point heat pump Wärmepumpe operating side Bedienseite free space for service Schraffierte Fläche purposes Freiraum für Servicezwecke free space above the coverfor...
  • Page 6: Assembly Hydraulics

    ASSEMBLY HYDRAULICS The hydraulic supply points are at the back Heat source supply point: of the device: The heat source installation must be designed according to the prescriptions in the project planning manual. Please pay particular attention to the following items: •...
  • Page 7 ASSEMBLY HYDRAULICS Hydraulic integration of the heat source Legend 13. Refrigeration isolation of the wall penetration and all brine- 1. Heat pump bearing parts in the building according to DIN 4140-2. 3. Flexible connections (tubes, rubber expansion joints) 14. Gas tube PE-MRS8 PN10 maximum length for both gas 4.
  • Page 8: Heating Circuit Water Supply Point

    ASSEMBLY HYDRAULICS The hydraulic supply points are on the back Heating circuit water supply point: of the device: The heating system must be very well rinsed before connecting the heat pump to prevent that eventual contaminations inside the heating system may disturb the function of the heat pump. heating circuit water output (fl...
  • Page 9 ASSEMBLY HYDRAULICS Hydraulic integration of the heating side of a monova- lent brine/water heat pump with service water heating Legend 10. Return valve 1. Heat pump with integrated heat pump- and heating controller 11. Thermostatic valve / single room temperature control as well as fl...
  • Page 10: Electric Supply

    ELECTRIC SUPPLY The cable routing goes from the backside through the cable duct in the central control room. The strain relief is on the backside. The terminal strips are situated in the central control room. Top right, you see the phase guard, shining green when the tension is correct and shining red whenever there is a left-hand rotating fi...
  • Page 11: Operating Device

    THE OPERATING DEVICE Assembly of the operating device Hang up the ope- rating device in the square spaces, screw it down and put in the cable During the transport, the operating device is stored on the from the bottom. sandwich plate. The appropriate coiled up cable is stored top right and is already clipped on the circuit board.
  • Page 12: Terminal Connection Plan

    TERMINAL CONNECTION PLAN external return sensor outdoor sensor service water sensor/-thermostat sensor mixer / (accessories) room station / (accessories) remote setting control(accessories) mixer1 CLOSED loading/discharge mixer mixer 1 OPEN second heat generator 2 heat generator2 / collective fault. (as an alternative collective fault) ZW2SST second heat generator...
  • Page 13: Start Up / Maintenance / Trouble Shooting

    START UP / MAINTENANCE / TROUBLE SHOOTING Start up The heat pump will be started up by the heat pump controller; the start up must be carried out by an authorized qualifi ed service technician. For this, fi ll in the notice of completion (NOC - see page 31) and fax it to the manufacturer Before the start up, please check the following: 1.
  • Page 14: Technical Details

    TECHNICAL DETAILS SWP 390 V.813131 Heat pump type Brine / Water Conformity Installation Indoor Protection IP24 Power data Heating power/COP B0/W35 acc. to EN255 kW/- 38,2 / 4,1 (20,2 / 4,4) B0/W50 acc. to EN255 kW/- 38,3 / 3,0 (20,3 / 3,1) B-5/W35 acc.
  • Page 15 TECHNICAL DETAILS SWP 540 V.813133 Brine / Water Heat pump type Conformity Installation Indoor Protection IP24 Power data 54,4 / 4,2 (28,8 / 4,4) Heating power/COP B0/W35 acc. to EN255 kW/- B0/W50 acc. to EN255 kW/- 54,5 / 3,0 (28,9 / 3,1) B-5/W35 acc.
  • Page 16 TECHNICAL DETAILS SWP 670 V.813130 Brine / Water Heat pump type Conformity Installation Indoor Protection IP24 Power data Heating power/COP B0/W35 acc. to EN255 kW/- 67,6 / 4,2 (36 / 4,4) B0/W50 acc. to EN255 kW/- 67,7 / 3,0 (36 / 3,1) B-5/W35 acc.
  • Page 17 TECHNICAL DETAILS SWP 820 V.813135 Brine / Water Heat pump type Conformity Indoor Installation Protection IP24 Power data Heating power/COP B0/W35 acc. to EN255 kW/- 81,9 / 4,2 (43,4 / 4,4) 82,0 / 3,0 (43,5 / 3,1) B0/W50 acc. to EN255 kW/- 73,5 / 3,8 (39 / 3,8) B-5/W35...
  • Page 18: Heating Power

    HEATING POWER SWP 390 V.811131 heating power (kW) Heizleistung (kW) SWP 390 temperature 50°C 2 compressors Vorlauf 50°C 2 Verdichter fl ow temperature 35°C 2 compressors Vorlauf 35°C 2 Verdichter fl ow temperature 35°C 1 compressor Vorlauf 35°C 1 Verdichter fl...
  • Page 19 HEATING POWER SWP 540 V.811133 heating power (kW) Heizleistung (kW) SWP 540 temperature 50°C 2 compressors Vorlauf 50°C 2 Verdichter fl ow temperature 35°C 2 compressors Vorlauf 35°C 2 Verdichter fl ow temperature 35°C 1 compressor Vorlauf 35°C 1 Verdichter fl...
  • Page 20 HEATING POWER SWP 670 V.811134 heating power (kW) Heizleistung (kW) SWP 670 temperature 50°C 2 compressors Vorlauf 35°C 2 Verdichter fl ow temperature 35°C 2 compressors Vorlauf 50°C 2 Verdichter fl ow temperature 35°C 1 compressor Vorlauf 35°C 1 Verdichter fl...
  • Page 21 HEATING POWER SWP 820 V.811135 heating power (kW) Heizleistung (kW) SWP 820 temperature 50°C 2 compressors Vorlauf 50°C 2 Verdichter fl ow temperature 35°C 2 compressors Vorlauf 35°C 2 Verdichter fl ow temperature 35°C 1 compressor Vorlauf 35°C 1 Verdichter fl...
  • Page 22: Pressure Drop Curve

    PRESSURE DROP CURVES SWP 390-I to SWP 820-I V.812116 pressure drop heat pump (bar) Druckverlust Wärmepumpe (bar) SWP 390 SWP 540 SWP 670/820 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 fl ow rate heating circuit water (m3/h) Heizwasservolumenstrom (m pressure drop heat pump (bar) Druckverlust Wärmepumpe (bar) SWP 540...
  • Page 23: View Plan

    VIEW PLAN front view V.819103 Vorderansicht 1690 1447 operating Bedienteil device rear view heating circuit water out- Rückansicht Heizwasser Austritt put (fl ow) R 2” AG (Vorlauf) R 2" AG Elektroeingang electric input 1578 Zugentlastungen strain relief 1394 1391 heat source input R 2“ AG Wärmequelle 1148 Eintritt R 2"...
  • Page 24: Circuit Diagram

    CIRCUIT DIAGRAM PART 1 V.817233-1 - Subject to Technical Modifi cations - 830109GB/141111...
  • Page 25 CIRCUIT DIAGRAM PART 2 V.817233-2 830109GB/141111 - Subject to Technical Modifi cations -...
  • Page 26 CIRCUIT DIAGRAM PART 3 V.817233-3 sensor mixing circle 1 - Subject to Technical Modifi cations - 830109GB/141111...
  • Page 27: Ce-Declaration Of Conformity

    EC-Declaration of Conformity The undersigned hereby confirms that the device(s) referred to hereinafter - in the execution brought into circulation by us - complies / comply with the harmonized CE-directives, CE-safety standards and product-specific CE-standards. In case of a modification of the device(s) not agreed with us, this declaration is no more valid.
  • Page 28: Guarantee Conditions

    (for example connection, process- Alpha-Innotec GmbH Deutschland ing. Hereby, we accept this assignment. Industriestrasse 3...
  • Page 29: Notice Of Completion

    NOTICE OF COMPLETION FAX TO † MANUFACTURER’S After-Sales-Service Alpha-InnoTec (D) +49 92 28 99 06 29 † MANUFACTURER’S After-Sales-Service Alpha-InnoTec (A) +43 66 288 78 48 40 † MANUFACTURER’S After-Sales-Service Alpha-InnoTec (CH) +41 62 74 82 001 † MANUFACTURER’S After-Sales-Service Alpha-InnoTec (NL) +31 77 39 86 883 †...
  • Page 30 ROUGH CHECK-LIST / NOTE OF COMPLETION FOR HEAT PUMP INSTALLATION Heat Source Air † Ducts connected and impenetrable o.k. † Weather protective grids installed o.k. † Sense of rotation fan o.k. Heat Source Brine or Water † Heat source volume rate o.k.
  • Page 31 830109GB/141111 - Subject to Technical Modifi cations -...
  • Page 32 Alpha-InnoTec GmbH Industriestrasse 3 best practice in heatpumps D-95359 Kasendorf Tel.: +49 (0)9228 9906 0 Fax.: +49 (0)9228 9906 29 e-mail: info@alpha-innotec.de Certified Qualitty Kasendorf Company seat In view of offering the heat pump installation operators highest possible security and quality, the...
