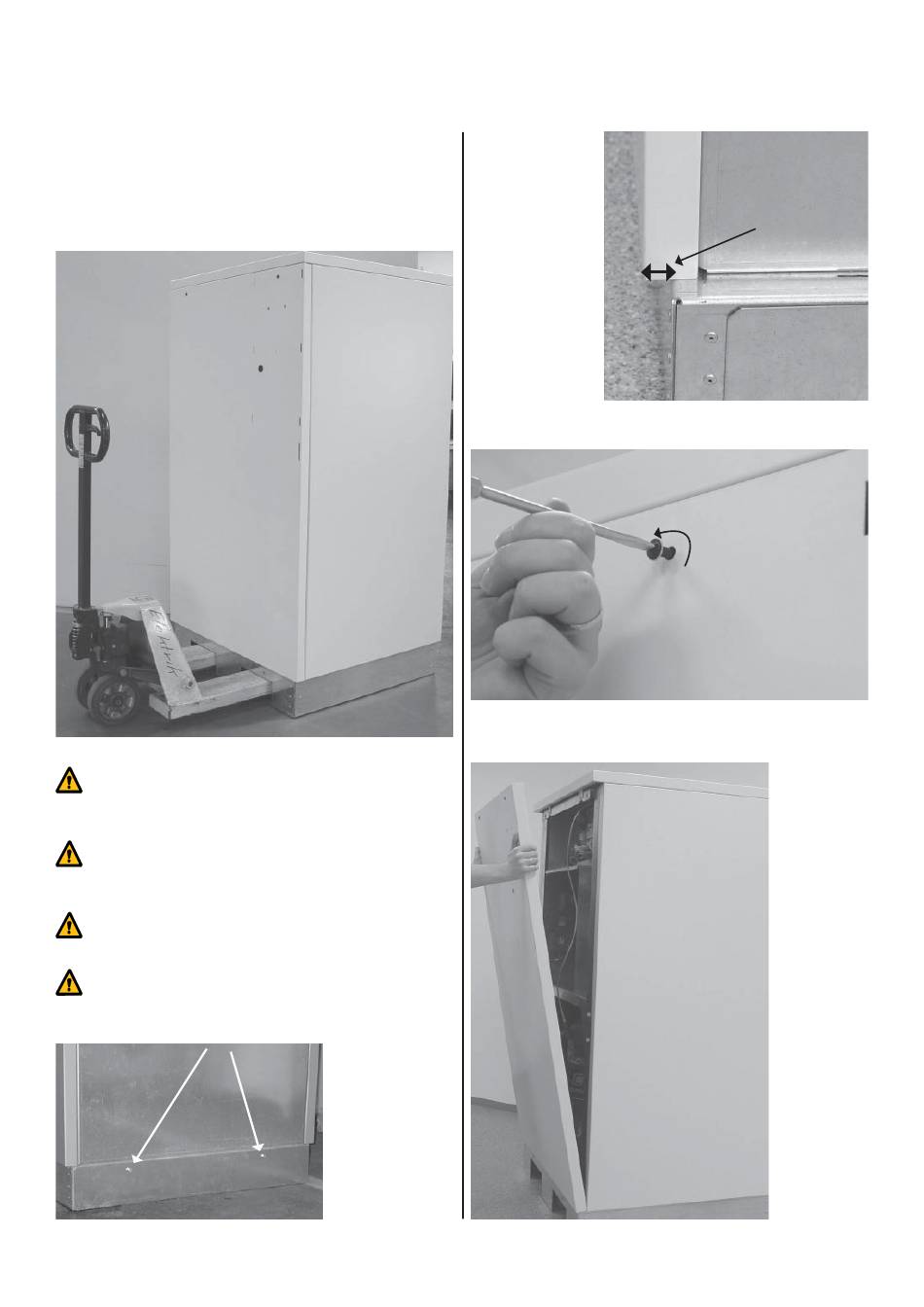

TRANSPORT
Transport with the lift truck
To avoid transport damages, the heat pump should be
transported to the fi nal destination entirely packed. After
removing the wooden supports, the lift truck may be shif-
ted directly into the two openings of the basement.
To avoid damages at the device, the inclination
of the heat pump during the transport must not
exceed 45° at the maximum!
The components and pipework of the refrigera-
tion circle, the heating side and the heat source
side must not be used for transport purposes.
Please observe the weight of the heat pump!
(See device information technical data sheet)
The two openings for the lift truck can be
closed with the enclosed cover plates (two
screws each).
4
Transport with the lift truck
Please ob-
serve: close
the transport
openings for
silencing!
- Subject to Technical Modifi cations -
To go through
narrow pas-
sages, remo-
ve the side
panels. This
will reduce
the total de-
vice width by
about 4 cm.
Only when reducing the device width, please proceed as
follows:
1. Open the quick release screws of the front plate by
turning 90° counterclockwise.
Each side panel
overlaps outside
by 2 cm
2. Lift the
front panel
and put it
down safely.
