General

Operative range
The heat pump is designed exclusively for the heating of
heating circuit water and domestic hot water. Considering
the application limits (see technical data), the heat pump
can be installed on new or existing heating installations.
Functioning of the brine / water heat pump
The heat pump converts the low temperature heat of the
earth to a higher temperature. Brine (a mixture of water
and antifreeze agent) is pumped through coils laid in the
earth and conducted to the evaporator of the heat pump.
The evaporator contains the liquid agent which boils
and vaporizes at low temperatures and low pressure.
The vaporizing heat is transferred from the brine. The
compressor sucks in the vaporized agent and compresses
it to achieve a higher pressure. The compressed gaseous
agent enters the condenser, where it condenses at high
pressure and high temperature. The condensation heat
is transferred to the heating circuit water with resultant
increase in temperature.
The energy transmitted to the heating circuit water
corresponds to the energy transmitted from the brine plus
the small amount of electric energy for the compressor.
Energy-saving use of the heat pump heating
installation
By choosing a heat pump heating installation, you have
acknowledged the need for environmental protection
by lower emissions and less consumption of energy. To
ensure your new heating system works as effi ciently as
possible, please note the following:
The heat pump heating installation must be
correctly sized and installed.ks.
Avoid unnecessarily high fl ow temperatures.
The lower the fl ow temperature at the heating
circuit water side is, the more effi ciently the heat
pump works.
The controller must be set correctly!!
Preferably open the window totally to renew the
air. Compared to constantly pivot-hung windows
opening outward, this kind of ventilation reduces the
energy consumption and saves money!
830109aGB/151024

Scope of Supply

•
Compact device with fully hermetic compressor and
all relevant safety components for refrigeration circuit
monitoring.
•
Integrated heat pump- and heating installation-controller.

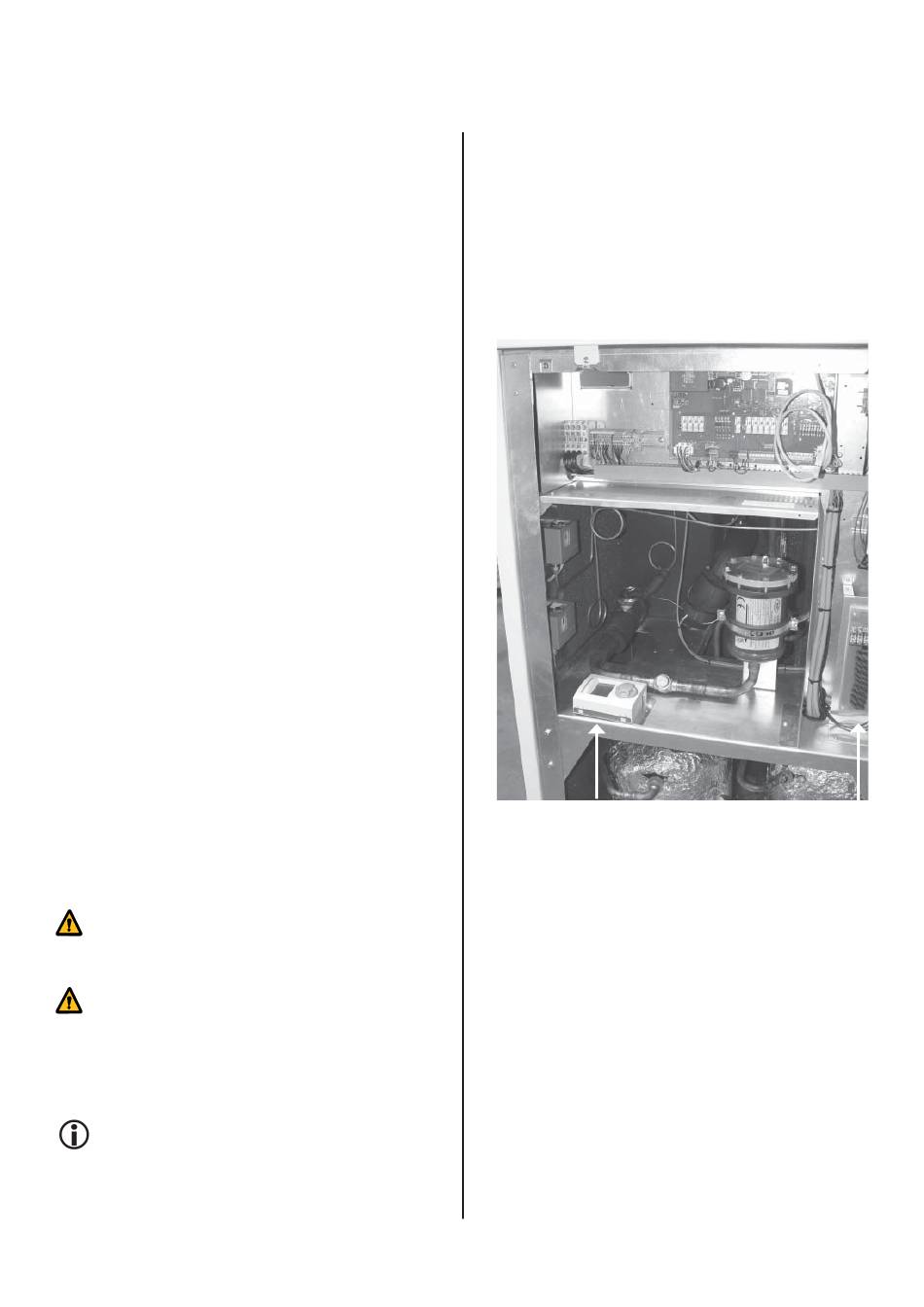

During the transport, the operating element of the heat
pump-controller is stored inside the device.)
•
Electric switch box with power contactor, phase guard and
soft starter
Controller Luxtronik
Enclosed in the supplement:
•
•
Furthermore, the pluggable front panel (wrapped in lami-
nation sheet), the two cover plates for the pedestal, an in-
struction manual for the device and an instruction manual
for the heat pump controller are included.
Further features
Sensors mounted in the device for capturing of the fl ow-
and return temperature of the heating circuit water. Sen-
sors for the monitoring of the heat source temperature and
the hot gas temperature of the refrigeration circuit.
- Subject to Technical Modifi cations -
SCOPE OF SUPPLY
The outdoor temperature sensor
4 screws + spring washers (for the two cover
plates for the pedestal))
GENERAL
