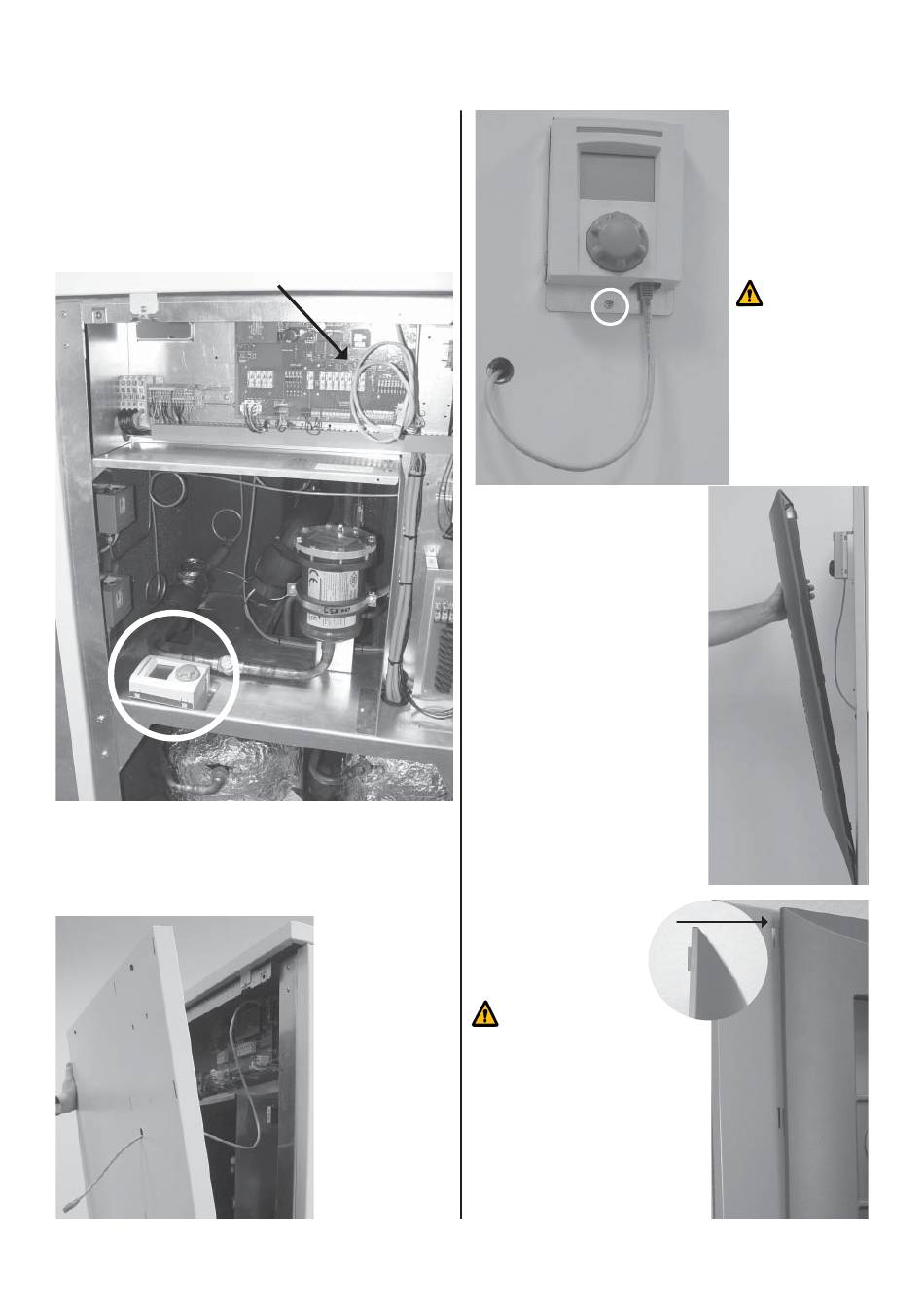

Assembly controller
During the transport, the operating element is stored
on the intermediate plate in the device.
The appropriate cable is stored top right and is already
clipped on the circuit board.
Slope the front plate towards the device. Pull the cable
outside through the nozzle and close the front plate.
830109aGB/151024
For securing the screen,
no tools are required!
It can be attached at the front
plate without a single screw.
Attach the screen to the lowest
fi xing lugs.
Secure the LOCK-NOZZLES on
one side bottom-up into the slots;
then secure the LOCK-NOZZLES
on the other side.
Once the upper lock-nozzles
are pressed on, the screen
is completely attached.
Note: when taking off the
screen, the lock-nozzles must
be released in reverse, i.e. top-
down.
The lower lock-nozzles are very
tight and must be released by
pressing fi rmly against the
centre of the screen to prevent
them from breaking!
- Subject to Technical Modifi cations -
THE OPERATING DEVICE
Hang up the ope-
rating device in the
square spaces,
screw it down and
put in the cable
from the bottom.
Switch off the
installation before
removing the cable
from the operating
device.
