Menu Group - Display; Fig 37. Indoor And Outdoor Display Colours - Cygnus 1 Ex Manual

Scan Length
Scan Direction
LOS Mode
Open B-Scan
File
Delete B-Scan
Files

Menu Group - Display

Units
Display Colours
Update Rate
Measurement
Hold
Brightness
Cygnus 1 Ex Operating Manual
Sets a length of a scan so an estimation of position can be
made. This expects the scan to made at a constant speed.
Sets the scan direction as shown on the B-Scan graph.
Left = Scanning to the Left
Right = Scanning to the Right
Sets what the B-Scan should do when the ultrasound
signal is lost (LOS = Loss of Signal).
Pause = pause the B-Scan
Continue = continue the B-Scan, logging zero thickness.
Select a B-Scan file to open and review the scan data.
Select B-Scan files to delete from the file system.
Select between mm and Inch units.
Select between Indoor and Outdoor colour schemes.
Indoor = Black background.
Outdoor = White background.

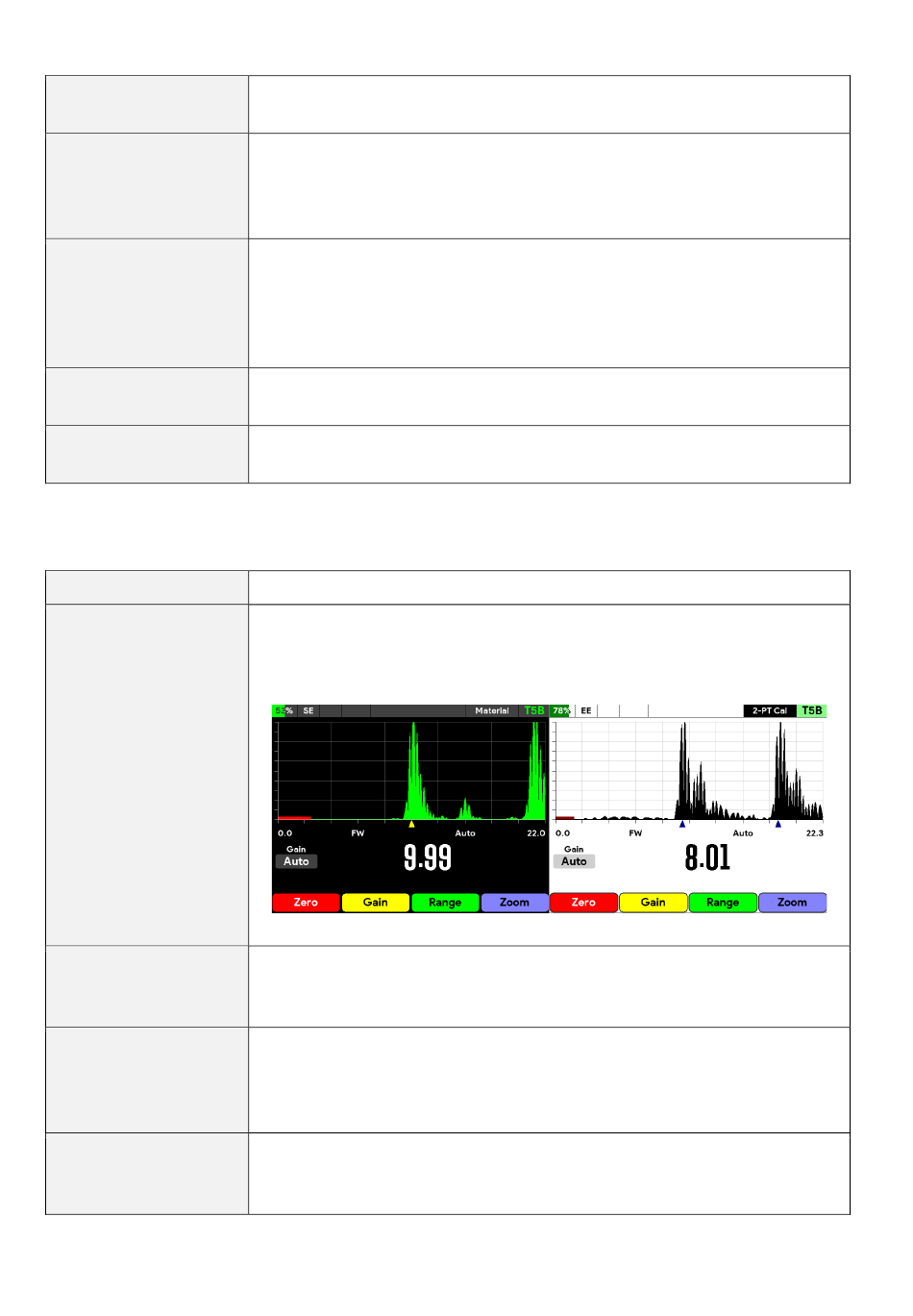

Fig 37. Indoor and Outdoor Display Colours

Set the display Update Rate, depending on the
measurement mode and gauge variant, this can be set
between 4, 8, 16 and 32 Hz (Fast Update Rate).
When set to Yes, will cause the last thickness
measurement value to remain displayed even when the
probe is taken away from the specimen.
The default value = Off.
Sets the display backlight brightness from 1 to 5 (low to
high.)
The default value = 2
