Summary of Contents for Cygnus M5-C2P
-
Page 1: Operating Manual

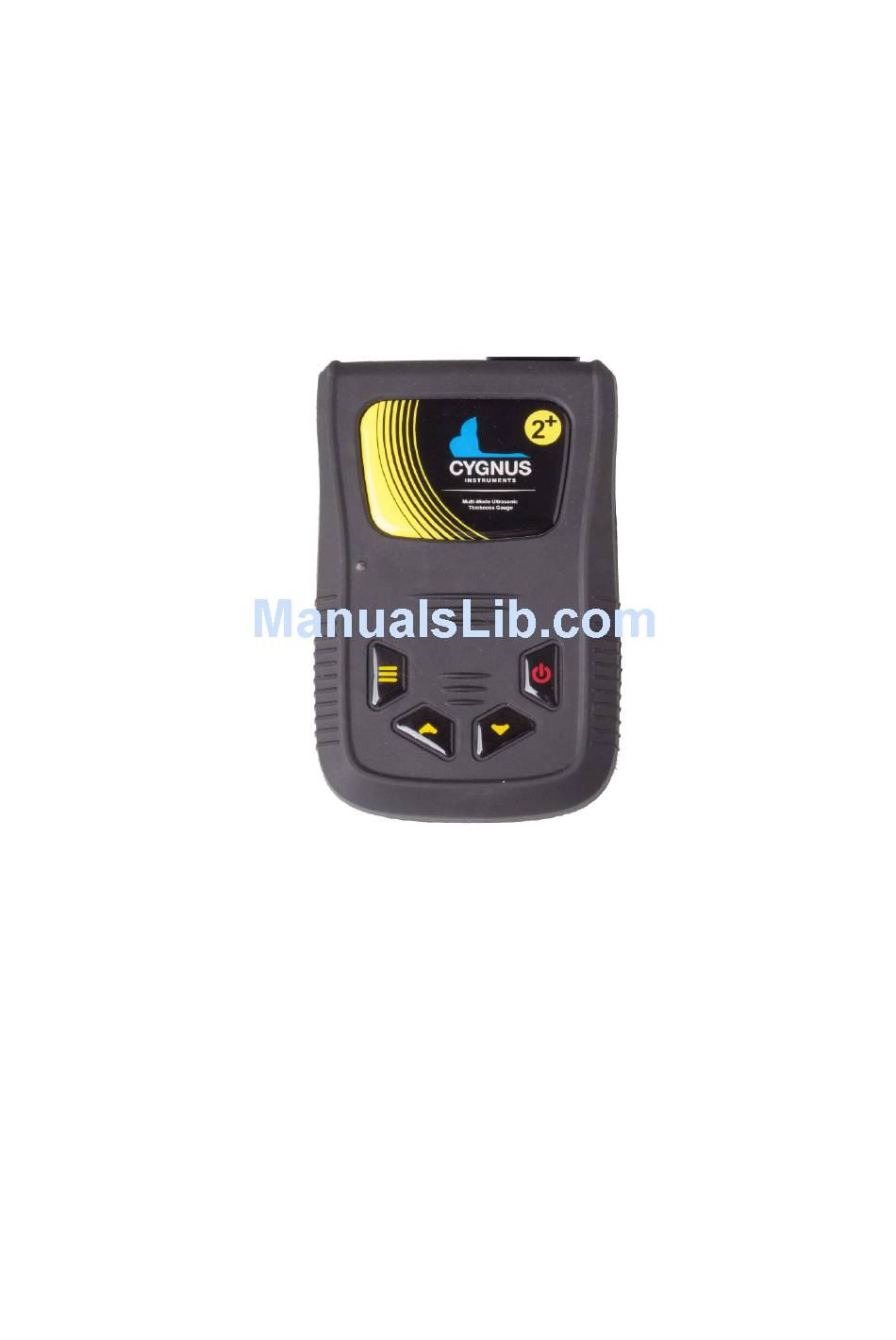

Cygnus 2 Multi-mode Ultrasonic Thickness Gauge Operating Manual Covers Gauge Model : M5-C2P Doc No. M5-CYG2P-M-01_Iss6.doc 18 October 2016... - Page 2 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc QUALITY POLICY STATEMENT Cygnus Instruments’ mission is to be a premier supplier of niche test and measurement instruments. To achieve this we will: Customers • Be dedicated to customer satisfaction by listening to direct and indirect feedback regarding our performance and product requirements in general.
-
Page 3: Table Of Contents
Echo-Echo Mode (EE) (Mode 3) ........... 17 Measuring Non-Steels ............17 Measuring Non-Metals ............18 Single Element Probes and Protective Membranes ..... 18 Summary of Cygnus Probes ..........21 Twin Element probes ............21 Single Element probes ............21 The ‘Probe Type’ Code ............22 5. - Page 4 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Measurement Stability Indication in SE & EE Modes ....26 Measuring Small Diameter Pipe & Tubes ........27 Battery Life ................. 28 Battery Level ..............28 Low Battery Warning ............28 6. Calibration ..............29 Why should I Calibrate my Thickness Gauge? ......
- Page 5 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Storage ................53 Repairs ................53 OLED Display ..............54 Returning the Gauge for Servicing .......... 54 Information ..............55 Technical Specifications ............55 Table of Sound Velocities ............59 Reading Conversions ............60 EU Declaration of Conformity ........61 Recycling and Disposal (EC Countries) ......
-
Page 6: Important Notice
The following important information must be read and understood by all users of Cygnus ultrasonic thickness gauges. The correct use of Cygnus ultrasonic thickness gauges requires identification of the correct equipment for the specific application coupled with an appropriately trained and qualified operator or technician. -
Page 7: Introduction
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc 2. Introduction Cygnus 2 Thickness Gauge The Cygnus 2 Ultrasonic Thickness Gauge is a rugged, handheld, battery-powered instrument designed for high-reliability thickness measurements in harsh environments using ultrasound. The gauge can be used with a choice of Ultrasonic Probes, selected to suit the material and thickness range to be measured. -
Page 8: Cygnus Instruments
Our philosophy is to work closely with each of our customers to provide a range of products specifically for each application. Cygnus Ultrasonic Thickness Gauges are designed to be simple to use and to withstand the harsh environments that they are intended for. -
Page 9: Gauge Kit Contents
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Gauge Kit Contents Basic Gauge Kit 1. Cygnus 2 Gauge 2. Operating Manual (in side pouch) 3. Neck Strap (in side pouch) 4. Accessory Pouch, containing; 3 x AA Batteries, Blue Couplant Gel. Kit supplied with Single Element Probe 1. -
Page 10: Gauge Preparation
Fitting the Batteries The gauge requires 3 x AA/LR6/UM3 Batteries. Cygnus supplies and recommends Duracell Alkaline batteries. The batteries are located behind a cover on the rear of gauge. The hand strap can be separated by a push-button buckle to gain access to the battery cover. -
Page 11: Connecting The Probe
This would not be covered by the warranty. Connecting the Probe The Cygnus probe lead uses a custom made cable that offers superior flexibility and resistance to oils and ultraviolet light. The cable will not stiffen after exposure to ultraviolet light. -
Page 12: Fitting The Hand Strap Or Belt Clip
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc To release the connector simply pull back on the connector body. DO NOT pull the cable. Fitting the Hand Strap or Belt Clip The gauge is supplied fitted with an adjustable elasticated Hand ® Strap. This can be easily removed and the optional Krusell belt clip attachment fitted instead. -
Page 13: Fitting The Neck Strap
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Optional Krusell® belt clip attachment parts. There are four Pozidrive screws holding the hand strap or Krusell® belt clip attachment in place. Two are under the battery cover. Fitting the Neck Strap The gauge is supplied with an adjustable Neck Strap. The ends of the neck strap clip onto two wire loops fitted to the gauge. - Page 14 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Wire loop fitted to the gauge body. Simply pass the loop through the hole in the gauge and back over the other end. The neck strap can then be clipped on to the loops.
-
Page 15: Selecting The Right Probe
The performance of any thickness gauge, and its ability to get a reliable measurement depends on selecting the right ultrasonic probe for the application and conditions. Cygnus gauges are therefore offered with a selection of probes suitable for most thickness gauging applications. -
Page 16: Measurement Modes Explained And Compared
This method has been used in all Cygnus gauges since the late 1970s. Multiple echo mode will ignore surface coatings (Through Coating mode), there is no need to remove the paint to take a measurement. -
Page 17: Echo-Echo Mode (Ee) (Mode 3)
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Single echo measurements use a twin element (twin element) probe, because there are two elements angled to a focal point there is a v-path error introduced. However this v-path error is mostly corrected by the gauge, and furthermore by performing a two point calibration. -
Page 18: Measuring Non-Metals
• Foams • Composites Single Element Probes and Protective Membranes All Cygnus single element probes have a soft face and are therefore fitted with a Polyurethane Membrane which provides better contact on rough surfaces and protects the probe face from... - Page 19 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Check the membrane regularly as it is important the membrane is changed as soon as it shows any signs of wear. Probe Body Locking Ring Polyurethane Membrane Knurled Ring Single Element Probe Membrane Parts. Single Element Probe Membrane Locking Key...
- Page 20 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Changing the Protective Membrane on Single element Probes Unscrew the Knurled Ring from the end of the Probe. Use the Membrane Key to unscrew the Locking Ring from inside the Knurled Ring. The old membrane can then be removed and discarded.
-
Page 21: Summary Of Cygnus Probes
70°C (160°F). For measuring higher temperatures Teflon membranes are available and suitable for surface temperatures up to 150°C (300°F) with intermittent contact. Contact Cygnus instruments to order Teflon membranes. When measuring high temperatures limit the time the probe is in contact with the hot surface to less than 4 seconds and ensure the probe has sufficient time between measurements to cool down. -
Page 22: The 'Probe Type' Code
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc 13mm 3.5 MHz 2 to 150 mm Coated metals 13mm 5.0 MHz 1 to 50 mm Coated metals 5.0 MHz 1 to 50 mm Small diameter tubes Thin metals Coated metals The ‘Probe Type’ Code... -
Page 23: Gauge Operation
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc 5. Gauge Operation Gauge Controls Probe OLED Connection Display End view of gauge Power / Menu Cancel Select Keys Front view of gauge... -
Page 24: Turning The Gauge On
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Turning the Gauge On Press the Power key Cygnus Instruments name is displayed The model and serial number are displayed The firmware & hardware version are displayed The gauge is ready to use Turning the Gauge Off Press &... -
Page 25: Taking Thickness Measurements
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Taking Thickness Measurements Taking ultrasonic thickness measurements is a straight forward process that involves first making sure the surface is clean and prepared, applying an ultrasonic couplant gel then placing the probe on the surface and observing the display for the measurement. -
Page 26: Echo Indicators In Multiple Echo Mode
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc When a thickness measurement is displayed the display also shows the Measurement Mode and the Units. SE = Single Echo mode EE = Echo-Echo mode ME = Multiple Echo mode Echo Indicators in Multiple Echo Mode... -
Page 27: Measuring Small Diameter Pipe & Tubes
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc If the ultrasound signal is poor or erratic then the thickness value may remain hollow – thus indicating the measurement may not be reliable. Initial measurements will be displayed as hollow numbers. If the measurement remains stable for 2 consecutive seconds then the measurement will change to solid. -
Page 28: Battery Life
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Battery Life The gauge will operate continuously for approximately 10 hrs when fitted with Duracell Alkaline 1500 mA/hr batteries. Battery Level When not displaying a thickness measurement the display shows a battery level gauge. Note. The battery level gauge moves slowly up and down the display to avoid display “burn in”. -
Page 29: Calibration
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc 6. Calibration Why should I Calibrate my Thickness Gauge? Ultrasonic thickness gauges measure time in order to measure the thickness of the material being tested. The rely on the principal that sound travels through a material at a constant velocity or speed. -
Page 30: Calibration Options
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Calibration Options The Gauge is supplied tested and calibrated. The Gauge will have been calibrated to measure thickness through steel (grade S355JO) with a velocity of sound of 5920 m/s. Either a 15mm or 1/2” Test Block is supplied with the kit so the Gauge can be quickly checked for correct operation. - Page 31 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Place the Probe on the sample and verify the gauge can get a thickness value. Press the Menu key Press the Up Select key to get to the Calibrate Single Point item Press the Menu key to start...
-
Page 32: Two Point Calibration
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Two Point Calibration The Two Point Calibration option is only available in Single Echo and Echo-Echo modes. Two point calibration allows the gauge to be calibrated against two reference thicknesses of the same material, one at the minimum (thin) thickness range the other at the maximum (thick) thickness range. - Page 33 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Wipe clean the step wedge then add some fresh couplant to the step wedge Place the Probe on the sample and verify the gauge can get a thickness value. Press the Menu key Press the Up Select key to get to...
-
Page 34: Probe Zero (Twin Element Probes)
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc ...use the Up and Down Select keys to adjust the thickness to the required value. When the correct measurement is displayed press the menu key Next measure the Thin sample – Minimum thickness. While holding the probe firmly... -
Page 35: Starting A Probe Zero From The Main Menu
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc a Probe Zero when first turned on or when a twin element probe is connected. If the probe gets significantly warmer during use this can cause a shift in the zero position and thus introduce small errors in the thickness measurement. -
Page 36: Setting The Velocity Of Sound
• The probe face must be clean and in the air. • Are you using a non-Cygnus probe? Setting the Velocity of Sound The gauge uses the Velocity of Sound value to calculate the material thickness value. - Page 37 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc A list of velocity of sound values for common material can be found on page 59. Press the Menu key Press the Up Select key to get to the Velocity item Press the Menu key to change...
-
Page 38: Gauge Setup
Perform a Single Point Calibration Perform a Single Point Calibration (twin element probes only) Turn the Deep Coat function on or off (single element probes only) Set the measurement Resolution Deep Coat must be enabled – contact Cygnus for instructions. -
Page 39: Settings Are Saved With The Probe Type
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Set measurement Units Set the Vibrate option Set the Display Rotation option To exit the menu press the Power / Cancel key once. If you want to change or select the item currently displayed simply press... -
Page 40: Selecting The Probe Type
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc • Measurement mode • Units • Resolution • Velocity of sound • Calibration • Deep Coat (if a single element probe) Selecting the Probe Type The Probe Type must be set to the probe connected to it. If the wrong probe is selected the gauge will not measure accurately if at all. -
Page 41: Automatic Probe Detection
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Press the Menu key to change the probe type Use the Up and Down Select keys to select from Auto or a specific probe type When done press the Menu key to save the new value. -
Page 42: Measurement Units
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc When Probe Type = Auto and a probe is connected a message will be displayed informing what type of probe was detected; Observe this message and check it matches the probe connected to the gauge. -
Page 43: Resolution Setting
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc When done press the Menu key to save the new value. Or press the Power / Cancel to exit without saving. Resolution Setting The gauge can display thickness measurements in three resolution settings: • 0.1 mm 0.005 inch... -
Page 44: Deep Coat Function (Multiple Echo Mode)
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Press the Menu key to change the value Use the Up and Down Select keys to switch from mm to Inch When done press the Menu key to save the new value. Or press the Power / Cancel to exit without saving. - Page 45 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc coatings like rubber or bitumen don’t transmit ultrasound very well. Deep Coat is only available in Multiple Echo mode. Using Deep Coat will not affect the calibration. Turn Deep Coat Off when NOT measuring through thick coatings otherwise this may cause inaccurate measurements.
-
Page 46: Vibrate Alert Function
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Vibrate Alert Function The gauge can vibrate to alert the user when a thickness measurement has been made. This feature can be turned on or off as required. In Single Echo and Echo-Echo measurement modes the vibrate alert will be triggered when a stable measurement is detected. -
Page 47: Display Rotate Function
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc When done press the Menu key to save the new value. Or press the Power / Cancel to exit without saving. Display Rotate Function If the gauge is worn on a belt using the Krusell belt clip the end display will be upside down. - Page 48 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc no = don’t rotate. yes = rotate 180 degrees When done press the Menu key to save the new setting. Or press the Power / Cancel to exit without saving.
-
Page 49: General Points On Thickness Gauging
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc 8. General Points On Thickness Gauging On very rough surfaces and especially if both sides are badly corroded, it is often necessary to move the Probe around to locate a back wall reflector. Sometimes a slight rocking movement can help find reflectors which are otherwise impossible. -
Page 50: Troubleshooting
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc 9. Troubleshooting The Gauge will not Switch On • Are the batteries exhausted? • Check the batteries are inserted correctly. Difficulty obtaining a Reading • Check that the Probe lead is properly connected to both Probe and Gauge. - Page 51 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc • When measuring on very heavily corroded metal with single element probes the gauge uses more power searching for a multiple echo match – this can significantly reduce battery life. So if you are frequently measuring on very heavy corrosion consider using a twin element probe as this will require less power to get measurements.
-
Page 52: Updating Your Gauge
Before updating your gauge note the model and serial number of the gauge (see Turning the Gauge On on page Error! Bookmark not defined.). You can then check on the Cygnus website if your gauge has the latest firmware version, and if not proceed to download the update software. -
Page 53: Care And Servicing
Storage Do not store the Gauge in temperatures greater than 35˚C (95˚F). Repairs There are no user serviceable parts inside the Gauge. Therefore all repair work should be carried out by Cygnus Instruments or by an Authorised Cygnus Service dealer. -
Page 54: Oled Display
Avoid leaving the gauge in direct sunlight as the high temperatures generated can shorten the life of the OLED display. Returning the Gauge for Servicing A full Manufacturer’s Factory Service is available from Cygnus Instruments. The Complete Kit should always be returned for Service or Repair, including all Probes and Leads. -
Page 55: Information
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc 12. Information Technical Specifications Cygnus M5-C2P Technical Specifications General Attributes Size 84 mm x 130 mm x 35 mm (W x H x D) (3.3 in x 5.1 in x 1.4 in) Weight Gauge with batteries 300 g (10.5 oz.) Power Supply 3 x AA / R6 Batteries. - Page 56 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Cygnus M5-C2P Technical Specifications Measurement Ranges Single element 0° probes in Multiple Echo mode; (in steel) S2C/D probe 3 to 250 mm [0.120 in. to 10.00 in.] S3C probe 2 to 150 mm [0.080 in. to 6.000 in.]...
- Page 57 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Cygnus M5-C2P Technical Specifications Type of Display OLED Monochrome Display Size 128 x 32 Pixels. 25.58 mm (W) x 6.38 mm (H) Display Information Digital Thickness Value. Settings. Battery Level. Transmitter Shape of Pulse Square...
- Page 58 Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Specifications are subject to change for product improvement.
-
Page 59: Table Of Sound Velocities
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Table of Sound Velocities Velocities will vary according to the precise grade and processing conditions of the material being measured. This table is included as a guide only. Wherever possible, the Gauge should always be calibrated on the material under test. -
Page 60: Reading Conversions
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc Stainless Steel 304 5664 0.2229 0.956 Stainless Steel 314 5715 0.2250 0.965 Stainless Steel 316 5750 0.1163 0.971 3320 0.1307 0.561 Titanium 6100 - 6230 0.2402 – 0.2453 1.030 – 1.052 Tungsten Carbide 6660 0.2622 1.125... -
Page 61: Eu Declaration Of Conformity
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc 13. EU Declaration of Conformity... -
Page 62: Recycling And Disposal (Ec Countries)
DO dispose of the complete product including cables, plugs and accessories in the designed WEEE collection facilities. This product may also be returned to the agent or manufacturer who supplied it for safe end-of-life disposal. Cygnus Instruments Ltd registration number for The WEEE Directive is WEE/HE1274RU. -
Page 63: Warranty Information
6. Except in respect of death or personal injury caused by the negligence of Cygnus, Cygnus shall not be liable to the Purchaser or to any other person by reason of any representation (unless fraudulent), or any implied warranty, condition or other term,... -
Page 64: Index
Cygnus 2+ Operating Manual M5-CYG2P-M-01_Iss6.doc 16. Index Automatic Power Off, 24 Small Pipes, 27 Batteries Stability, 26 Fitting, 10 Units, 42 Level, 28 Metric, 42 Life, 28 Multiple Echo, 16 Low Battery Warning, 28 Echo Bars, 26 NiCad, 10 Neck Strap, 13... - Page 65 ALPINE C O M P O N E N T S Postal Address Alpine Components Ltd Innovation Centre, Highfield Drive Churchfields St. Leonards-on-Sea TN38 9UH United Kingdom Telephone 01424 858118 Website Address www.alpine-components.co.uk "Alpine Components" is the abbreviated trading name for "Alpine Components Limited" The company has been trading since 1991 and was incorporated on 13/11/2006 in the United Kingdom Company Registration Number: 05996485 VAT Number: GB583598190...
