Charging The Battery; Removing The Battery Pack; Charging; Fig 3. Cygnus 1 Ex Probe Connector - Cygnus 1 Ex Manual

It is safe to unplug and replace Cygnus Ex Ultrasonic Probes in an
Explosive Atmosphere.

Charging the Battery

The battery pack must only be removed and charged in a Safe
Area.
The battery pack must only be charged with the charger
supplied with the kit.
The Charger comprises of a mains plug-in Charger and Cradle to hold the battery.

Removing the Battery Pack

• Use a ball-end SW2.5mm hexagonal screwdriver to loosed and unscrew the
battery securing screw until the battery can be lifted out from the instrument
body.

Charging

The battery pack is fitted to the Charging Cradle, there is an alignment lug on the
cradle that fits into a recess in the battery, then the battery just drops onto the
cradle and is secured in place with the retaining screw using a SW2.5mm hex
screwdriver.
Cygnus 1 Ex Operating Manual

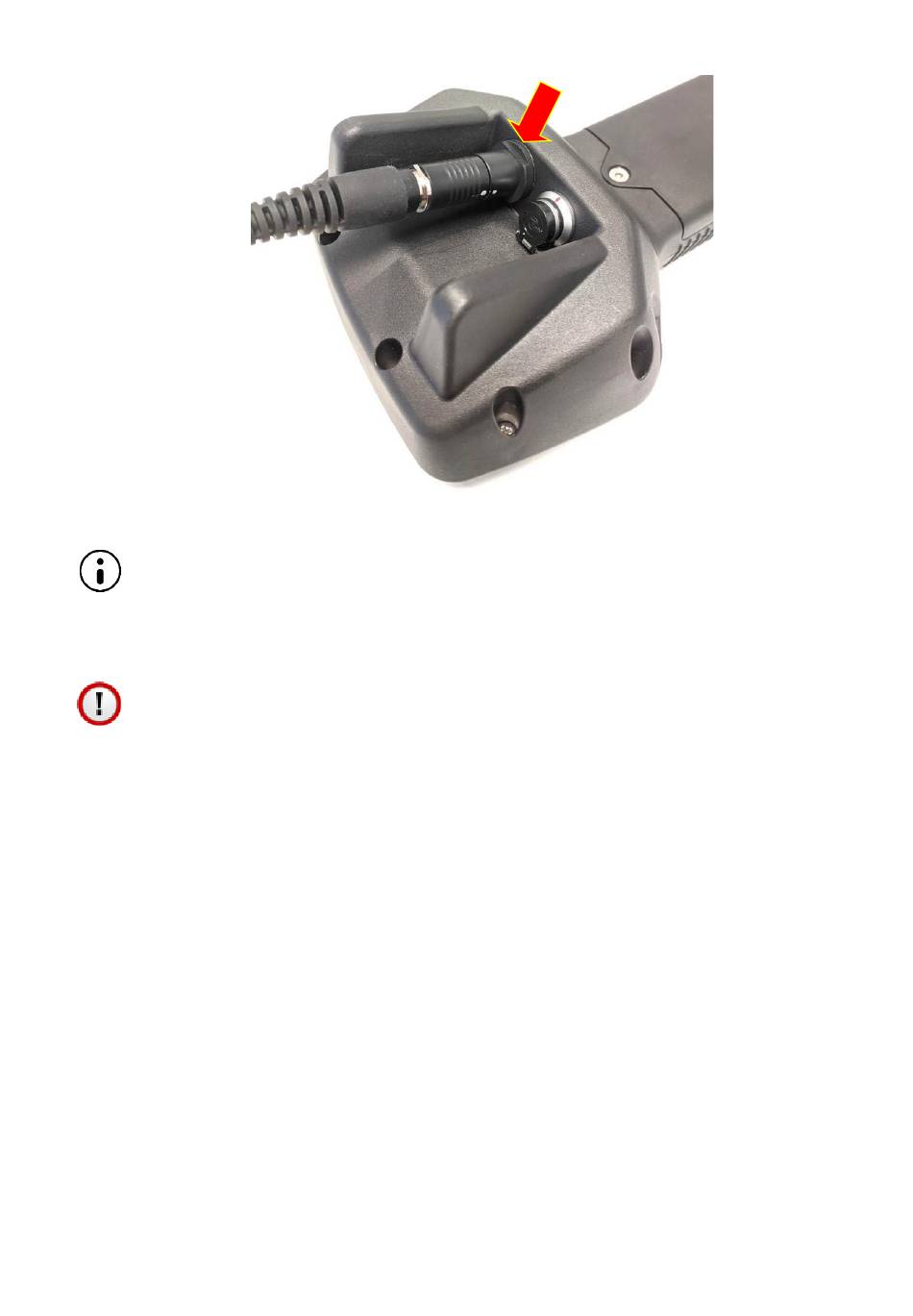

Fig 3. Cygnus 1 Ex Probe Connector.
Page 15 of 91
