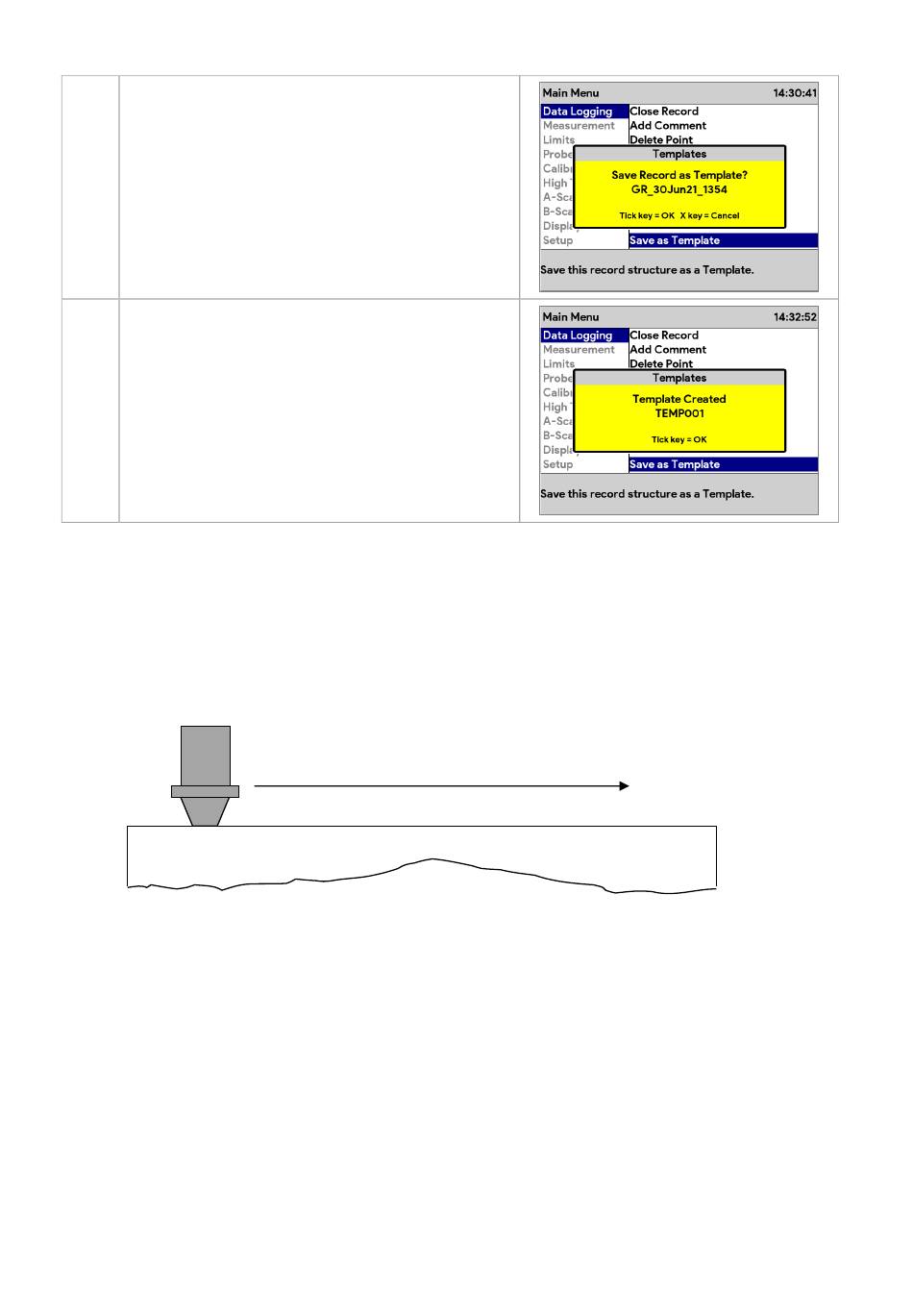

B-Scans - Cygnus 1 Ex Manual

2. From the Menu, select Data Logging,
then Save a Template, then press
the √ key.
3. Give the template a meaningful name
so you can identify it easily.

B-Scans

The B-Scan feature can be used to take a series of continuous thickness
measurements and display the results graphically to represent a cross section
through the material.
The results of the scan include a minimum thickness value. A cursor can also be
positioned to pinpoint individual thickness measurements and log these to a data
logger record if required. The B-Scan data is saved to a file in the gauges file
system.
For the best results the probe must remain in continuous contact with the surface
and be moved at a constant rate – in practice however this can be tricky to achieve
especially on rough surfaces.
Cygnus 1 Ex Operating Manual
Probe
Page 64 of 91
Scan Direction
Material being Measured
