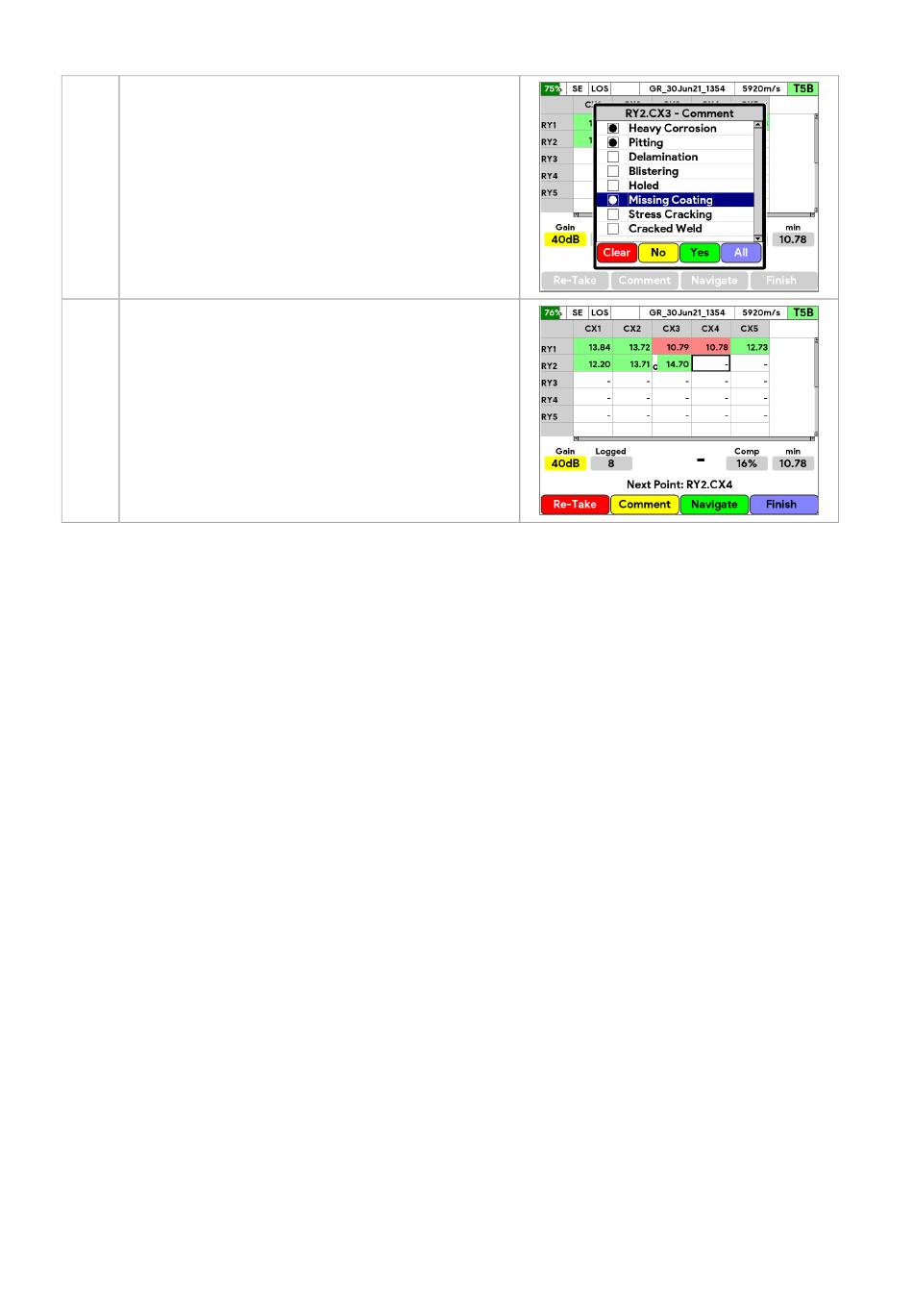

3. Measurement points with comments
have a small
the measurement cell.

Adding Radial Points

Both Linear and Grid Records can have a set of Radial Points added to any
thickness measurement to further detail an area of interest or heavy corrosion. You
can add up to 12 additional thickness measurements 'around' the principal
measurement in a 'clock-face' pattern.
• If you delete or re-take a measurement that has Radial Points, its radial
points will be deleted.
• Radial Point values will be included when calculating the "minimum"
thickness value in the whole record.
For example, when logging thickness measurements on a pipe, tank or plate it is
sometimes necessary to add additional measurement points radially around a badly
corroded or thin area to detail the extent of the thinning or corrosion.
