Measurement Freeze Feature; A-Scan Screen - Cygnus 1 Ex Manual

2. If the measurement remains stable for 2
consecutive seconds, then the
measurement will change to black or green.
Stable is defined as; the thickness measurement changing no more than + or - the
Resolution setting.
Example.
The Resolution is set to 0.05mm, therefore the thickness measurement must
not change by more than +0.05mm or
-0.05mm for 2 seconds or more to be "stable".
The Resolution is set to 0.002", therefore the thickness measurement must not
change by more than +0.002" or
-0.002" for 2 seconds or more to be "stable".

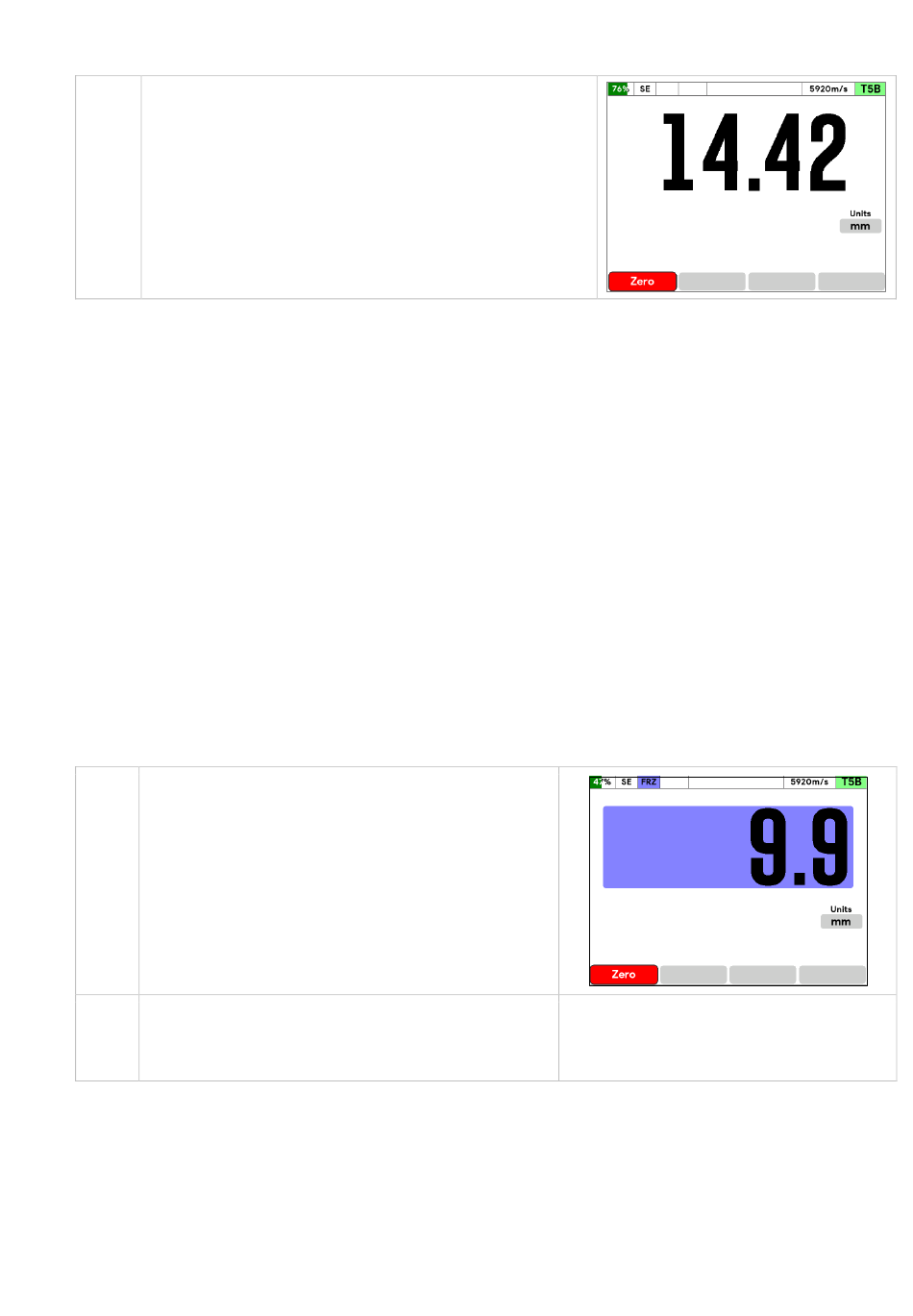

Measurement Freeze Feature

The thickness measurement can be 'frozen' by pressing the Freeze key while in
any measurement screen.
1. Press the Freeze key to hold the
thickness measurement.
2. Press the Freeze key to un-freeze the
thickness measurement.

A-Scan Screen

To help ensure measurements are reliable in Single Echo and Echo-Echo
measurement modes the A-Scan can be used to visually verify the thickness
Cygnus 1 Ex Operating Manual
Page 37 of 91
