• B-Scans can be auto-paused when the ultrasound signal is lost – LOS Mode.
• B-Scans have a measurement Scan Range to scale the Y axis.
• B-Scans have an optional Scan Length to scale the X axis.
• B-Scans can operate at 32Hz rate and hold up to 5,000 measurement points.
• The minimum thickness point in the scan is marked with a red line.
• B-Scans can be saved to a file.
• B-Scans can be exported to a datalogger record.
• B-Scans can be reviewed on screen to find thickness measurements.

Performing a Scan

Before starting a scan, setup the probe and measurement options so you are able
to take spot thickness measurements as required. Next set any of the B-Scan
menu options as required.
1. To start a new B-Scan, navigate to the
B-Scan measurement screen, then
press the Start function key.
Cygnus 1 Ex Operating Manual

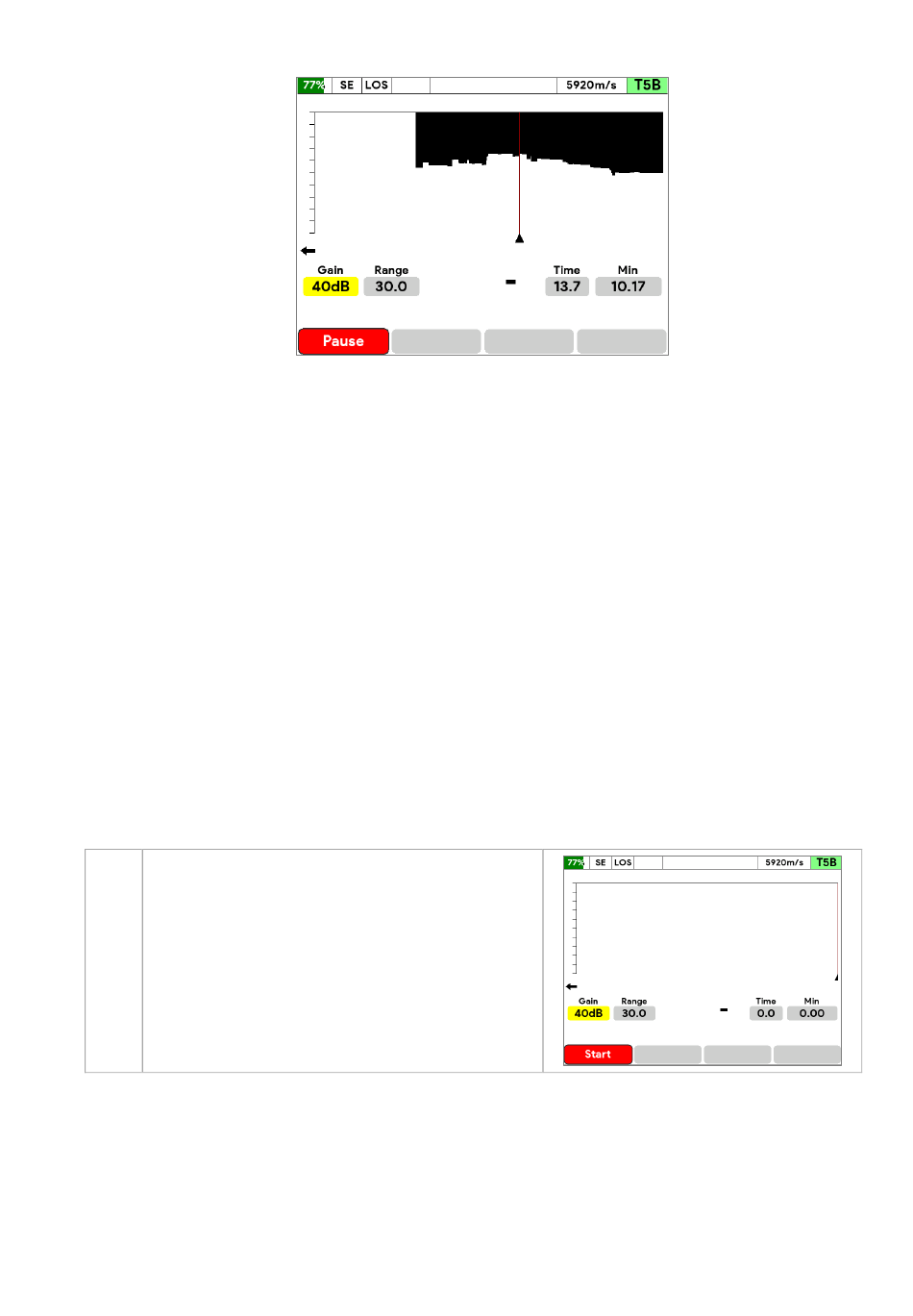

Fig 32. B-Scan Example.
