Loading A B-Scan - Cygnus 1 Ex Manual

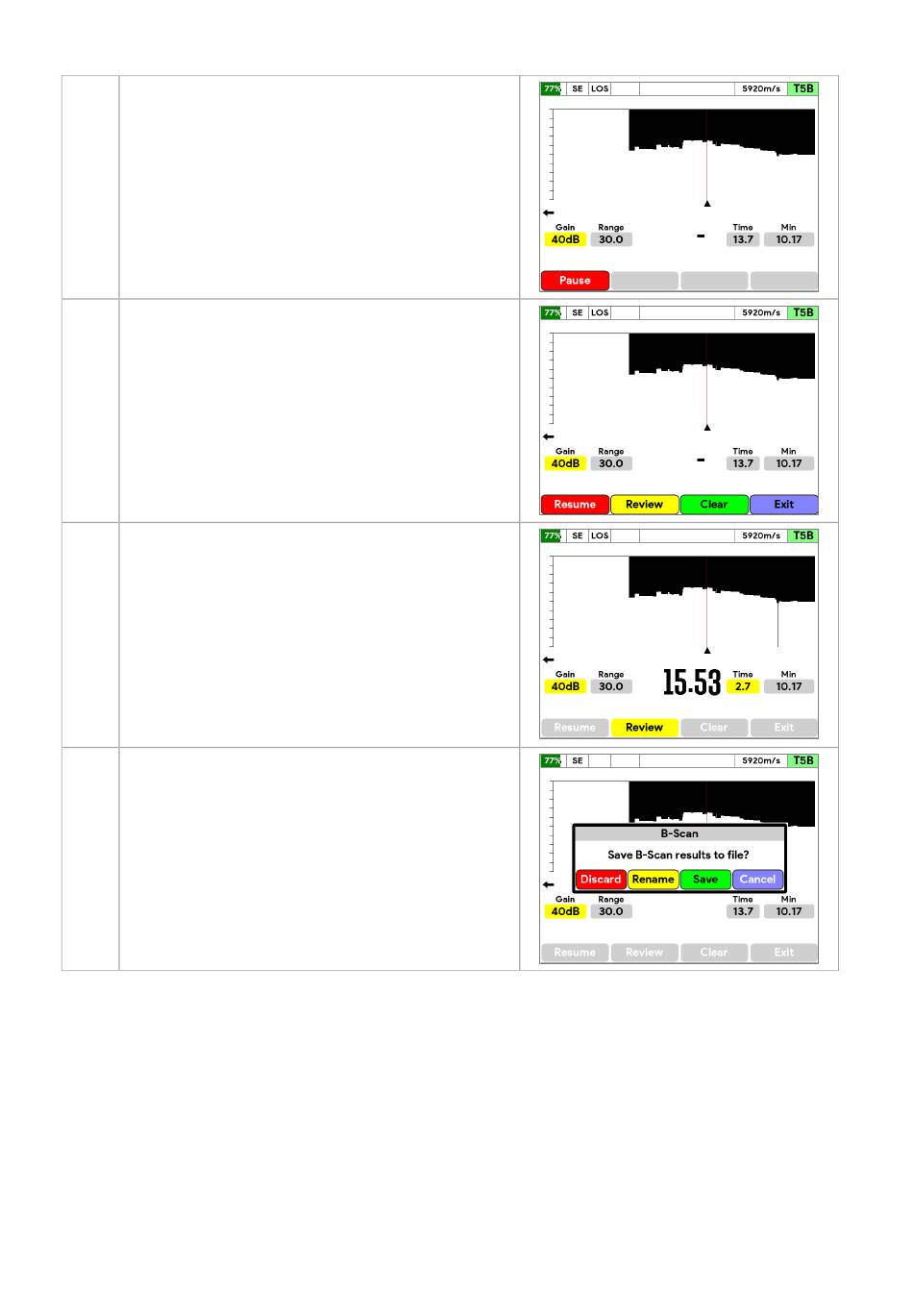

2. Place the probe and start measuring,
carefully moving the probe across the
surface at a constant speed. The scan
trace will start to build.
3. Lifting the probe off the surface will
pause the scan (if LOS Mode is set to
Pause).
You can press the Clear function key
to clear the scan data and start again.
4. Pressing the Review function key will
allow a cursor to be moved across the
trace using the navigation keys, the
thickness measurement at the cursor
point will be displayed.
Press the Review function key to exit
review mode.
Pressing the Exit function key will
5.
prompt to discard, rename or save the
B-Scan data.

Loading a B-Scan

You can load a B-Scan file and review the scan data.
