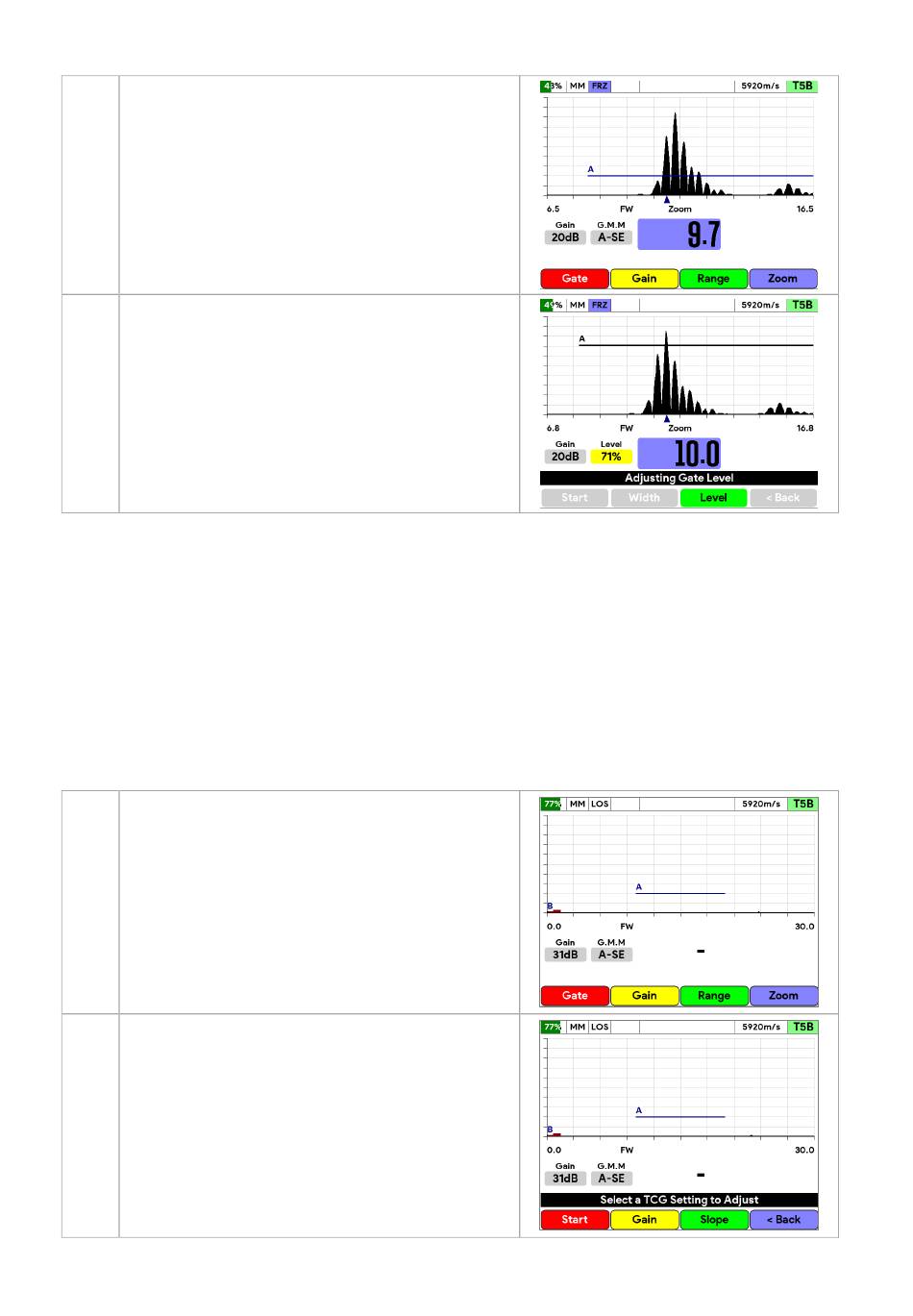

1. The Gate Level is set to 20%
The signal is then Frozen.
2. The Gate Level is now adjusted to
71%, and the Gate Trigger point now
moves as its triggers by a later ½
cycle. The measurement value
increases to 10.0mm.
Note. You cannot adjust the Gain Values and expect to see a change in signal in
Dynamic Freeze mode, as changes to Gain require a new UT signal to be fed
through the pulser-receiver circuit.

Adjusting Gain and TCG

You can adjust the Gain and TCG settings either from the Menu or using the
function keys on the A-Scan measurement screen. When using the function keys,
you can dynamically adjust the Gain settings and observe on the A-Scan.
1. To adjust a Gain, in the A-Scan
measurement screen press the Gain
function key.
2. Use the function keys to select and
adjust a Gain setting.
Start = TCG Slope Start Position
Gain = Gain id dB
Slope = Gain Slope in dB/us
Back = Back to Gate select.
