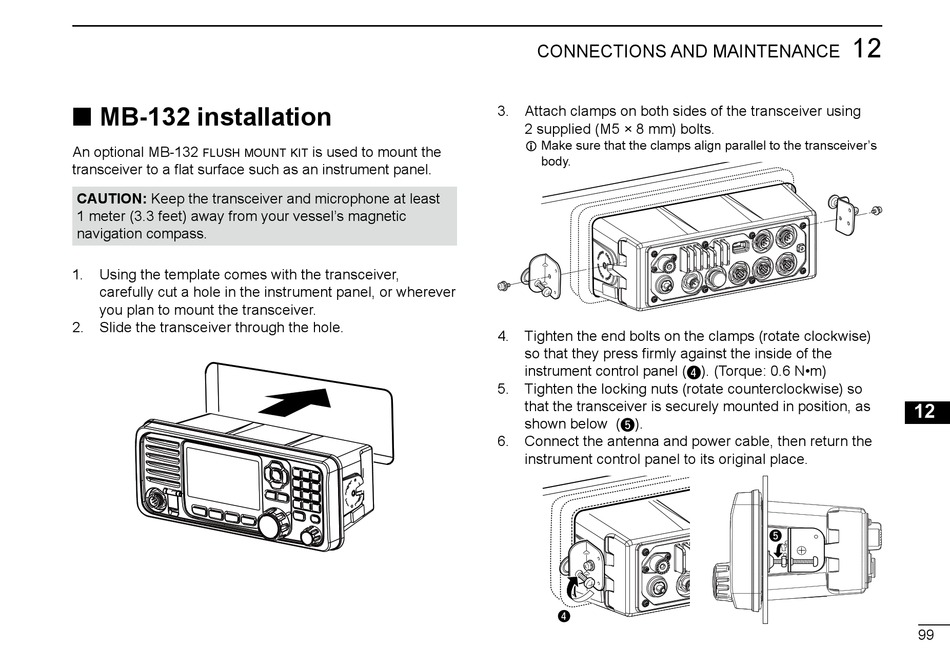

■ MB-132 installation
An optional MB-132
flush mount kit
transceivertoaflatsurfacesuchasaninstrumentpanel.
CAUTION: Keep the transceiver and microphone at least
1 meter (3.3 feet) away from your vessel's magnetic
navigation compass.
1. Using the template comes with the transceiver,
carefully cut a hole in the instrument panel, or wherever
you plan to mount the transceiver.
2. Slide the transceiver through the hole.
is used to mount the
CONNECTIONS AND MAINTENANCE
3. Attach clamps on both sides of the transceiver using
2 supplied (M5 × 8 mm) bolts.
L Make sure that the clamps align parallel to the transceiver's
body.
4. Tighten the end bolts on the clamps (rotate clockwise)
sothattheypressfirmlyagainsttheinsideofthe
instrument control panel ( r ).(Torque:0.6N•m)
5. Tighten the locking nuts (rotate counterclockwise) so
that the transceiver is securely mounted in position, as
shown below ( t ).
6. Connect the antenna and power cable, then return the
instrument control panel to its original place.
r
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
t
99
