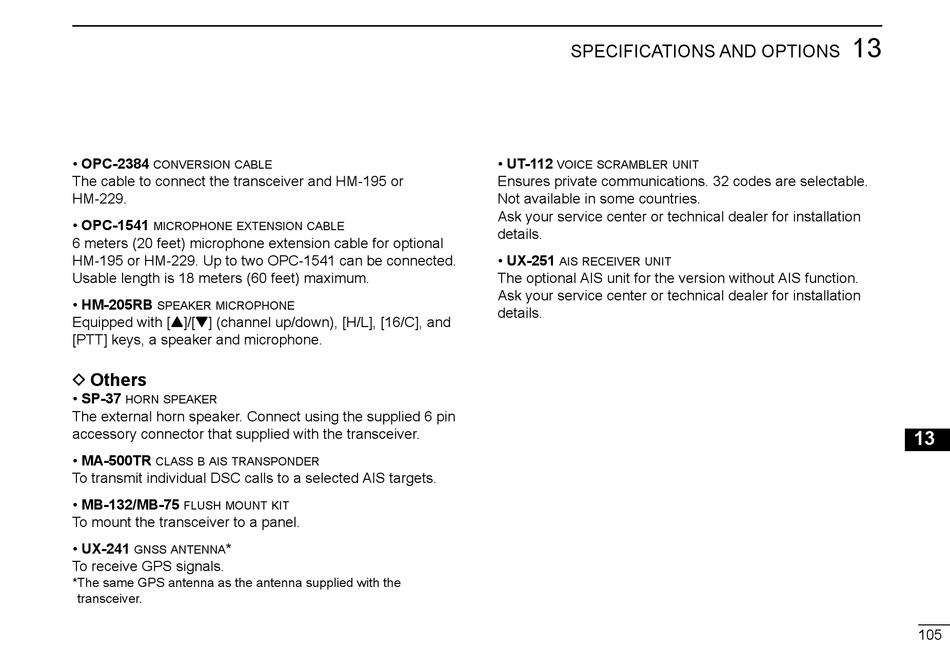

Icom IC-M605E Instruction Manual page 115

• OPC-2384
conversion cable
The cable to connect the transceiver and HM-195 or
HM-229.
• OPC-1541
microphone extension cable
6 meters (20 feet) microphone extension cable for optional
HM-195 or HM-229. Up to two OPC-1541 can be connected.
Usable length is 18 meters (60 feet) maximum.
• HM-205RB
speaker microphone
Equipped with [Y]/[Z] (channel up/down), [H/L], [16/C], and
[PTT] keys, a speaker and microphone.
D Others
• SP-37
horn speaker
The external horn speaker. Connect using the supplied 6 pin
accessory connector that supplied with the transceiver.
• MA-500TR
class b ais transponder
To transmit individual DSC calls to a selected AIS targets.
• MB-132/MB-75
flush mount kit
To mount the transceiver to a panel.
• UX-241 *
gnss antenna
To receive GPS signals.
* The same GPS antenna as the antenna supplied with the
transceiver.
SPECIFICATIONS AND OPTIONS
• UT-112
voice scrambler unit
Ensures private communications. 32 codes are selectable.
Not available in some countries.
Ask your service center or technical dealer for installation
details.
• UX-251
ais receiver unit
The optional AIS unit for the version without AIS function.
Ask your service center or technical dealer for installation
details.
